Eastron SDM630MCT-MBUS MID, 1/5A Mbus input, three-phase, pulse outputs

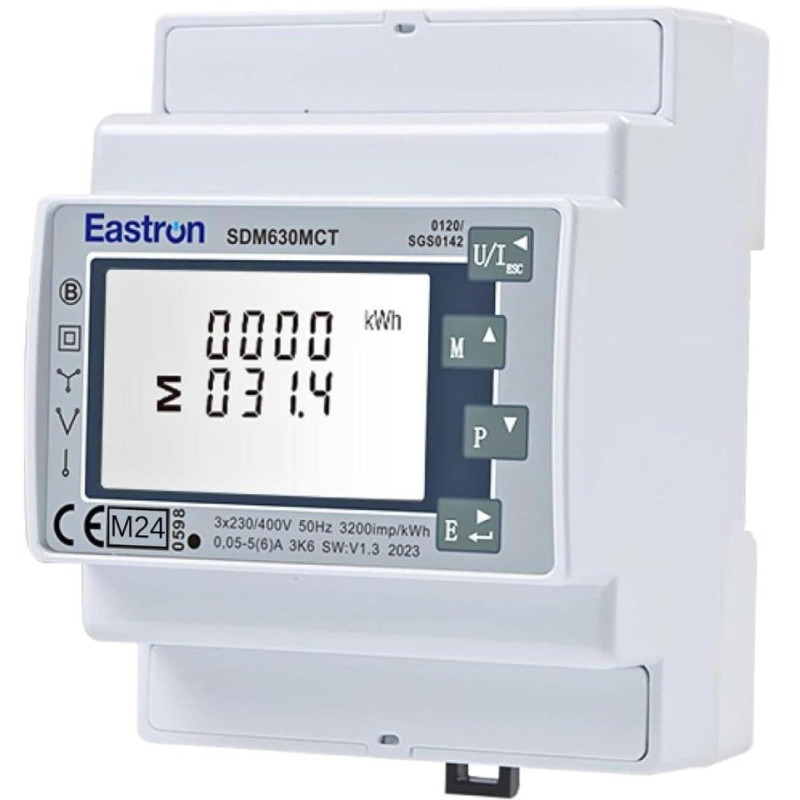

Eastron SDM630MCT-MBUS MID

Smart electricity meter for 1-phase and 3-phase measurement . The measured parameters include voltage (V), frequency (Hz), current (A), power (kW/kVA/kVAr), import, export and total energy (kWh/kVArh). The device can also measure maximum current and power consumption. It is also equipped with pulse outputs for measuring consumed energy, which allows easy monitoring and data recording by external devices.

This device measures and displays the characteristics of single-phase two-wire (1p2w), three-phase three-wire (3p3w) and three-phase four-wire (3p4w) current in the network.

The electricity meter meets strict European standards and requirements of the Measuring Instruments Directive 2014/32/EU (MID), which guarantees its accuracy and reliability.

Displayed parameters:

•

• Voltage between phases and zero (V)

• Phase current (A)

• Total harmonic distortion of voltage (U%THD)

• Current Total Harmonic Distortion (I%THD)

• Frequency (Hz)

• Power factor (PF)

• Maximum current consumption (MD A)

• Maximum power consumption (MD kW)

• Active power (kW)

• Reactive power (kVAr)

• Apparent power (kVA)

• Active energy import (kWh)

• Active energy export (kWh)

• Total active energy (kWh)

• Imported reactive power consumption (kVArh)

• Exported reactive power consumption (kVArh)

• Total reactive power consumption (kVArh)


An M-bus communication interface is available.

BASIC SPECIFICATIONS

Rated voltage: 3× 230/400 V AC

Operating voltage range: 80–120% of rated voltage (U _n )

Input current (rated): 1/5 A

Interface: M-bus

Mounting: DIN rail

Dimensions: 94.5 × 72 × 65 mm

Protection: IP51
