PLANET CS-6303R

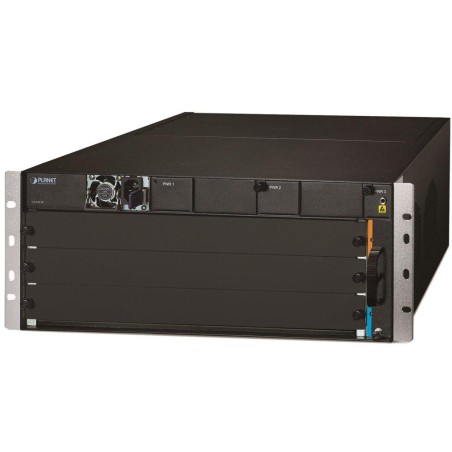

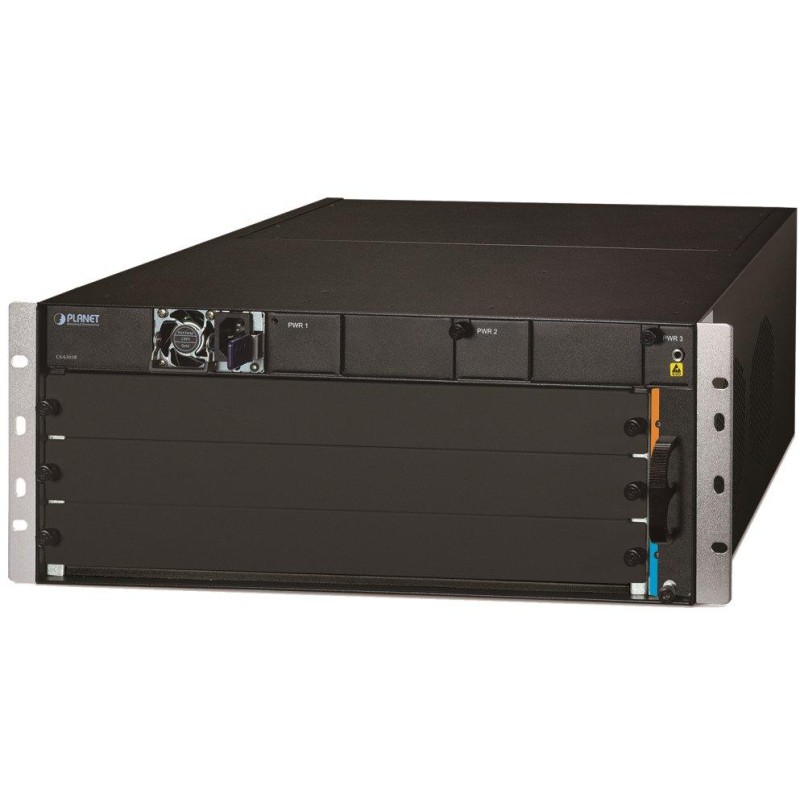

Illustrative photo - The device is supplied without a management module.
The CS-6303R Modular Core Layer Routing Switch is specially designed for large-scale network applications , such as enterprises, campuses, headquarters, ISPs, or data centers, where flexible configuration, large capacity, high density, maximum reliability, and advanced data traffic management are required.
Modular switch, 3× slots for optional modules (1× switch slot, 1× management slot, 1× switch/management slot), 4U height, redundant power supply (3 slots), supplied with one 350 W power supply .
Max configuration:
- 120× 10/100/1000 Base-T RJ-45
- 120× 100/1000 Base-SX/LX SFP
- 40× 10G SFP+
- 8× 40G QSFP+
- 48× GPON
BASIC SPECIFICATIONS
Physical properties:
Ports: according to installed modules
Memory: 32k MAC addresses, 32 MB buffer
Throughput: 1.47 Tbps bus, 552 Mpps operational (64B)
Memory: 64MB Flash, 1GB RAM
Transmission support: JumboFrame 9kB
IP protocol version: IPv4, IPv6
Design: modular, 4U height
Power supply: 3x AC 100-240 V power supply slots (1x 350 W power supply included)
Operating temperature: 0 to +50 °C
Dimensions: 482.6 × 376.2 × 178.2 mm
Weight: 11 kg (without modules and power supply)
Administration functions:
Management: Console, Telnet, Web, SNMP v1/v2c/v3, SSH v2, SSL v3
Access Control: ACL based on IP/MAC/time/sport/dport/protocol/ToS/Precedence, input filter up to 2560 records, output filter up to 1024 records
L3 routing: max. 256 VLAN interfaces for IPv4/IPv6, RIP v1/v2, RIPng, OSPF v2/v3, BGP (Border Gateway Protocol), static routing, BGP4+, PIM-DM and PIM-SM, PIM-SSM
ACL filter:
IP ACL, traffic filtering by IP address
MAC ACL, traffic filtering by MAC address
Time ACL, traffic filtering by time
QoS traffic prioritization: 8 levels, traffic prioritization by IP, MAC, VLAN id, TOS, Precedence, DiffServ, DSCP, 802.1p priority CoS + support for Weighted Round Robin (WRR) and Strict priority (SP)
VLAN support:
802.1Q VLAN tag
up to 4k VLAN groups
802.1ad Q-in-Q VLAN stacking/tunneling
Private VLAN
GVRP for VLAN management
Spanning Tree Protocol:
STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Link Aggregation: IEEE 802.3ad LACP
Multicast: IGMP v1/v2/v3, IGMP querier mode support, MLD v1/v2, up to 8k MLD/IGMP groups support, Multicast VLAN Register (MVR) support
Authentication of connected devices: TACACS+ and IPv4/IPv6 via RADIUS
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes, SFP-DDM (Digital Diagnostic Monitor)
