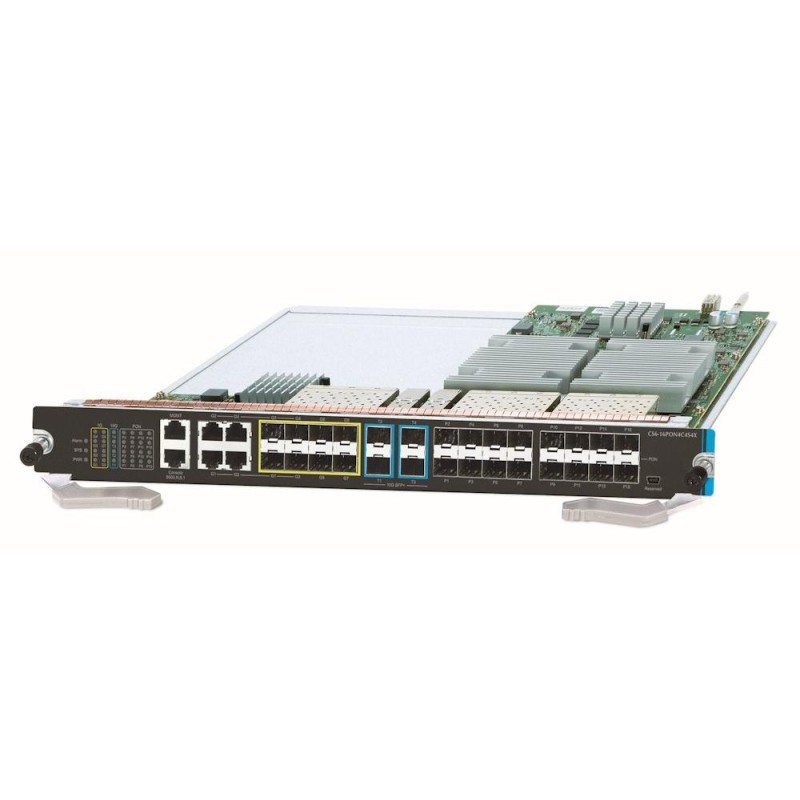

Planet CS6-16PON4C4S4X module, 16-port xPON, 4-port 1Gb TP/SFP, 4-port 1Gb SFP, 4-port 10Gb SFP+, for CS-6303R and CS-6306R

High-performance GPON OLT expansion card for backbone network applications.

PLANET CS6-16PON4C4S4X is a high-performance GPON Optical Line Terminal (OLT) expansion card designed for use with CS-6303R and CS-6306R switch chassis, which serve as backbone routing systems. This expansion card offers 16 GPON ports , 4 Gigabit TP/SFP combo ports, 4 Gigabit SFP ports, 4 10G SFP+ ports and one management port, providing exceptional scalability and flexible configuration options.

The module complies with ITU-T G.984/G.988 standards and provides high throughput of up to 2.5 Gbps downstream and 1.25 Gbps upstream with a reach of up to 20 km . It enables easy installation and management of GPON deployments with up to 1024 ONUs and HGUs , providing a highly efficient GPON solution and convenient management for broadband optical networks.

BASIC SPECIFICATIONS

Ports : 16× GPON, 4× GbE SFP/RJ-45 combo, 4× 1000Base-X SFP, 4× 10GBase-X SFP+, 1× RJ-45 (management), 1× RJ-45 console port
Compatibility : CS-6303R, CS-6306R

Standards: ITU-T G.984/G.988

Downstream speed: 2.5Gbps

Upstream speed: 1.25Gbps

Maximum range: 20 km

Maximum number of ONUs/HGUs: 1024
