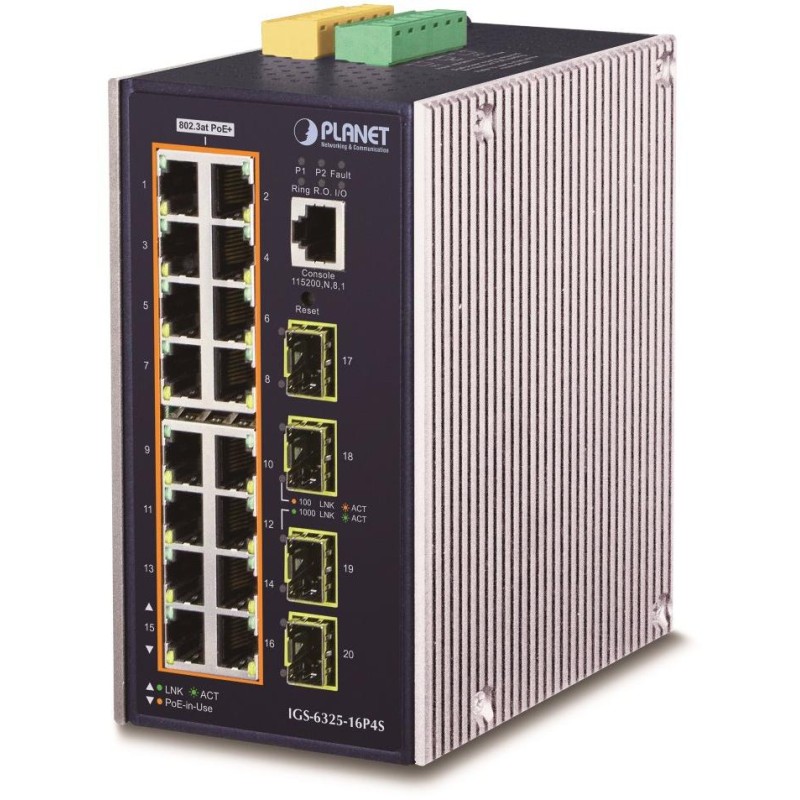

PLANET IGS-6325-16P4S
Industrial L3 PoE+ switch containing 16 x RJ-45 10/100/1000Base-T 802.3at PoE+ and 4 x SFP/mini-GBIC slot (1000Base-SX/LX/BX SFP). Additionally, it is equipped with an internal ONVIF module for detection and information of IP cameras in the network.
Thanks to its metal housing with IP30 certification, it can withstand high temperatures from -40 °C to 75 °C, making it suitable for heavy-duty use. The switch's switching capacity is 40 Gbps non-blocking and the throughput is 29.7 Mpps . 36 W of PoE power is available for each of the sixteen RJ-45 ports (max. 240 W or 320 W with dual power supply with the same voltage), so it can also power more energy-intensive devices.
The switch is powered by a dual 48-56V DC power supply. The switch can be mounted on a wall or DIN rail.
BASIC SPECIFICATIONS
Physical properties:
Ports: 16 x RJ-45 10/100/1000Base-T 802.3at PoE+, 4 x SFP/mini-GBIC slot (1000Base-SX/LX/BX SFP), 1 x RJ-45 console serial port (RS232)
Memory: 16k MAC addresses, 32 Mb buffer
Throughput: 40 Gbps bus, operational 29.7 Mpps (64B) non-blocking
Transmission support: JumboFrame 10 KB
IP protocol version: IPv4, IPv6
Design: DIN rail, wall-mounted
Power supply: 48 - 56V DC redundant, for full use of PoE+ a minimum of 51V is required, total power consumption up to 344 W (power supply not included)
Protection: ESD up to 6kV DC
Operating temperature: -40°C - 75°C
Dimensions: 152 x 107 x 84 mm
Weight: 1550g
Administration functions:
Management: Console, Telnet, Web, SNMP v1/v2c/v3, SSH, TLS, SSL
Access Control: IP and MAC based ACL protocol, 123 rules
ACL filter and bonding:
QoS traffic prioritization: 8 levels, traffic prioritization by port, DSCP/TOS in IP packet, 802.1p or 802.1q tag
VLAN support:
IEEE 802.1q
up to 255 VLAN groups, up to 4094 VLAN IDs
Q-in-Q tunneling
Private VLAN
MAC VLAN
VLAN Protocol
Voice VLAN
Multicast VLAN
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring: RX, TX, many-to-one
Link Aggregation: IEEE 802.3ad LACP, 4 ports in 10 groups
IGMP multicast: IGMP v1/v2/v3, up to 255 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x, RADIUS, TACACS+ authentication
LLDP: yes (automatic detection of the type of connected devices)
DHCP Snooping: yes (blocking foreign DHCP servers)
Wiring diagnostics: yes
POE function:
Total power output: 240 W (320 W dual power), IEEE 802.3af, 802.3at
Number of injectors: 16 x up to 36 W
Power supply type: End-span
Advanced features:
integrated pla device for scheduled shutdown of powered end elements
automatic detection of powered devices
internal thermal protection
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
