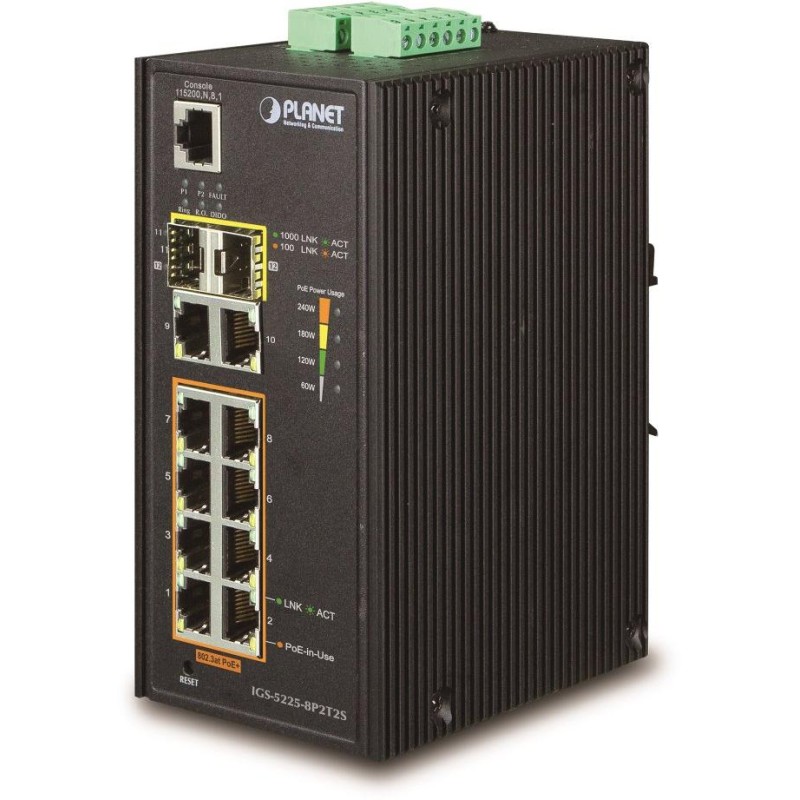

PLANET IGS-5225-8P2T2S
The switch contains 8 x RJ-45 ports with a speed of 10/100/1000 Mbps and PoE power supply, 2 x RJ-45 ports with a speed of 10/100/1000 Mbps shared with two SFP ports. In addition, it is equipped with an internal ONVIF module for detection and information of IP cameras in the network.
Thanks to its metal housing with IP30 certification, it can withstand high temperatures from -40°C to 75°C, making it suitable for heavy-duty use. The switch's switching capacity is 24 Gbps non-blocking and the throughput is 17.85 Mpps. 36 W of PoE power is available for each of the eight RJ-45 ports, so it can power even more energy-intensive devices.
There are also two SFP ports for fast data transfers on the optical network.
The switch is powered by a dual 48 - 56 V source. The switch can be placed on a wall or DIN rail.
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 8 x RJ-45 10/100/1000BASE-T PoE+, 2 x RJ-45 10/100/1000BASE-T, 2 x SFP 1000BASE-SX/BX, 1 x RJ-45 serial console port
Memory: 8k MAC addresses, 4 Mb buffer
Throughput: 24 Gbps bus, operational 17.85 Mpps (64B) non-blocking
Transmission support: JumboFrame 9 KB
IP protocol version: IPv4, IPv6
Design: DIN rail, wall-mounted
Power supply: 48 - 56V DC redundant, for full use of PoE+ a minimum of 51V is required, total power consumption up to 252.3 W (power supply not included)
Protection: ESD up to 5kV DC
Operating temperature: -40°C - 75°C
Dimensions: 152 x 107 x 72 mm
Weight: 991g
Administration functions:
Management: Console, Telnet, Web, SNMP v1, v2c
Access Control: IP and MAC based ACL protocol, 123 rules
L3 static routing: 32 rules, 8 VLAN interfaces
ACL filter and bonding:
QoS traffic prioritization: 8 levels, traffic prioritization by port, DSCP in IP packet, 802.1p or 802.1Q tags
VLAN support:
IEEE 802.1Q
up to 255 VLAN groups, up to 4094 VLAN IDs
Q-in-Q tunneling
Private VLAN
MAC VLAN
VLAN Protocol
Voice VLAN
VLAN Multicast
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring: RX, TX, many-to-one
Link aggregation: IEEE 802.3ad LACP, 4 ports in 6 groups
IGMP multicast: IGMP v2/ v3, up to 255 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x, RADIUS, TACACS+ authentication
LLDP: yes (automatic detection of the type of connected devices)
DHCP Snooping: yes (blocking foreign DHCP servers)
Wiring diagnostics: yes
POE function:
Total power supply: 240 W, IEEE 802.3af, 802.3at
Number of injectors: 8 x up to 36 W
Power supply type: End-span
Advanced features: integrated scheduler for scheduled shutdown of powered end elements
automatic detection of powered devices
internal thermal protection
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
