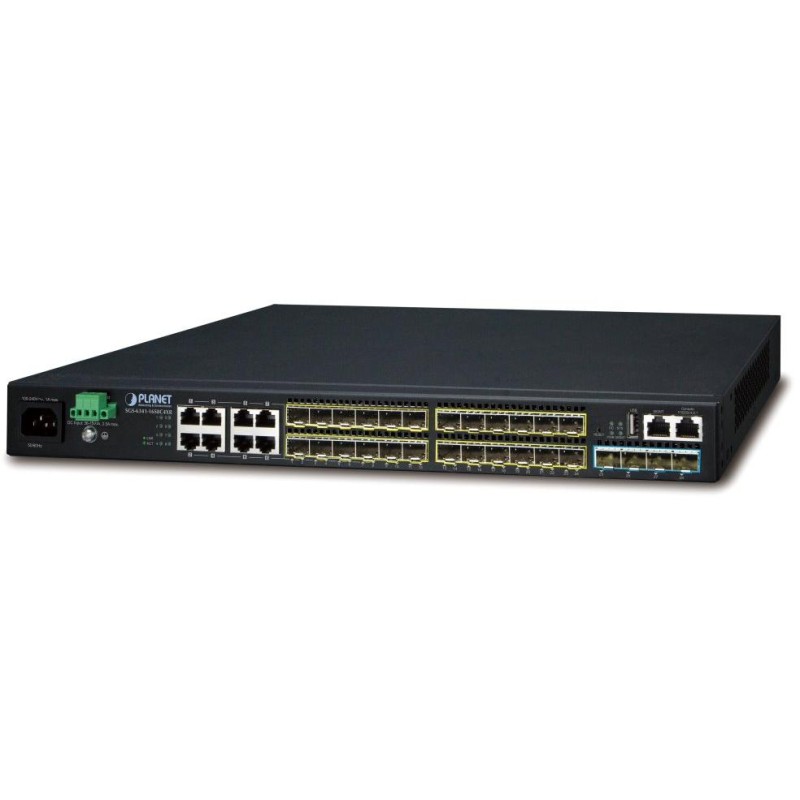

PLANET SGS-6341-16S8C4XR
Stackable managed L3 switch with 24 SFP ports , which are supplemented by 4 SFP+ ports with speeds up to 10G. There are also 8 RJ-45 ports . It provides high performance with L3 static routing . This enables high data transfer rates of up to 128 Gb/s , which greatly simplifies network modernization in order to expand the bandwidth according to requirements. IP and HW stacking are also available as additional features.
The switch is equipped with one AC 100-240V power supply and one additional DC 36-75V power supply for redundant power supply. For increased reliability, a redundant power system with AC or DC power supply is also available. The redundant power system is specially designed to meet the requirements of high-end technology equipment requiring the highest performance integrity.
IP stacking helps network administrators easily configure up to 24 switches in the same series using a single IP address instead of connecting and configuring each unit individually. IP Stacking technology combines a series of SGS-6341 switches to enable centralized management through a single unit regardless of physical location or switch type, as long as they are connected to the same local area network.
The SGS-6341 series can be connected as a ring ( HW stacking ) to provide redundancy and guarantee data integrity even in the event of a single switch failure in the stack. Switches can even be hot-swappable without disrupting the network, greatly simplifying the task of upgrading the LAN to meet increasing bandwidth demands.
BASIC SPECIFICATIONS
Physical properties:
Ports: 8x RJ-45 10/100/1000 Base-T, 24x SFP 100/1000 Base-X, 4x SFP+ 10G Base-SR/LR compatible with 1000Base-SX/LX/BX, 1x RJ-45 serial console port, 1x RJ-45 console port, 1x USB 2.0 (configuration backup and restore)
Memory: 16k MAC addresses, 1.5 MB buffer
Throughput: 128 Gbps bus, operational 95.23 Mpps (64B)
Transmission support: JumboFrame 10 KB
IP protocol version: IPv4, IPv6
Design: 1U rack
Power supply: dual, redundant, AC 100-240 V (50/60 Hz), DC 36-75 V, total AC power consumption up to 51.1 W (DC up to 47.6 W)
Protection: no
Operating temperature: 0 to +50 °C, humidity up to 90%
Dimensions: 440 x 240 x 43.6 mm
Weight: 3173g
Administration functions:
Management: console via RJ-45, Telnet, Web, SNMP SSH/SSL, SNMP v1/v2c/v3
Access control: IP and MAC based ACL protocol
L3 routing:
IPv4 protocols: RIP v1/v2, OSPF v2, BGP v4, PBR, LPM (MD5 authentication)
IPv6 protocols: RIPng, OSPF v3, BGP v4+, LPM, PBR, VRRP v3, URPF, RA
ACL filter and bonding:
IP ACL, traffic filtering by IP address, protocol, port, TCP flags
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
QoS traffic prioritization: 8 levels, traffic prioritization according to IPv4/IPv6 DSCP or IEEE 802.1p CoS/ToS
Port shaper: yes
VLAN support:
IEEE 802.1Q
up to 256 VLAN groups
Q-in-Q (VLAN stacking)
GVRP
Private VLAN Edge (PVE)
MAC VLAN
Protocol-based VLAN
IP subnet VLAN
Spanning Tree Protocol:
STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring: RX, TX, both
Link aggregation: IEEE 802.3ad LACP, 8 ports in 128 groups
Multicast IGMP: IGMP v1/v2/v3 snooping, IGMP querier mode support, MLD v1/v2 support, MVR support, up to 4K multicast groups (IPv4 + IPv6)
Authentication of connected devices: IEEE 802.1x, AAA authentication: TACACS+ and IPv4/IPv6 via RADIUS
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes, SFP-DDM (Digital Diagnostic Monitor)
