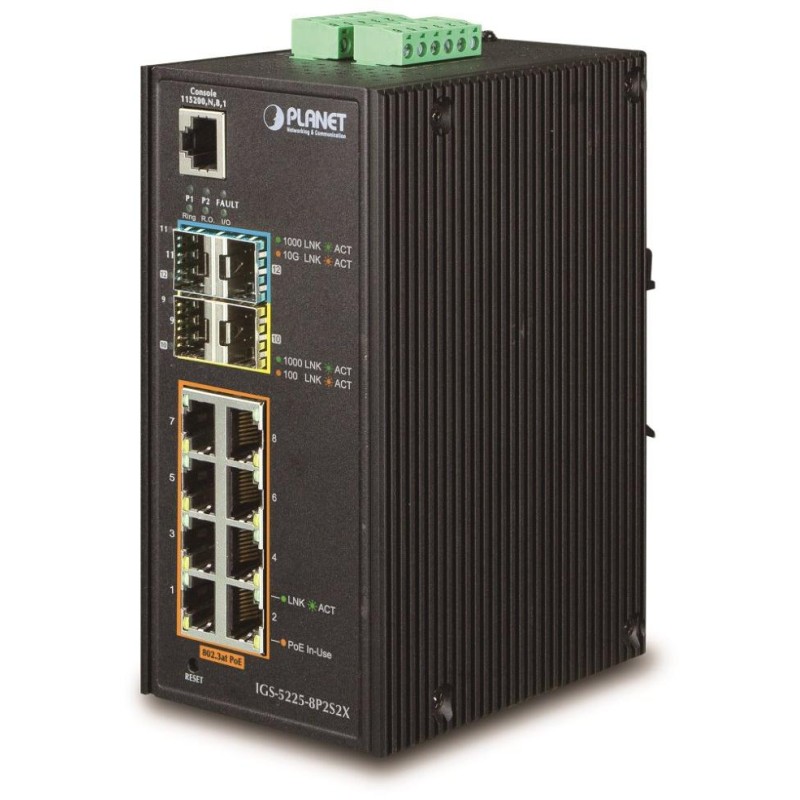

PLANET IGS-5225-8P2S2X
Industrial manageable L3 PoE switch 8x 1000Base-T, 2x SFP+, 2x SFP (SFP-DDM diagnostics), 2x DI/DO, power output up to 240 W.
Web/SNMPv3 management, VLAN 802.1Q, Spanning Tree (ERPS), 802.3ad LACP line aggregation, Port shaper, QoS, IGMPv3, DHCP Snooping.
Redundant power supply 2x DC 48~56V (higher voltage for higher PoE power), ESD surge protection, IP30 protection, DIN installation, operating temperature -40~75°C.
10 Gigabit managed switch operating at OSI layer 2 and 3. It has PoE injectors according to IEEE 802.3at, is equipped with advanced features for use in wide area networks and backbone connections. Static routing, powerful tools for QoS traffic management and security allow ISPs and network administrators to control and effectively manage network data, part of which the switch will be equipped, for example, as a central element.
Intelligent switches for industrial Ethernet are designed for harsh operating conditions with wide operating temperature ranges, erratic power supply, and frequent shocks. They also provide excellent multi-connectivity capabilities to achieve robust system connectivity with very low recovery times.
It is equipped with a redundancy method using the Spanning Tree protocol (whose recovery time is in the order of seconds and fractions of seconds). L3 routing is supported for up to 128 rules and 128 VLAN interfaces.
IGS series switches enable the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
Their great advantage is the extended mean time between failures (MTBF)!
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 8 x RJ-45 10/100/1000BASE-T, 2 x SFP 1000BASE-SX/LX/BX or 100BASE-FX, 2 x SFP+ 10GbBASE-SR/LR, 1 x RJ-45 (RS-232) console serial port
Memory: 32k MAC addresses, buffer 16 Mbits
Throughput: 60 Gbps bus, operational 44.64 Mpps (64B)
IP protocol version: IPv4, IPv6
Design: DIN rail
Power supply: DC 48 - 56 V, redundant, connection possible from two different sources, total power consumption up to 306 W (power supply not included)
Protection: ESD up to 6 kV DC
Operating temperature: -40°C - 75°C, humidity up to 95%
Dimensions: 152 x 107 x 72 mm
Weight: 1684g
Administration functions:
Management: Console, Telnet, Web, SSH, TLS, SSL, SNMP v1, v2c, v3
Access Control: IP and MAC based ACL protocol
L3 static routing: 128 rules, 128 VLAN interfaces, IPv4 OSPFv2
ACL filter and bonding:
IP ACL, traffic filtering by IP address
MAC ACL, traffic filtering by MAC address
QoS traffic prioritization: 8 levels, prioritization by port, DSCP/ToS, 802.1p or 802.1Q tags
Port shaper settings in the range of 500 Kb - 1000 Mbps
SupportVLAN:
IEEE 802.1Q
up to 255 VLAN groups, up to 4094 VLAN IDs
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
Multicast VLAN Registration
GVRP
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring: RX, TX, RX+TX, multiple ports on one
Link aggregation: IEEE 802.3ad LACP, 4 ports in 6 groups
IGMP multicast: IGMP v1/ v2/ v3, up to 255 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x (RADIUS) - IP+MAC binding, VLAN + MAC binding
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Wiring diagnostics: yes
POE function:
Total power output: 240 W, IEEE 802.3at
Number of injectors: 8 x up to 36 W
Power supply type: End-span
PoE features:
- threshold temperature control
- check the threshold value for PoE use
- live PD control
- PoE scheduler
