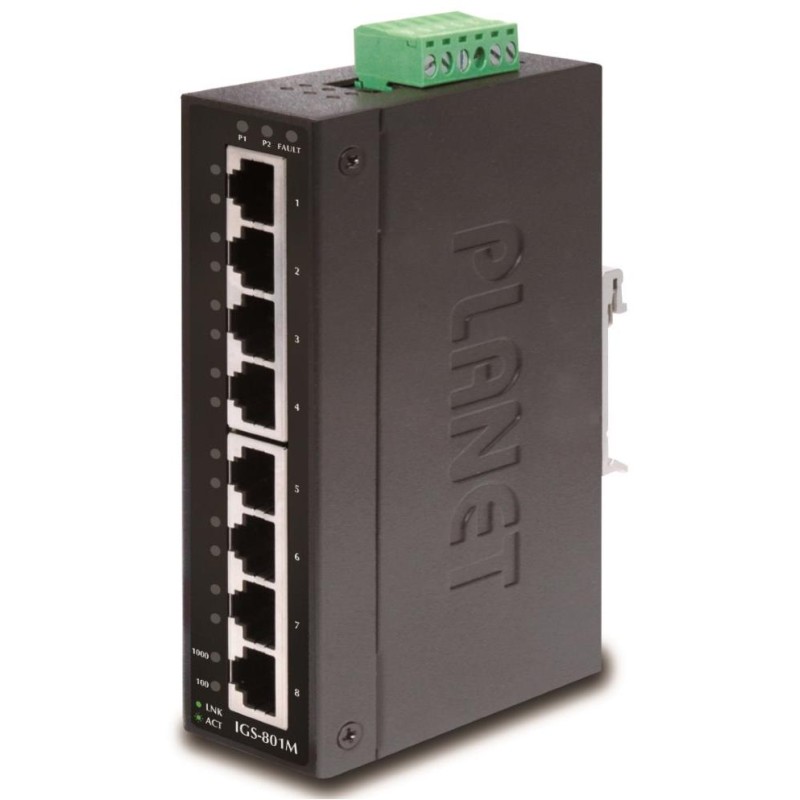

PLANET IGS-801M
8-port 1000Base-T managed switch and converter for industrial applications. Data link redundancy with 300ms recovery.
Web//SNMP management, 64 VLAN 802.1Q networks, Spanning Tree, IEEE 802.3ad LACP link aggregation.
Redundant power supply option in the range of 12-48V DC, IP30 protection, aluminum housing, operating temperature -10~60°C.
Surge protection for LAN and power ports up to 6kV. DIN rail or wall mounting.
Intelligent switches for industrial Ethernet are designed for harsh operating conditions with wide operating temperature ranges, unstable power supply, and frequent shocks. They also provide excellent multi-connectivity capabilities to achieve robust system connectivity with very low recovery times.
In addition to the well-known Spanning Tree method (whose recovery time is in the order of seconds), the IGS-801M is equipped with a specialized "Redundant ring" function for redundancy, which has a recovery time and finding a new path of up to 300ms.
The IGS series switches are easily installed on a standard DIN rail or directly on the wall, enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 8 x RJ-45 10/100/1000BASE-T
Memory: 8k MAC addresses, 4.1 Mb buffer
Throughput: 16 Gbps bus, operational 11.9 Mpps (64B)
Transmission support: JumboFrame 10K
IP protocol version: IPv4, IPv6
Design: DIN rail, wall-mounted
Power supply: 12-48V DC redundant, connection possible from two different sources (not included), total power consumption up to 10W
Protection: ESD up to 6kV, switching alarm relay (24V/1A) in case of primary power failure
Operating temperature: -40°C - 75°C
Dimensions: 135 x 87 x 32 mm
Weight: 472g
Administration functions:
Management: Telnet, Web, SNMP SSH/SSL, SNMP v1, v2c, v3
Access Control: IP and MAC based ACL protocol, 123 rules
ACL filter and bonding:
IP ACL, traffic filtering by IP address, protocol, port, TCP flags
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
QoS traffic prioritization: 8 levels, traffic prioritization by port, DSCP in IP packet, 802.1p or 802.1Q tags
VLAN support: IEEE 802.1Q
up to 256 VLAN groups, up to 4094 VLAN IDs
Q-in-Q tunneling
Voice VLAN
VLAN Protocol
Private VLAN
GVRP
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring: RX, TX, RX+TX, many-to-one
Link aggregation: IEEE 802.3ad LACP, 8 ports in 8 groups
IGMP multicast: IGMP v2/ v3, up to 256 groups, IGMP querier mode support
Authenticationace of connected devices: IEEE 802.1x, RADIUS, TACACS+ authentication
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Wiring diagnostics: yes
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
DIN rail mounting :
Wall mounting using the supplied frame :
