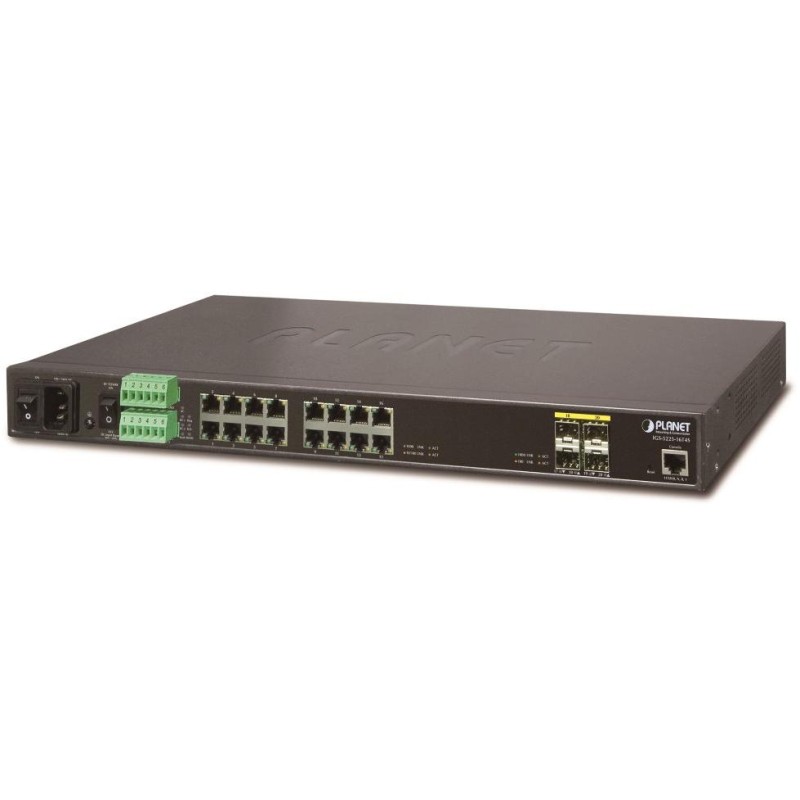

PLANET IGS-5225-16T4S
Industrial manageable L3 switch 16x 10/100/1000Base-T, 4x SFP 100/1000Base-X (SFP-DDM diagnostics), 2x DI/DO.
Web/SNMPv3 management, 255 VLAN 802.1Q networks, Spanning Tree, Rapid Spanning Tree, 802.3ad LACP link aggregation, Port shaper, QoS, DHCP Snooping, ERPS Ring - data transmission recovery time is less than 10 ms (ITU-T G.8032 ERPS Ethernet Ring Protection Switching).
Redundant AC+DC power supply, ESD surge protection, IP30 protection, operating temperature -40~75°C, fanless.
Intelligent switches for industrial Ethernet are designed for harsh operating conditions with wide operating temperature ranges, unstable power supply, and frequent shocks. They also provide excellent multi-connectivity capabilities to achieve robust system connectivity with very low recovery times.
It is equipped with a redundancy method using the Spanning Tree protocol (whose recovery time is in the order of seconds and fractions of seconds). L3 routing is supported for up to 32 rules and 8 VLAN interfaces.
IGS series switches enable the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
Their great advantage is the extended mean time between failures (MTBF)!
BASIC SPECIFICATIONS
Physical properties:
Ports: 16 x RJ-45 10/100/1000BASE-T, 4 x SFP 100/1000BASE-X, 1 x RJ-45 (RS232) serial console port, 2x DI/DO digital logic interface
Memory: 8k MAC addresses, 4Mbit buffer
Throughput: 40 Gbps bus, operational 29.76 Mpps (64B)
Transmission support: JumboFrame 9kB
IP protocol version: IPv4, IPv6
Design: rackmount 1U
Power supply: AC 100-240V/50-60Hz or DC 36-60V, redundant, total power consumption up to 15.2W (power supply not included)
Protection: ESD up to 6kV
Operating temperature: -40°C - 75°C, humidity up to 95%
Dimensions: 440 x 200 x 44.5 mm
Weight: 2672g
Administration functions:
Management: console via RJ-45, Telnet, Web, SNMP SSH/SSL, SNMP v1, v2c, v3
Access Control: IP and MAC based ACL protocol, 256 rules
L3 static routing: 32 rules, 8 VLAN interfaces
ACL filter and bonding:
IP ACL, traffic filtering by IP address, protocol, port, TCP flags
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
QoS traffic prioritization: 8 levels, traffic prioritization by port, DSCP/ToS in IP packet, 802.1p or 802.1Q tags
Port shaper settings in the range of 1kb - 1Gb/s
VLAN support: IEEE 802.1Q
up to 255 VLAN groups, up to 4095 VLAN IDs
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
Multicast VLAN Registration
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring: RX, TX, both
Link aggregation: IEEE 802.3ad LACP, 8 ports in 10 groups
IGMP multicast: IGMP v1/ v2/ v3, up to 255 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x (RADIUS) - IP+MAC binding, VLAN + MAC binding
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Wiring diagnostics: no
Industrial properties:
EMI/EMS, electromagnetic compatibility and compatibility according to CE EN-6100-4-2,3,4,5,6
electrical safety according to CE EN-60950
Ethernet ring topologies STP/RSTP/MSTP and ERPS
