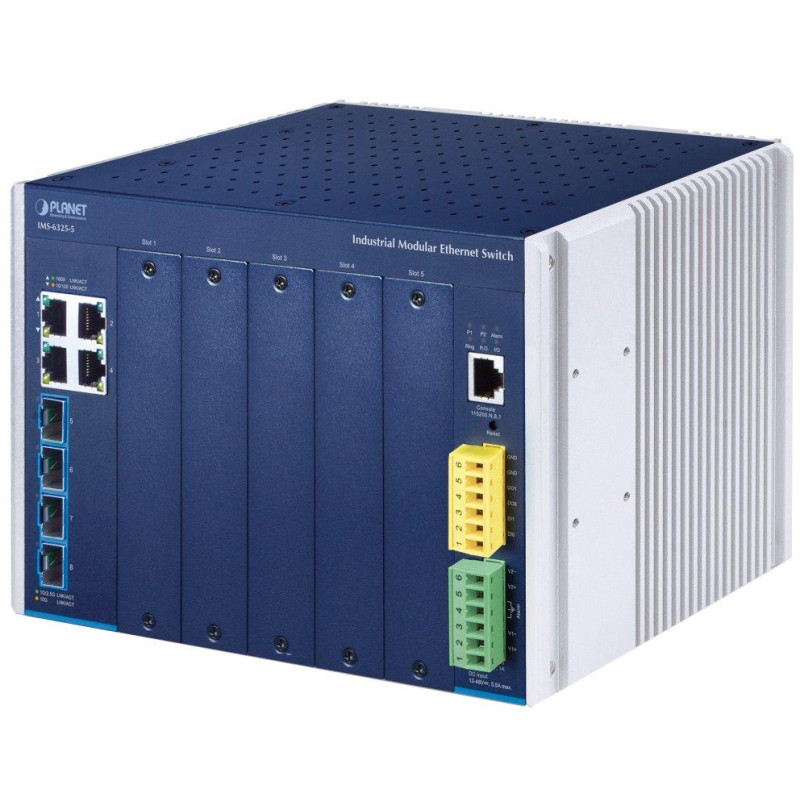

PLANET IMS-6325-5
The modular industrial Ethernet switch is a cutting-edge solution that combines flexibility with high performance. Thanks to its modular design, it supports up to 5 interchangeable modules , allowing it to be adapted to different network requirements with options such as 10/100/1000Base-T or Gigabit SFP optics. Two fixed modules offer four Gigabit RJ-45 ports and four 10G SFP+ slots , while another module provides digital input and output for control and a terminal block for redundant power supply in the range of 12-48 V DC .
The IMS-6325-5 includes advanced Layer 3 features such as dynamic IPv6/IPv4 routing protocols ( OSPFv2/v3 and RIPv2 ) that optimize network traffic management in complex environments. With ITU-G.8032 ERPS Ring technology with up to 10 ms recovery, this switch ensures a resilient network infrastructure. In addition, it offers support for precise time synchronization (IEEE 1588v2 Precision Time Protocol) and robust cybersecurity. It is designed for reliable and safe operation in extreme temperatures from -40 to 75 °C , making it an ideal solution for industrial automation and mission-critical applications.
Key features:
- Modular architecture with 5 slots – allows the installation of various network modules according to specific needs, ensuring high network flexibility and scalability.
- 10G SFP+ slots for high-speed transmission – provides reliable, fast, low-latency connectivity, ideal for demanding network applications, including data centers and industrial networks.
- Redundant power support – increases reliability by switching to a backup power source in the event of a main power failure, ensuring uninterrupted operation.
- Wide operating temperature range – designed to operate in extreme conditions with a wide temperature range, ideal for industrial applications in harsh environments.
- Support for Layer 3 features – enables effective network traffic management, performance optimization, and data security in large infrastructures.
- Enterprise-level security and management – supports a wide range of security features such as Access Control List (ACL), IEEE 802.1X authentication, DHCP Snooping and IGMP Snooping, which protects the network from unauthorized access and attacks.
- High resistance to external influences – robust construction protects against dust, moisture and electromagnetic interference, suitable for use in demanding industrial environments.
- Support for PoE modules – allows you to power connected devices, such as IP cameras or wireless access points, without the need for a separate power line.
- Advanced Layer 3 routing capabilities – Supports IPv4 OSPFv2, RIPv1/v2, and IPv6 OSPFv3 dynamic routing protocols, enabling efficient traffic management and flexible routing in various environments.
- High VLAN routing capacity – with support for up to 128 VLAN interfaces and 4K routing entries, it ensures smooth communication between networks and optimizes data flow.
- Support Modbus TCP protocol – enables integration with industrial automation systems for effective monitoring and control.
- ERPS (Ethernet Ring Protection Switching) support – ensures rapid network recovery in the event of an outage, minimizing downtime.
- Industrial certification – meets industry standards and certifications, confirming its reliability and durability in demanding conditions.
BASIC SPECIFICATIONS
Physical properties:
Ports: 4× 10/100/1000Base-T RJ-45, 4× 10GBase-SR/LR SFP+ slots, 5× slot for additional module, 1× serial port (RJ-45), 2× digital input, 2× digital output, 1× 2pin alarm output (relay)
Throughput: 88 Gbps bus, operational 95.2 Mpps (64 B)
Design: DIN rail, wall-mounted
Power supply: dual (redundant), 2× DC 12–48 V, 6-pin terminal block, power consumption up to 31.2 W
Protection: ESD up to 6 kV (contact), up to 8 kV (air), reverse polarity protection
Operating temperature: -40 to +75 °C
Dimensions: 217 × 152 × 135 mm
Weight: 3.59 kg
Possible monitoring with CloudViewerPro mobile application.
Physical ports
4× 10/100/1000Base-T Gigabit Ethernet RJ-45 ports
4× 10GBase-SR/LR SFP+ slots, backward compatible with 1G/2.5GBASE-X SFP
Expandable with up to 5 modules with various interface types
1× RJ-45-to-RS-232 console interface for basic management and setup
Industrial protocols
Modbus TCP for real-time monitoring in SCADA system
IEEE 1588v2 PTP support with boundary and transparent clock modes
Industrial design and installation
DIN-rail or wall mounting with IP30 metal housing
Fanless design for quiet operation and efficient heat dissipation
Dual 12-48 V DC power supply with reverse polarity protection
Operating temperature: -40°C to 75°C, suitable for harsh environments
Digital inputs and outputs
2 digital inputs
2 digital outputs
Sensor integration into a car alarm system
Alarm transmission to IP networks via E-mail and SNMP trap
IP routing (Layer 3)
Support for IPv4 (RIPv1/v2, OSPFv2) and IPv6 (OSPFv3) dynamic routing
Hardware static IPv4/IPv6 routing
Per VLAN routing mode
Switching function (Layer 2)
Store-and-Forward architecture for bandwidth optimization
Storm Control Support
Enhanced VLAN support (IEEE 802.1Q, Q-in-Q, MAC-based, Voice VLAN)
Spanning Tree Protocols (STP, RSTP, MSTP) with BPDU Guard support
Support for line aggregation (LACP) and static trunks
Support for port mirroring and loop protection
ITU G.8032 ERPS Ring support for fast network recovery
Quality of Service (QoS)
Port bandwidth control
8 priority queues on each port
Support for QoS, DSCP remarking, VoIP traffic prioritization
Multicast
Support for IGMP snooping (v1, v2, v3) and MLD snooping (v1, v2)
Multicast VLAN Registration (MVR) support
Security
IEEE 802.1X authentication support (port-based, MAC-based)
ACL (Access Control List) for access control
Protection against ARP spoofing, DHCP Snooping and IP Source Guard
Central authentication using RADIUS and TACACS+
Management and diagnostics
IPv4/IPv6 dual-stack support
Management via CLI (Console/Telnet), Web GUI (HTTP/HTTPS), SNMP v1/v2c/v3
SSHv2, TLSv1.2 support for secure access
SNMP trap and RMON for network monitoring
Remote management possible using PLANET UNI-NMS and other tools
Diagnostic functions (SFP-DDM, remote ping, cabling test)
