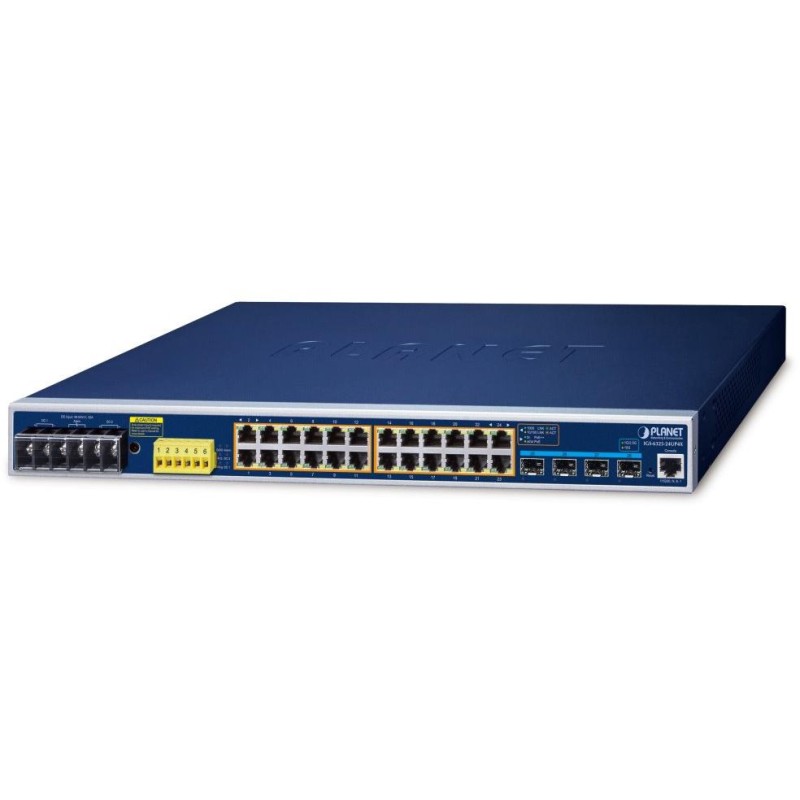

PLANET IGS-6325-24UP4X
Managed industrial L3 PoE switch with 24× 10/100/1000 Base-T RJ-45, 4× 10G Base-SR/LR SFP+ (backward compatible with 1G/2.5G Base-SX/LX/BX), DDM diagnostics support. Ports 1–24 support PoE++ power (802.3af/at/bt), total power up to 1440 W (for maximum power, dual power supplies with the same voltage are required, e.g. 2× DC 54 V).
ERPS ring (ITU-T G.8032 ERPS - Ethernet Ring Protection Switching) , digital inputs and outputs (DI/DO) , layer 3 IP routing functions, QoS, security and other functions.
Dual power supply in the range of DC 48–54 V , IP30 protection, aluminum body, operating temperature -40 to +75 °C , fanless (without fans), ESD protection up to 4 kV contact (8 kV air), mounting in a 19" rack .
The switch supports ONVIF , a feature specifically designed for IP cameras. From the GUI, clients can search and view all available ONVIF devices with just one click. In addition, clients can upload floor maps themselves, which makes it easier to deploy monitoring and other devices for planning and control. In addition, real-time information and online/offline status can be obtained.
Intelligent switches for industrial Ethernet are designed for harsh operating conditions with a wide operating temperature range, uncertain power supply and frequent shocks. They also provide excellent multi-connection capabilities to achieve robust system interconnection with very low recovery time.
It is equipped with a redundancy method using the Spanning Tree protocol (whose recovery time is in the order of seconds and fractions of seconds). L3 routing is supported for up to 128 rules and 128 VLAN interfaces.
IGS series switches enable the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
Their great advantage is the extended mean time between failures (MTBF)!
BASIC SPECIFICATIONS
Physical properties:
Ports: 24× GbE RJ-45, 4× 10G SFP+, 1× console port RJ-45 (RS-232), 2× digital input DI, 2× digital output DO, 1× alarm output (relay)
Memory: 16k MAC addresses
Throughput: 128 Gbps bus, operational 95.2 Mpps (64B)
Transmission support: JumboFrame 10 KB
Design: rackmount 1U
Power supply: dual, DC 48–54 V, power consumption up to 20.78 W without PoE, max. 1522 W with PoE (power supply not included)
Protection: ESD up to 4 kV DC (contact), ESD up to 8 kV (air)
Operating temperature: -40 to +75 °C
Dimensions: 440 × 300 × 44 mm
Weight: 4051g
Administration functions:
Management: Console, Web, Telnet, SNMP v1/v2c/v3, SSH v2, TLS v1.2
Access Control: ACL based on IP/MAC/Ethertype/protocol/VLAN/DSCP/802.1p, up to 512 rules
L3 routing: max. 128 VLAN interfaces, 128 static routing entries, 4k routing table entries, OSPF v2/v3, RIP v1/v2, IPv4/IPv6 HW static routing
ACL filter and bonding:
IP ACL, traffic filtering by IP address
MAC ACL, traffic filtering by MAC address
QoS traffic prioritization: classifiertraffic control, strict priority and WRR, 8-level priority for switching (port number, 802.1p priority, 802.1Q VLAN tag, DSCP/ToS field in IP packet)
VLAN support:
VLAN according to IEEE 802.1Q standard with tag
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
VLAN based on MAC address
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN registration)
GVRP
Up to 4K VLAN groups from 4096 VLAN IDs
Spanning Tree Protocol:
STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Support for 7 MSTP instances
BPDU Guard, BPDU Filtering, and Transparent BPDU
Root Guard
Link aggregation: IEEE 802.3ad LACP, max. 14 trunk groups with max. 16 ports per group
Multicast: IGMP v1/v2/v3, IGMP querier mode support (up to 2k groups), MLD v1/v2, MLD querier mode support (up to 512 groups)
Authentication of connected devices: IEEE 802.1x, RADIUS, TACACS+, MAC
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes, SFP-DDM (Digital Diagnostic Monitor)
PoE function:
Total power output: max. 1440 W (depending on power supply), 802.3af, 802.3at, 802.3bt
Max. 1440 W - dual power supply with the same voltage required (e.g. 2× DC 54 V)
Max. 720 W - with single power supply
PoE++ power supply - voltage more than DC 52 V is recommended
Power supply: DC 48–54 V, max. 95 W/port (802.3bt type 4 or Force mode)
Number of injectors: 24
Power supply type: End-span, Mid-span, BT
Advanced features:
PD Alive Check
automatic detection of powered device
integrated scheduler for planned shutdown of powered end elements
PoE monitoring and management
PoE Extend mode
Advanced PoE Mode - Standard/Legacy/Force
