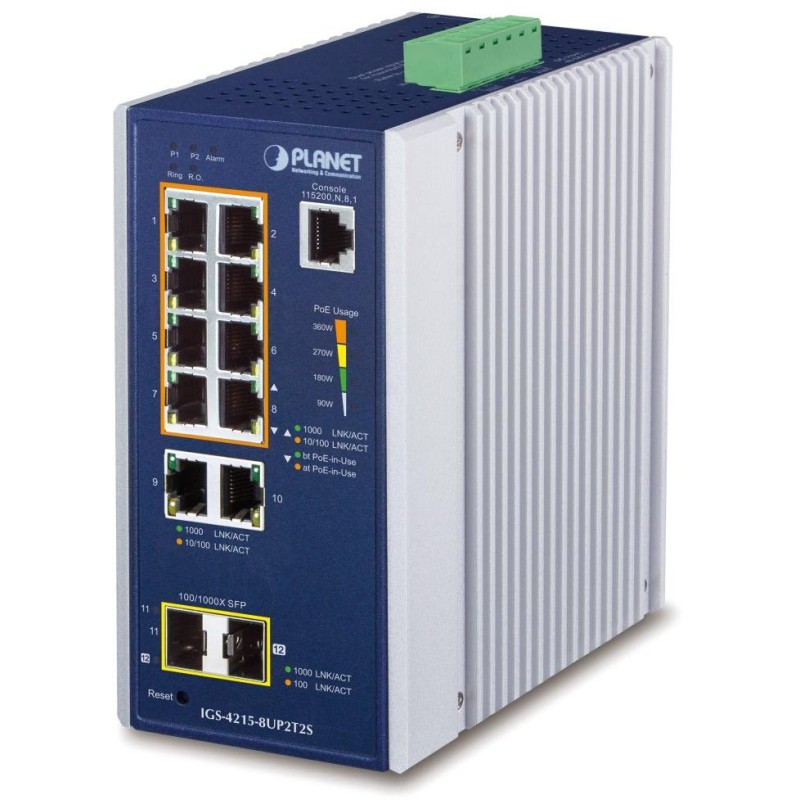

PLANET IGS-4215-8UP2T2S
Industrial L2 PoE managed switch 10x RJ-45 10/100/1000 Base-T, 2x SFP 100/1000 Base-SX/LX/BX (DDM diagnostics). Ports 1-8 support PoE++ power supply (802.3af/802.3at/802.3bt), total power 360 W (for max. power, dual power supply with the same voltage is required, e.g. 2x DC 54 V).
Support IPv4/IPv6, Web/SNMP/Telnet/console , NMS system, Smart Discovery Utility, CloudViewer app , VLAN 802.1Q, 802.3x Flow Control , Spanning Tree, Multiple/Rapid Spanning Tree, link aggregation 802.3ad LACP , QoS, DHCP snooping and DHCP Option82, LLDP, IGMP v2/v3, RADIUS, TACACS+, ERPS Ring (ITU-T G.8032) .
Alarm output in case of failure, ESD protection up to 6 kV (8 kV in air), IP30 protection, metal housing, operating temperature -40 to +75 °C , mounting on DIN rail or directly on the wall, DC 48-54 V power supply.
Industrial Ethernet switches are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply, and frequent shocks.
The IGS series switches are easily installed on a standard DIN rail or directly on the wall , enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 10x GbE RJ-45, 2x 1G SFP
Memory: 8k MAC addresses, 4.1 Mb buffer
Throughput: 24 Gbps bus, operational 17.85 Mpps (64B)
Transmission support: JumboFrame 10kB
IP protocol version: IPv4, IPv6
Design: DIN rail, wall-mounted
Power supply: DC 48-54 V, power consumption up to 9.18 W without PoE, max. 390 W with PoE (power supply not included)
Protection: ESD up to 6 kV DC (contact), ESD up to 8 kV (air), surge protection up to 4 kV DC
Operating temperature: -40 to +75 °C, humidity up to 95%
Dimensions: 152 x 107.3 x 76.8 mm
Weight: 1.091 kg
Administration functions:
Management: Console, Web, Telnet, SNMP v1/v2c/v3, SSH v2, TLS v1.2
Access Control: IP/MAC-based ACL (ACL/ACE) protocol
ACL filter and bonding:
IP ACL, traffic filtering by IP address
MAC ACL, traffic filtering by MAC address
QoS traffic prioritization: 8 levels (port number, 802.1p priority, DSCP/IP priority of IPv4/IPv6 packets), support for Ingress/Egress limit, traffic classification based on strict priority and WRR
VLAN support:
IEEE 802.1Q (VLAN tagging)
up to 256 VLAN groups, up to 4094 VLAN IDs
Q-in-Q tunneling (802.1ad)
Voice VLAN
VLAN Protocol
Private VLAN (Protected port)
GVRP
VLAN management
Spanning Tree Protocol:
STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol, by VLAN
STP BPDU Guard, BPDU filtering and BPDU forwarding
>
Port mirroring: RX, TX, RX+TX, many to one
Link Aggregation: IEEE 802.3ad LACP and Static Trunk, 6 groups + up to 8 ports per group
IGMP multicast: IGMP v2/v3, up to 256 groups, IGMP querier mode support, MLD snooping v2, v3
Authentication of connected devices: IEEE 802.1x, RADIUS/TACACS+
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes (SFP-DDM - Digital Diagnostic Monitor)
PoE function:
Total power output: max. 360 W (depending on power supply), 802.3af, 802.3at, 802.3bt
Max. 360 W - dual power supply with the same voltage required (e.g. 2x DC 54 V)
Max. 240 W - with single power supply
PoE++ power supply - voltage more than DC 52 V is recommended
Power supply: DC 48-54 V, max. 95 W/port (802.3bt type 4 or Force mode)
Number of injectors: 8
Power supply type: End-span, Mid-span, BT
Advanced features:
PD Alive Check
automatic detection of powered device
integrated scheduler for planned shutdown of powered end elements
PoE monitoring and management
PoE Extend mode
Advanced PoE Mode - Standard/Legacy/Force
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration 50g, long-term 4g (IEC-60068-2-27)
