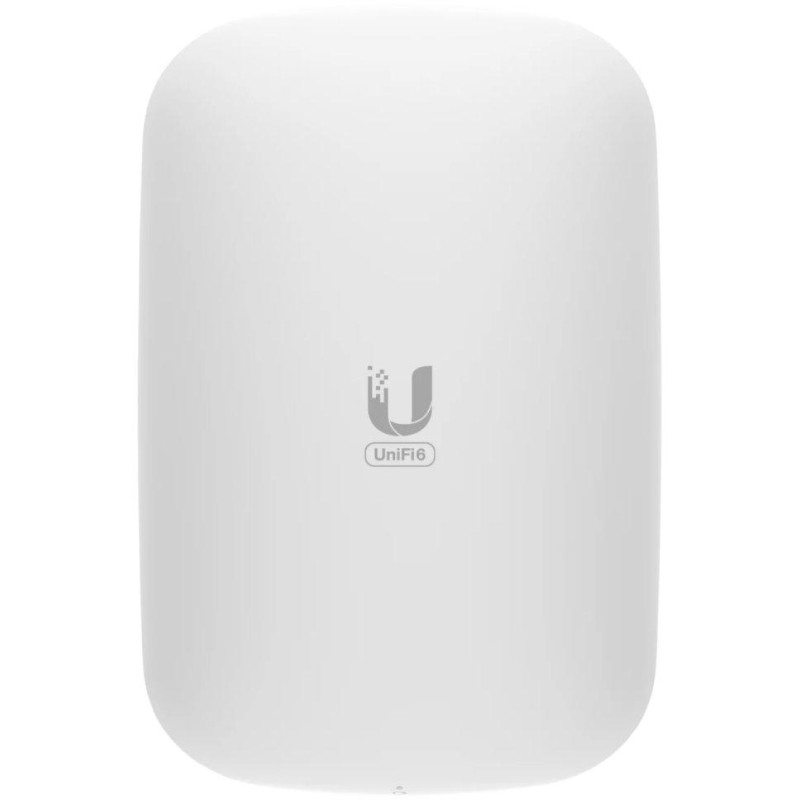

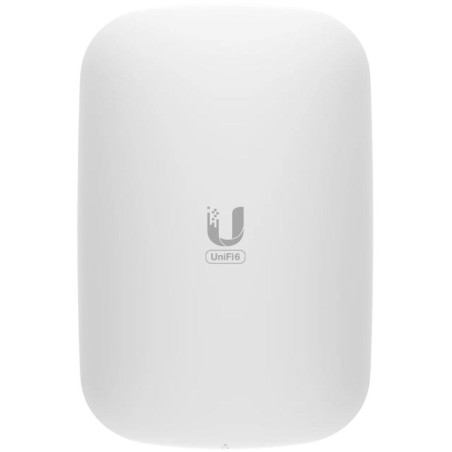

Ubiquiti UniFi 6 Extender
Easy-to-use Wi-Fi 6 coverage extender with 5.3+ Gbps aggregate throughput.
The UniFi 6 Extender (U6 Extender) is a portable , plug-and-play Wi-Fi 6 access point that easily and instantly extends your home or office Wi-Fi coverage.
With dual-band (2.4 and 5 GHz) and an aggregate throughput of 5.3+ Gbps, the U6 Extender provides the strong and reliable connection needed to cover even the busiest networks.
The U6 extender can be deployed to your network in minutes and managed centrally using a web or mobile app.
Features and functions:
- Dual-band Wi-Fi 6
- 5 GHz band (4x4 MU-MIMO and OFDMA) with throughput up to 4.8 Gbps
- 2.4 GHz band (2x2 MU-MIMO and OFDMA) with throughput up to 573.5 Mbps
- Fits any standard EU socket
- Extends wireless coverage in large homes or offices
- LED backlight (white or blue)
- Bluetooth management interface
- BSSID, VLAN 802.1Q, QoS, guest traffic isolation, 300+ clients, Zero wait DFS feature
Management via UniFi Network App : version 6.5.55 or later
Important: These requirements must be met in order to adapt/use the Extender U6!
- Access points providing connectivity for the U6 Extender must be updated to version 6.0.11 or later.
- Dream Machine (UDM) must be updated to version 1.12.22 or later.
- Dream Router (UDR) must be updated to version 2.3.15 or later.
BASIC SPECIFICATIONS
Wi-Fi standards: 802.11a/b/g/n/ac/ax, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6
Transmission speed: 4.8 Gbps (5 GHz), 573.5 Mbps (2.4 GHz)
Antenna: internal, 5 dBi for 2.4 GHz, 6 dBi for 5 GHz
Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
Power supply: universal AC input, AC 100-240 V (50/60 Hz)
Weight: 340g
Dimensions: 169.7 x 112.2 x 77.6 mm
Manual (assembly instructions):
https://dl.ui.com/qig/u6-extender-eu
Datasheet:
https://dl.ui.com/ds/u6-extender-eu_ds.pdf
