Ubiquiti UniFi 6 Enterprise In-Wall - Wi-Fi 6E, 2.4/5/6GHz, 1x 2.5GbE, 4x GbE, PoE+/PoE++ (without PoE injector)

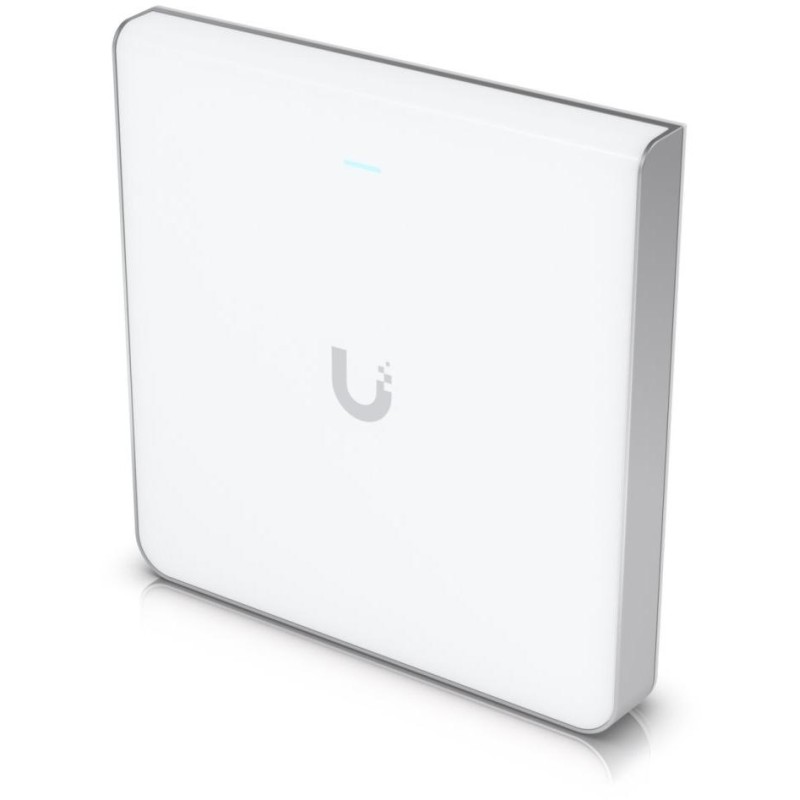

Ubiquiti UniFi 6 Enterprise In-Wall

The UniFi 6 Enterprise In-Wall (U6-Enterprise-IW) is a tri-band Wi-Fi 6E access point with support for 2.4/5/6 GHz frequency bands and up to 10.2 Gbps aggregate throughput. Its relatively small footprint and seamless coverage in high-density client environments make it ideal for business and commercial use.

UniFi 6 Enterprise In-Wall is a beautifully designed indoor hotspot solution using the 802.11ax (Wi-Fi 6E - Extended) standard and is equipped with a DL/UL MU-MIMO 4×4 antenna system with a channel width of up to 160 MHz for high-capacity connections (uplink/downlink). The AP stands out with its higher gain of 4 dBi (2.4 GHz), 5.8 dBi (5 GHz) and 5.8 dBi (6 GHz) antennas, which improves two-way communication between remote clients and the AP. The access point supports active PoE+/PoE++ 802.3at/bt power supply .

•

• Standard 802.11ax (Wi-Fi 6E), Extended (6 GHz band extension)

• 1× 2.5G RJ-45 & 4× GbE RJ-45

• 6 GHz band (DL/UL 4×4 MU-MIMO) with 4.8 Gbps throughput

• 5 GHz band (DL/UL 4×4 MU-MIMO) with 4.8 Gbps throughput

• 2.4 GHz band (UL 2×2 MU-MIMO) with 573.5 Mbps throughput

• PoE+/PoE++ power supply 802.3at/bt

• 1× PoE output 802.3af (44-57 V), requires PoE++ power supply

• Full use of 4×4 MU-MIMO technology and 160 MHz bandwidth

• Capacity of more than 600 concurrent clients

• Management via Ethernet or Bluetooth

• Guest Traffic Isolation - increases wireless network security and reduces the possibility of traffic congestion

• Management using UniFi Network Application version 7.2.85 and higher

• Support WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3), VLAN (802.1Q), Advanced QoS, Guest Traffic Isolation, Zero-wait DFS, BSSID


The package does not include a PoE injector!

UniFi devices can be configured and managed using the UniFi Network application, which is pre-installed on UniFi OS consoles (UniFi Dream Machine, Dream Router, Dream Wall, Express, Cloud Gateway Ultra, etc.). Alternatively, the freely available UniFi Network Server software is available for installation on your own computer or server (Windows, MacOS, Linux). The UniFi Network Server software is constantly being improved, so we recommend always using the latest version, which you can download from the Ubiquiti website in the Download section. You can also learn more about this product at the Ubiquiti training .

BASIC SPECIFICATIONS

Standard: 802.11a/b/g/n/ac/ax, Wi-Fi 4/5/6/6E

Antenna: integrated 3-band antenna

Operating frequency: 2.4 GHz, 5 GHz, 6 GHz

Data transfer rate: 573.5 Mbps (2.4 GHz), 4800 Mbps (5 GHz), 4800 Mbps (6 GHz)

PoE support: yes, active PoE+/PoE++ 802.3at/bt, 1× PoE output

Ports: 1× 2.5GRJ-45, 4×GbE RJ-45

Weight: 884g

Dimensions: 159.7 x 156.7 x 33.8 mm

Manual (assembly instructions):

https://dl.ui.com/qig/u6-enterprise-iw

Datasheet:

https://dl.ui.com/ds/u6-enterprise-iw_ds
