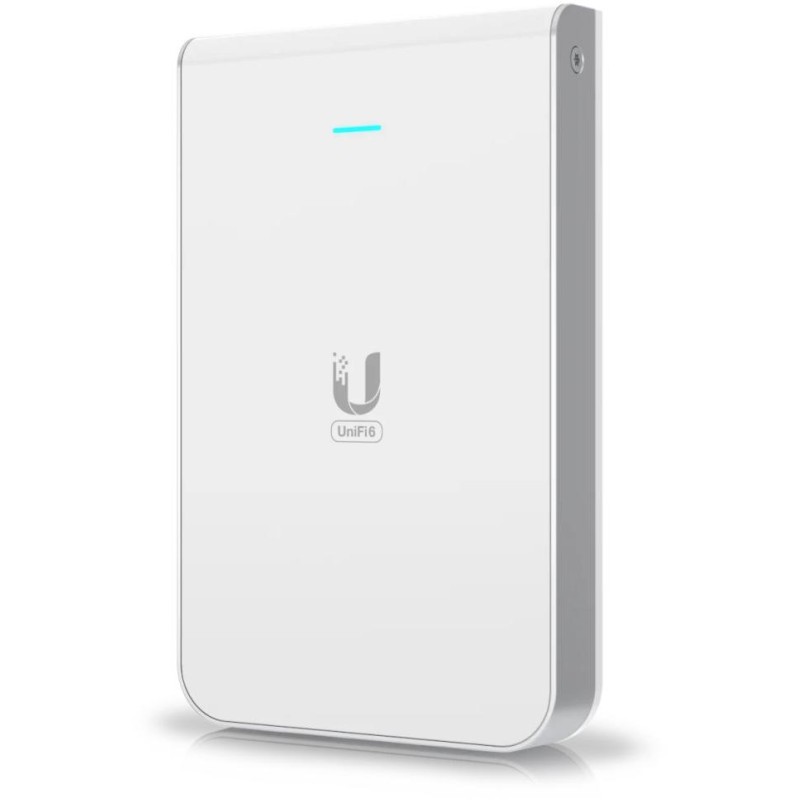

Ubiquiti UniFi 6 In-Wall
The UniFi 6 In-Wall (U6-IW) is a Wi-Fi AP with support for 2.4 GHz and 5 GHz frequency bands and a transfer rate (aggregate throughput) of 5.3 Gbps . The advantage is its small size, making it ideal for business or home use.
The UniFi 6 In-Wall is a hotspot solution using the 802.11ax (Wi-Fi 6) standard and is equipped with a 4x4 MU-MIMO antenna system (5 GHz) . The access point supports active PoE+ power supply 802.3af/at .
- 802.11ax (Wi-Fi 6) standard
- DL/UL MU-MIMO 4x4
- PoE/PoE+ power supply 802.3af/at
- 1x PoE output 802.3af (44-57 V), requires PoE+ power supply
- Management using UniFi Network app version 6.4.52 or later
The package does not include a PoE injector!
UniFi devices can be configured and managed using the UniFi Network application, which is pre-installed on UniFi OS consoles (UniFi Dream Machine, Dream Router, Dream Wall, Express, Cloud Gateway Ultra, etc.). Alternatively, the freely available UniFi Network Server software is available for installation on your own computer or server (Windows, MacOS, Linux). The UniFi Network Server software is constantly being improved, so we recommend always using the latest version, which you can download from the Ubiquiti website in the Download section. You can also learn more about this product at the Ubiquiti training .
BASIC SPECIFICATIONS
Standard: 802.11a/b/g/n/ac/ax
Antenna: integrated dual-band antenna
Operating frequency: 2.4 GHz, 5 GHz
Data transfer rate: 4.8 Gbps (5 GHz), 573.5 Mbps (2.4 GHz)
PoE support: yes, active PoE/PoE+ 802.3af/at, 1x PoE output
Ports : 5x GbE RJ-45
Dimensions: 139.66 x 96 x 31.19 mm
Manual (assembly instructions):
https://dl.ui.com/qig/u6-iw
Datasheet:
https://dl.ui.com/ds/u6-iw_ds.pdf
