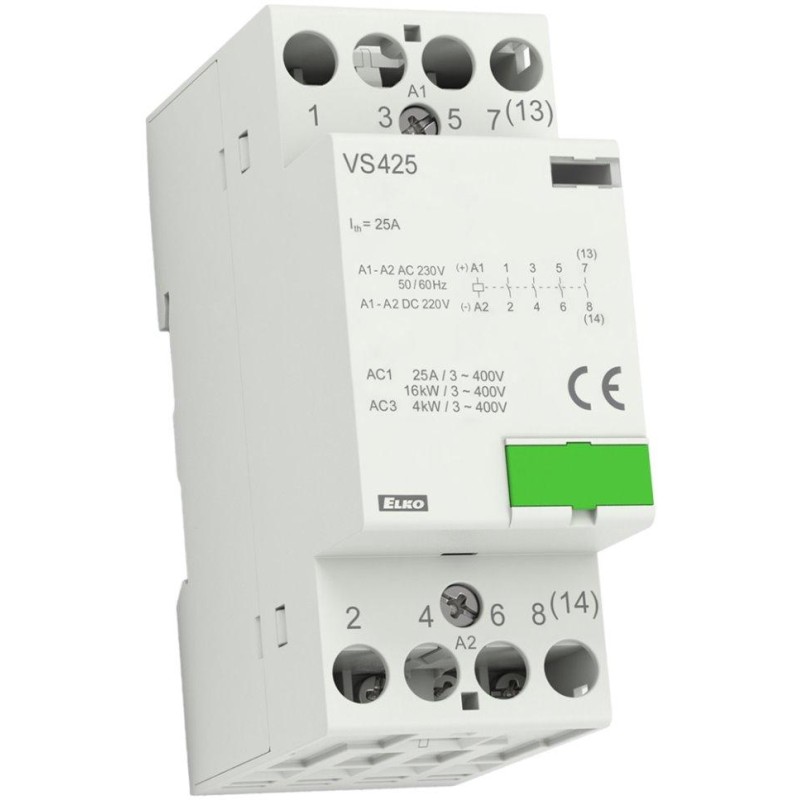

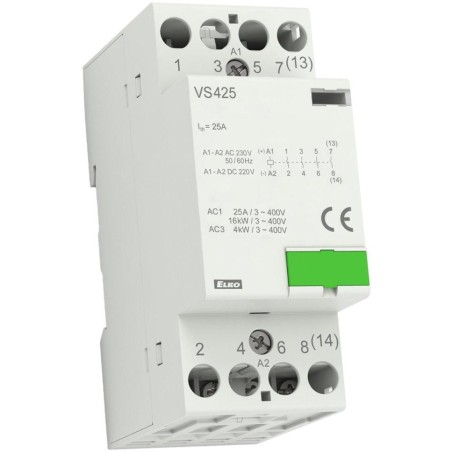

Solarmi VS425-04 Installation contactor 4x 25A 230V AC/DC

Xtend Solarmi VS425-04 installation contactor

Installation contactor 4x 25 A

It is used for switching electrical circuits, especially resistive loads and three-phase asynchronous motors.

•

• It is manufactured with various configurations of normally open and normally closed contacts.

• IP20 protection - Contactors are supplied with covers ensuring IP40 protection of all contactor terminals upon request.

• DIN rail or panel mounting.

• Standards: IEC 60947-4-1, IEC 60947-5-1, IEC 61095, EN 60947-4-1, EN 60947-5-1, EN 61095, EN 60947-1


BASIC SPECIFICATIONS

Max. load capacity: 25 A

Number of poles: 4

Rated insulation voltage (U _i ): 440 V

Rated thermal current l _th (in AC): 25 A

Coil control voltage: AC/DC 24 V, 48 V, 110 V, 230 V

Continuous coil power consumption +/- 10%: 3.8 VA / 3.8 W (for 04 - contact version)

Working temperature: -5 to +55 °C

Weight: 213g

Dimensions: 85 x 60 x 35 mm
