Solarmi pojistka válcová PV14 40A AM 500V 14X51
  • Solarmi pojistka válcová PV14 40A AM 500V 14X51
  • Solarmi pojistka válcová PV14 40A AM 500V 14X51

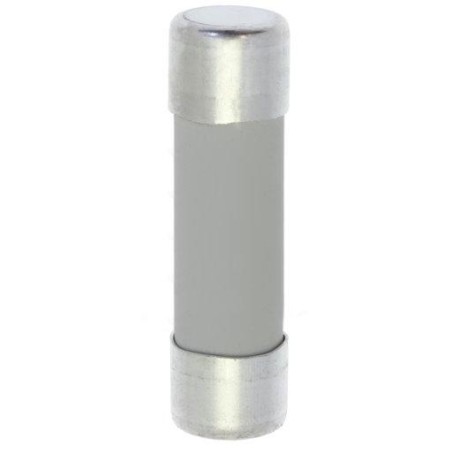

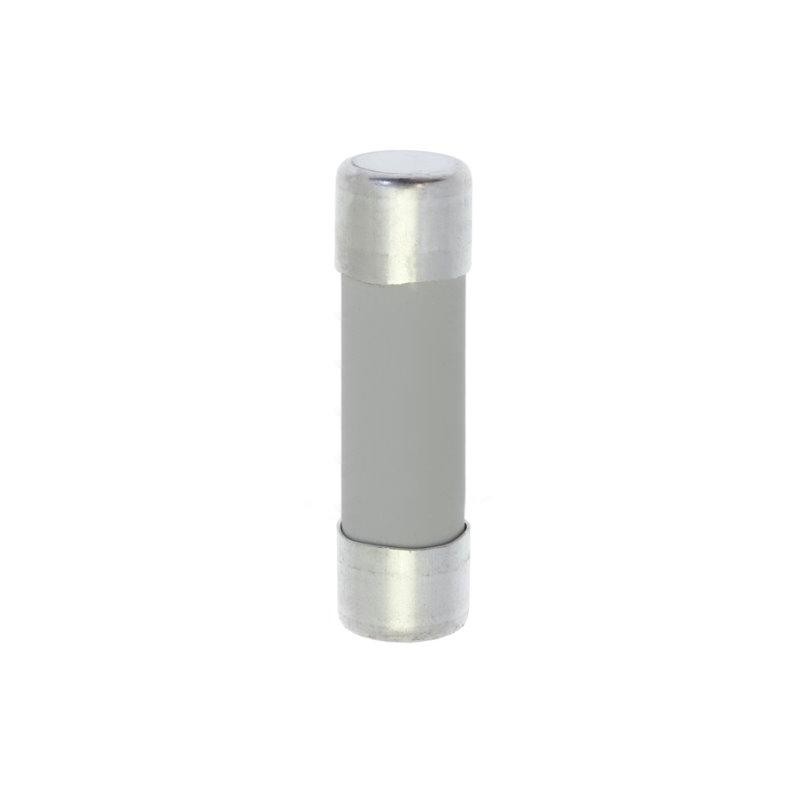

Solarmi cylindrical fuse PV14 40A AM 500V 14X51

ELEGWL0014
Grade
Write your review
Xtend Solarmi cylindrical fuse PV14 40A aM 14x51; Cylindrical fuse (power fuse insert) for fuse switch-disconnector type OPVP14. High limiting and breaking capacity; Breaking capacity...
€3.19
Tax included
€2.64 Tax excluded
i
The amount of VAT applied is 21% for the country Czechia.
Delivered in 5 days
Quantity
Available
2 Items

Ask about the product on WhatsApp


Business terms and conditions



Delivery policy



Return policy

help_outlineProduct inquiry by email
Description

Xtend Solarmi cylindrical fuse PV14 40A aM 14x51

Cylindrical fuse (power fuse insert) for fuse switch-disconnector type OPVP14.




  • High limiting and tripping capacity

  • Breaking capacity (rms value) - DC 50 kA and AC 120 kA

  • aM characteristic - Designed for protecting motors, overcurrent relays, contactors and similar devices only against short circuits.

  • Standards - IEC 60269 / ČSN 354701 / ČSN EN 60269

  • Manufacturer code: OEZ:06735



BASIC SPECIFICATIONS



Rated voltage U n : AC 500 V / DC 250 V

Rated current I n : 40 A

Losses: 2.32 W

Characteristics: aM

Selectivity: 1 : 1.6

Dimensions: 51 x 14.3 x 14.3 mm

Weight: 20g


Product Details
XTEND Solarmi
ELEGWL0014
8590125067351
2 Items

Data sheet

Warranty period for registration number (months)
26
Manufacturer
Xtend Solarmi
Warranty length (months)
26
Processed
Approved
Weight (kg)
0.02
Dimensions
51 × 14.3 × 14.3mm
Dropshipment - Alza
Yes
Operating temperature min. (°C)
-5
Operating temperature max. (°C)
55
Depth (mm)
14.3
Height (mm)
51
Width (mm)
14.3
Type of accessory
Fuse
Rated voltage (V)
250 (DC)
Zboží určeno pro
Commercial - pro profesionální použití
Grade
Write your review
Comments (0)
Grade

Price history

Our pricing is always guided by the principles of a fair price. We do not artificially move prices or brag about inflated percentages. You can always find price history for each product.

Lowest price in recent times 30 days was €3.17
