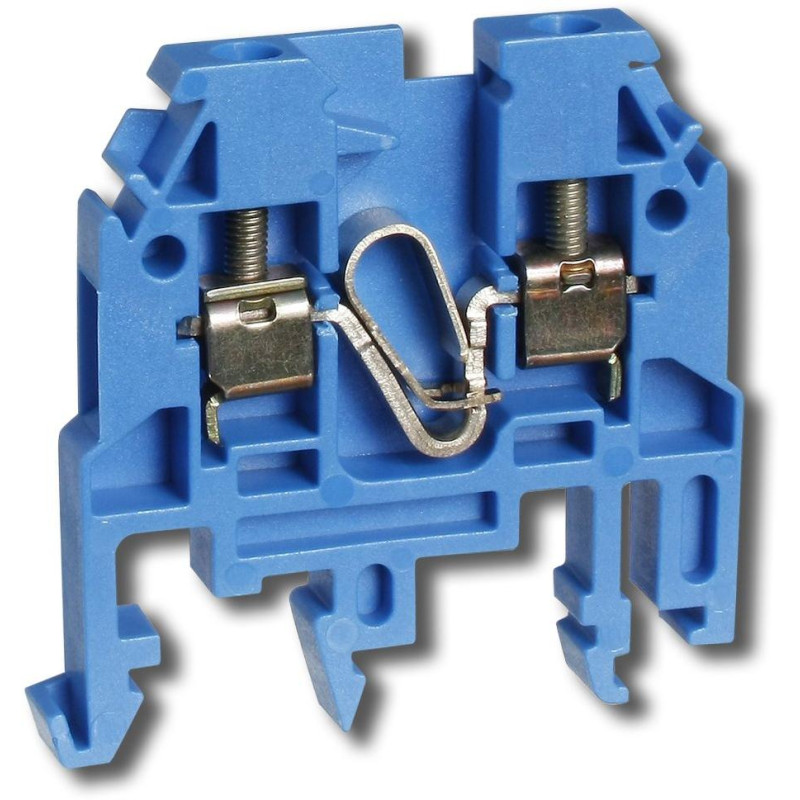

Solarmi series clamp RSA 2.5 A on DIN rail, blue

Xtend Solarmi series terminal RSA 2.5 A

RSA terminal blocks are intended for all segments of the electrical industry for connecting small and low voltage electrical circuits with copper or aluminum conductors. The terminals can be marked with continuous tapes, marking profiles or covers with warning symbols.

For general connection purposes, polarity distribution or power energy, various types of jumpers are available. For simple voltage control up to various checks (e.g. continuity, dielectric, etc.), measuring sockets are available. The terminals can be applied according to ČSN 33 2000-5-51 ed. 3 in environments with external influences AB 7, AF 2 .

Terminal blocks RSA 2.5 A to RSA 35 A are verified by climatic testing up to ambient temperatures of -40 to +105 °C . The terminals generally have IP 20 protection (RSA 35 A and RSA 70 A have IP 10).

•

• Connectable cross-section of fine stranded conductor without crimping end - 0.2 to 2.5 mm ²

• Connectable cross-section of solid wire - 0.2 to 2.5 mm ²

• Connectable cross-section of stranded conductor - 0.5 to 2.5 mm ²

• Mounting method - DIN rail 35 mm (TH 15, TH 35, G 32)

• Flammability class of the insulating material according to UL 94: V0 (self-extinguishing plastic - halogen-free)

• Standards: EN 60947-1 and 60947-7-1


All types use a heat-treated steel clamp with a galvanic surface treatment for reliable clamping of rigid or flexible copper or aluminium conductors (when using aluminium conductors in the terminals, proceed according to technical information TNI 37 0606). Flexible conductors do not need to be terminated with a ferrule.

BASIC SPECIFICATIONS

Nominal cross-section: 2.5 ^mm2

Rated current: 24 A (22 A if the connecting comb is applied)

Rated insulation voltage: 1000 V

Short-term withstand current: 300 A

Electrical connection type: threaded connection

Protection: IP20

Dimensions: 41.5 x 40.5 x 5 mm

Operating temperature: -40 to +105 °C

Material: plastic, PA 6 (V0)

Color: blue
