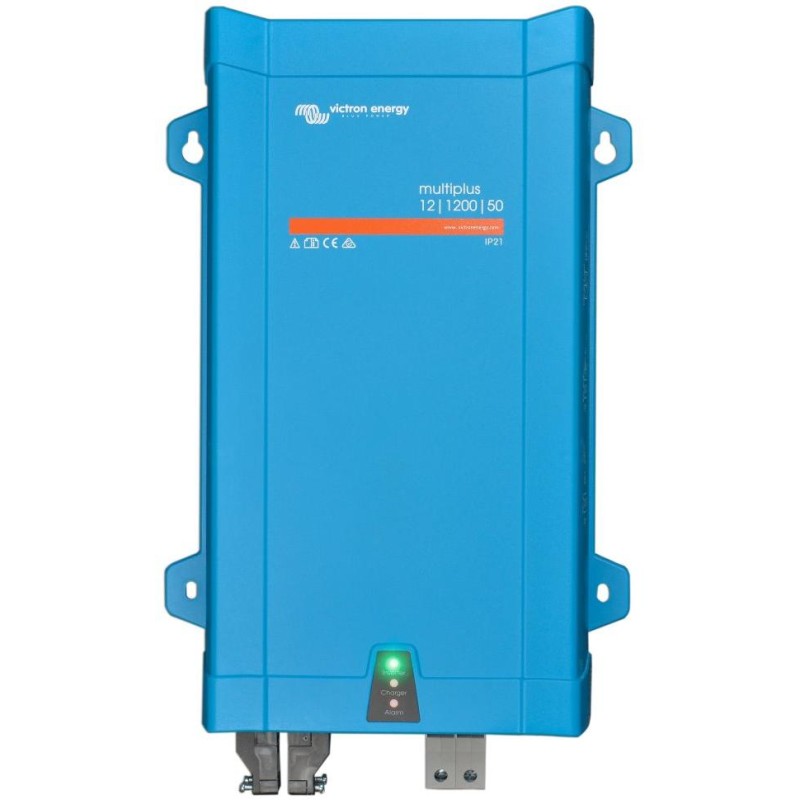

Victron MultiPlus hybrid inverter 12V/1200VA/50A-16A

Victron MultiPlus 12 V/1200 VA Multiplus is a powerful DC-AC hybrid inverter/charger with pure sine wave output, with integrated adaptive battery charger and ultra-fast power source transfer switch (battery - external AC source). The inverter is housed in a plastic compact housing in a completely new attractive design. Proven reliability Proven reliability of professional Victron Energy inverters with a full 5-year warranty. The inverter contains a robust toroidal transformer that has proven its reliability in Victron Energy inverters for many years. The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature. High starting power Required to start loads such as power inverters for LED lamps, halogen lamps or power tools. Programmable relay The Multiplus is equipped with a programmable relay, which is set as an alarm by default. The relay can be programmed for various other applications such as a generator starting relay. 1 AC input and 1 AC output Multiplus is equipped with one AC input (for the grid or generator) and one AC output. The AC output is equipped with a function that ensures uninterrupted power supply. Multiplus will take over the power supply of connected appliances in the event of a grid or generator failure. This happens so quickly (less than 20 milliseconds) that computers and other electronic devices will continue to function without interruption. If Multiplus is operating in island mode, i.e. without an external source, it takes all the energy from the battery or from the connected solar controller. As soon as we connect an external source (grid or generator) to the AC input, then the appliances will be powered from the external source and at the same time Multiplus will charge the battery. "Search" supervision mode When "Search" mode is switched on, the inverter's no-load power consumption is reduced by approx. 70%. In this mode, the Multiplus switches off in the event of zero or very low load. It then switches on for a short period every two seconds. If the output current exceeds the set level, the inverter switches on automatically and continues to operate. Four-stage charging with adaptive charger and two battery charging outputs The main output provides powerful battery charging via the "adaptive charging" system. The software controls the three-stage automatic charging process to suit the battery condition and adds a fourth charging stage - trickle charging. In addition, the Multi can charge a second battery using an independent charging output, e.g. for generator starter batteries. PowerControl - Solution for limited power from a generator or external source The digital control panel of the MultiPlus units allows you to set the maximum current of the generator or external source. The Multi then takes other AC consumers into account and uses all excess to charge and thus prevent overloading the generator or external power source. PowerAssist - Shore power or generator capacity boost This PowerControl feature allows the MultiPlus Compact units to supplement the power of an alternative source (shore power or generator) from the battery. Where peak power is only required for a limited period of time, this feature can be used to reduce the size of the generator required or conversely, this feature allows for short-term high power from the normally current-limited shore connection. Once the load is reduced, the excess power is used to recharge the battery. Parallel and three-phase operation Up to 6 inverters can operate in parallelě to achieve higher power. Operation in three-phase configuration is also possible. The PC communication interface MK3-USB is used to set parameters and to display the current status of the unit. The software for setting up Multi inverters can be found at this link: https://www.victronenergy.com/Executables/VEConfig/VECSetup_A.exe The drivers for the MK3-USB interface can be found at this link: https://www.victronenergy.com/Executables/VEConfig/CDM21216_Setup.exe BASIC SPECIFICATIONS Inverter Input voltage: DC 12 V (DC 9.5-17 V) Power: 1200 VA / 1000 W Output voltage: AC 230 V, 50 Hz (can be set to 60 Hz and 240 V) Transfer capacity: 16 A Weight: 8.2 kg Dimensions: 406 x 250 x 100 mm Charger Charging current: 50 A Input voltage: AC 187-265 V Output voltage (absorption/sustaining/storage): DC 14.4 / 13.8 / 13.2 V
