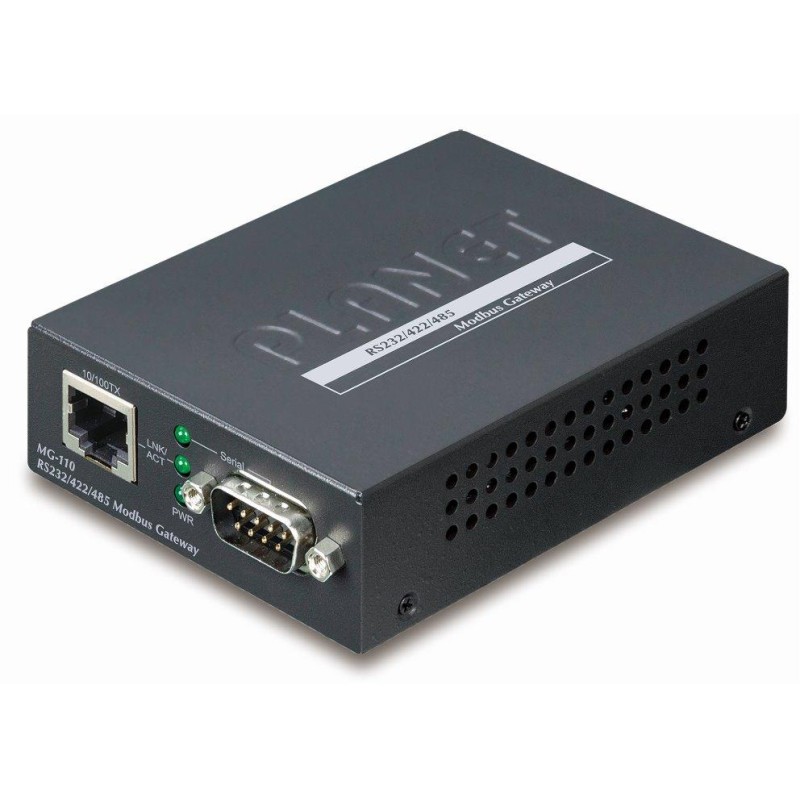

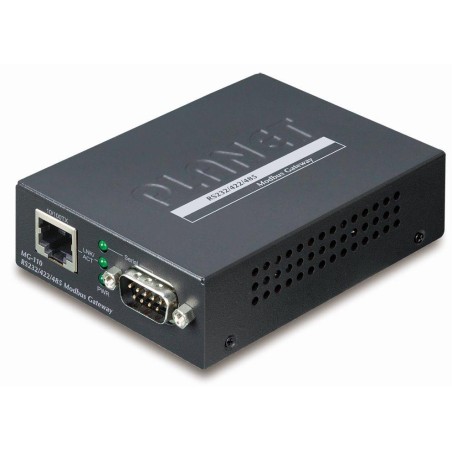

Planet MODBUS gateway RS-422/485 to IP, 1x COM, 100Base-TX, RTU/ACSII, -10~+60°C

PLANET MG-110

Industrial MODBUS gateway with RS-485/422 to TCP/IP protocol conversion. IP communication converter (LAN 10/100Mbit/s Ethernet) to RS-485 and RS-422 serial lines. Serial communication type is selectable RTU/ASCII, master/slave.

Power supply 5 V DC/ max. 2 A. ESD protection up to 6 KV, operating temperature -10 to +60 °C. Mounting on DIN rail or wall.

Serial communication transmission over IP protocol is particularly used for data acquisition, control machines and control of camera systems . It also replaces the physical conversion of the serial protocol to another transmission medium. It practically extends the range of serial communication indefinitely.

BASIC SPECIFICATIONS

Features:

•

• LED indicator array for operation diagnostics

• parity: even, odd, none, space, mark

• speed: 50 bps - 921 Kbps

• for master up to 32 slave TCP connections, for slave up to 32 master TCP connections


Physical properties:

Ports: 1 x RS-422/485, 1 x RJ-45 10/100BASE-TX

MODBUS support: yes

Design: DIN rail, wall-mounted

Power supply: external power supply 5 V DC, 2 A, power consumption max. 5.5 W

Protection: ESD up to 6 KV

Operating temperature: -10 to 60 °C

Dimensions: 97 x 70 x 26 mm

Weight: 184g

Can be installed in chassis: MC-700, MC-1500, MC-1500R

Administration functions:

Management: Web, Telnet, MB VCOM, SNMP v1, v2c

IP protocol version: IPv4

Diagnostics: Planet Smart Discovery automatic search utility

Operating mode: RTU master, RTU slave, ASCII master, ASCII slave

Signal connection

•

• RS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

• RS422: Tx+, Tx-, Rx+, Rx-, GND

• 4-wire RS485: Tx+, Tx-, Rx+, Rx-, GND

• 2-wire RS485: Data A (+), Data B (-), GND
