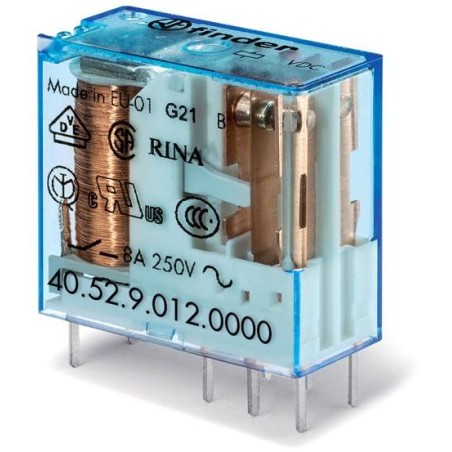

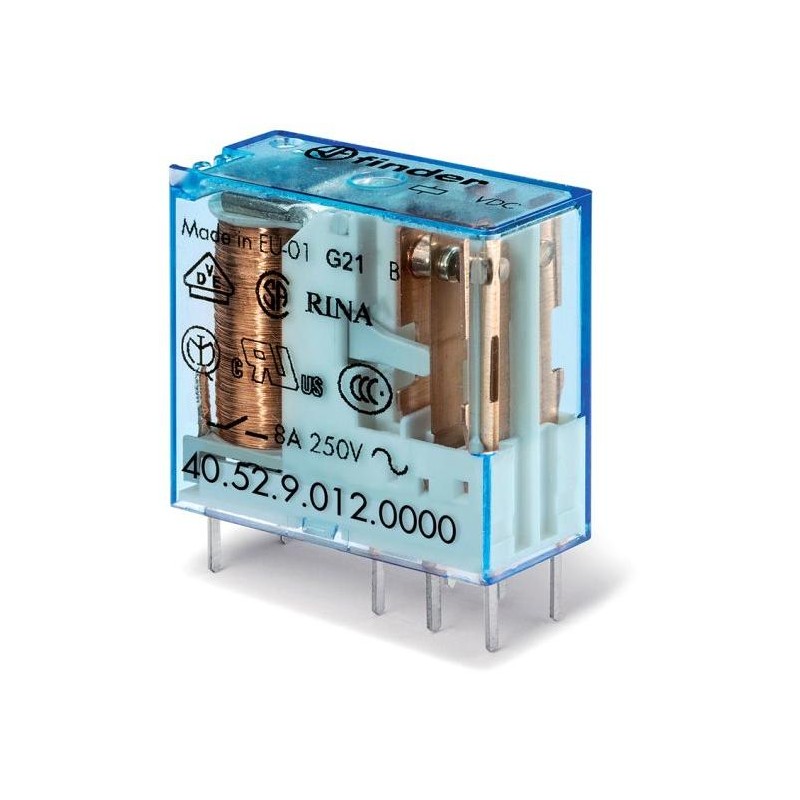

Solarmi relay Finder 40.52.9.012.0000 8A 12VDC

Xtend Solarmi Finder 40.52.9.012.0000

Standard power relay for socket and PS with large power reserves.


Diverse use thanks to contact material and coil selection , AC, DC and DC coils with increased sensitivity (500 mW), bistable design with one coil, safe separation according to ČSN EN 50178, ČSN EN 60204 and ČSN EN 60335 between coil and contact set, 6 kV (1.2/50 µs) , air gap and creepage distance 8 mm, 5 mm long terminals for reliable connection in the socket of the socket with screw or screwless terminals.

•

• Switching contact type: single contact

• Drive switching: monostable

• Drive, polarity: non-polarized


BASIC SPECIFICATIONS

Rated current: 8 A

Rated voltage: AC 250V

Rated control supply voltage Us DC: 12 V

Control voltage type: DC

Number of changeover contacts: 2

Number of normally closed contacts: 0

Number of switching contacts: 0

With forced contact guidance: no

Protection: IP20

Dimensions: 29 x 25 x 12.4 mm

Color: blue - transparent
