OlifeEnergy EV electric car charger BASE AC 2x 22kW, Doublebox, Type2, socket, RFID, car mode

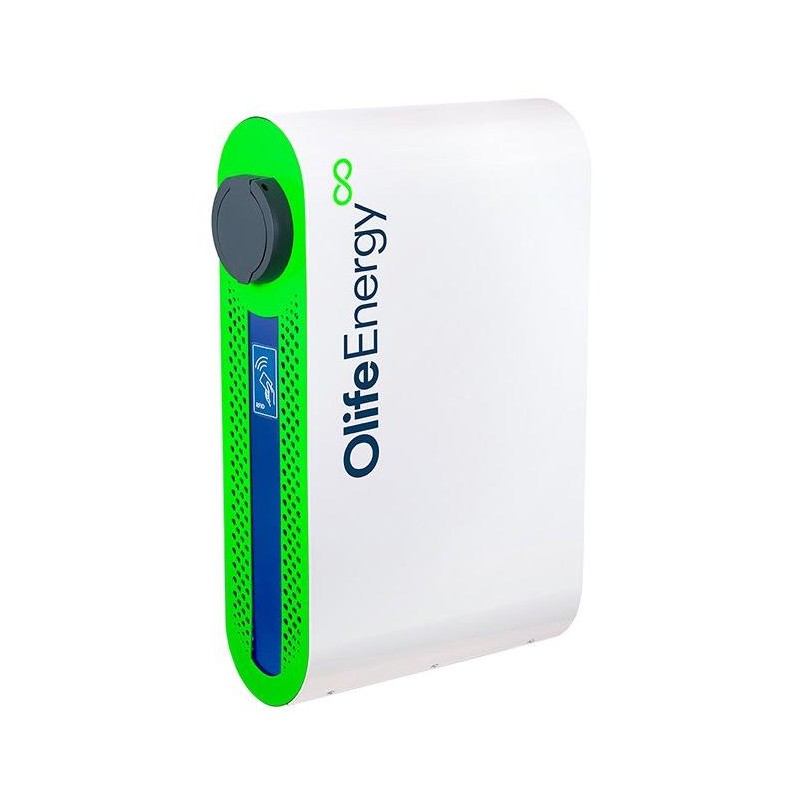

OlifeEnergy EV DoubleBox BASE 2× 22 kW

OlifeEnergy DoubleBox is a robust all-metal charging station that allows charging two electric cars with alternating current (AC) with a power of up to 44 kW (i.e. 22 kW for each of them). It is designed for indoor and outdoor use and can be mounted either on a wall or on a profile, or anchored to the ground using a post.

This WallBox is already equipped with a wide range of functionalities in the basic version. Charging can be started automatically immediately after connecting the vehicle and identifying it with an RfID card or mobile phone. Complete configuration is also carried out via the mobile app. The station power can be set in the range of 0 to 44 kW.

The station can be connected to a HDO, integrated into a smart home, connected to a battery storage or integrated with other control systems. Through the external OlifeEnergy SmartMeter unit (separate product), it is possible to dynamically control the power of the charging station to avoid tripping circuit breakers during high demand, and to charge from surplus solar energy or a low tariff.

•

• AC supply type: AC 3 + N + PE 400 V 50 Hz, TN-S / AC 3 + PEN 400V 50 Hz, TN-C

• Max. cable cross-section: 25 mm ²

• Control: local – automatic, RFID, mobile application (Bluetooth)

• Residual protection: 2× four-pole type A residual current device + residual DC current detection according to IEC 62955

• Communication: Bluetooth, Modbus RTU (over RS-485), ADC 0–10 V


BASIC SPECIFICATIONS

Power: 2× 22 kW

Input voltage: 3× 400 V

Input current: 0-63A

Connection type according to ČSN EN 61851: Type B

Output: 2× Type 2 (according to ČSN EN 62196), socket

Protection category: IP54

Operating temperature: -25 to +40 °C

Dimensions: 550 × 385 × 140 mm

Weight: 18.5 kg (net, packaging + 2 kg)
