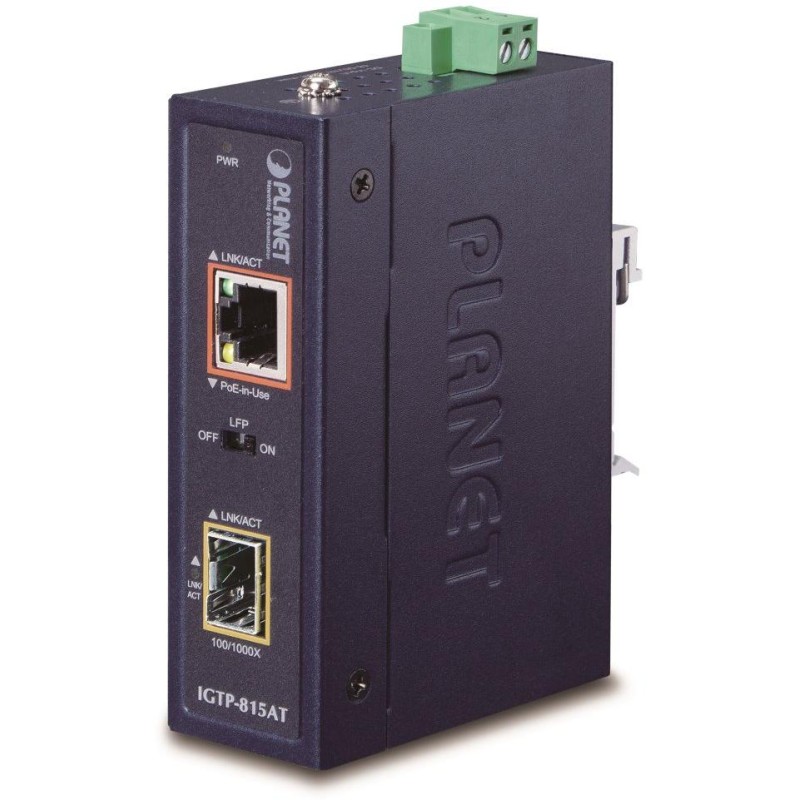

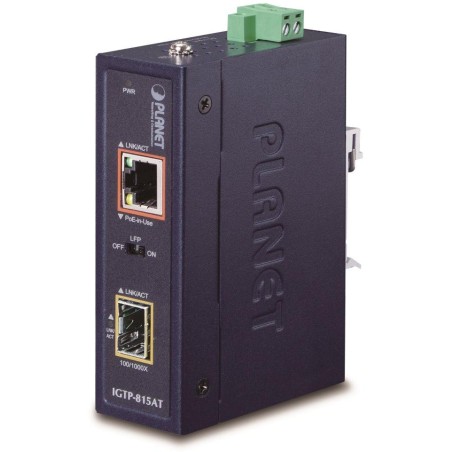

PLANET IGTP-815AT
Industrial PoE+ converter for easy transition between metallic and optical lines ( 100/1000 Base-X to 10/100/1000 Base-T ). The converter is designed for industrial and FTTH/FTTC/FTTB applications.
Power supply in the range of DC 48-56 V , PoE+ output with a power of up to 36 W , IP30 protection, metal housing, extended operating temperature -40 to +75 °C .
Surge ESD protection up to ±6 kV (±8 kV air). DIN rail or wall mounting.
Industrial Ethernet devices are designed for harsh operating conditions with a wide range of operating temperatures and frequent shocks. The converter is easily installed on a standard DIN rail or directly on the wall and allows the deployment of well-known Ethernet technology even in industrial environments. It is also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications of the FTTH type).
BASIC SPECIFICATIONS
Physical properties:
Ports: 1x RJ-45 10/100/1000 Base-T with PoE+ function, 1x SFP 1000 Base-SX/LX/BX
Transmission support: Frame 9 KB
Design: DIN rail, wall-mounted
Power supply: DC 48-56 V power supply, total power consumption without PoE+ up to 1.12 W (power supply not included)
Protection: ESD air up to 8 kV, contact up to 6 kV, reverse polarity protection
Operating temperature: -40 to +75 °C
Dimensions: 104 x 70 x 30 mm
Weight: 251g
Can be installed in a chassis: no
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by high-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
