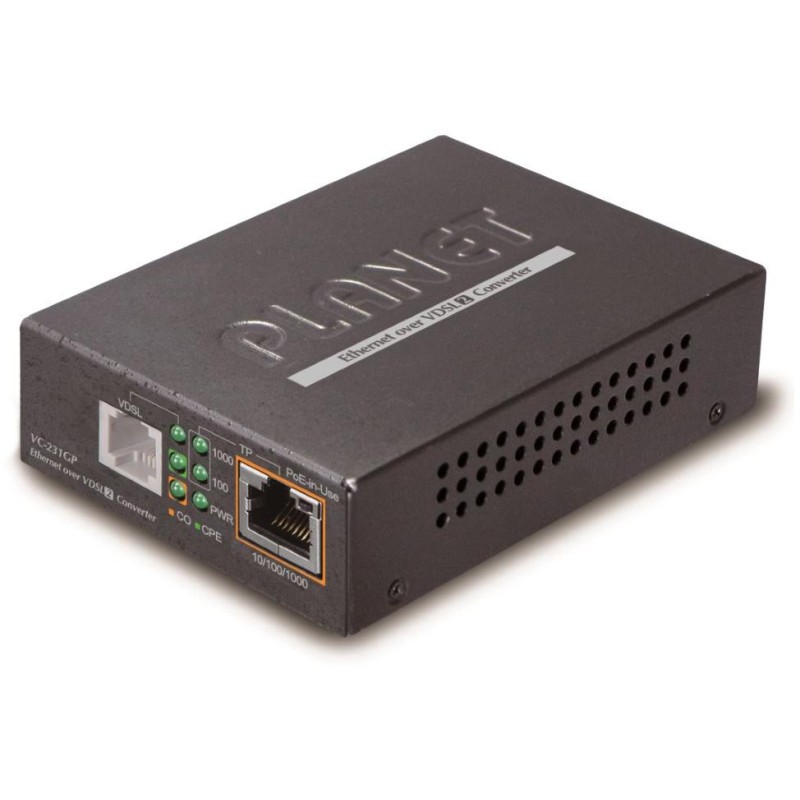

PLANET VC-231GP
PoE converter for Ethernet over two-wire lines (VDSL2/ADSL2+ technology). 1× LAN RJ-45, 1× VDSL2 RJ-11, splitter for POTS connection.
DIP switch settings. Master/Slave option. Transparent bridge. Range 1.4 km (AWG24 or better). Power supply DC 54 V/ 0.74 A (power supply included).
DSL/Ethernet bridge that enables high-speed communication over a two-wire line. Transparently converts Ethernet. The same device can be used as both master (CO) and slave (CPE). Does not interfere with telephone communication, has a built-in crossover filter for the speech frequency band.
Parameters set by four DIP switches on the device: CPE/CO selection, modulation selection, symmetrical/asymmetric operation, SNR selection.
It complies with ITU-T G.993.2 VDSL2 Profile 17a standards (frequency band 0.13-17.66 MHz).
With the help of an external splitter, voice service can be maintained on the telephone line without further wiring modifications. This allows the use of telephone cable lines originally intended for connections not only to subscribers but also between analog exchanges.
ISPs (internet service providers) are thus enabled to offer multimedia services, VOD (video on demand), VoIP (voice over IP), Video phone, IPTV, etc.
Can be installed in the MC-700/1500/1000R chassis.
This product is not compatible with the PLANET VC-201A converter.
BASIC SPECIFICATIONS
Physical properties:
Port 1: 10/100/1000BASE-T RJ45 (IEEE 802.3af /802.3at PoE Injector 30 W)
Port 2: RJ11, xDSL port with VDSL2 or ADSL2+ connection
Design: internal
Power supply: external DC 54 V, 0.74 A power supply (power supply included)
Protection: 6 KV DC Ethernet ESD
Operating temperature: 0 to 50°C
Weight: 206g
Dimensions: 97 × 70 × 26 mm
Ranges for two-wire downstream/upstream:
Interleave, Asymmetric, 8dB
200 m ----> 190 Mbps / 90 Mbps
400 m ----> 163 Mbps / 64 Mbps
600 m ----> 110 Mbps / 34 Mbps
800m ----> 73Mbps / 18Mbps
1000m ---> 49Mbps / 10Mbps
1200m ---> 39Mbps / 8Mbps
1400m ---> 25Mbps / 6Mbps
Interleave, Sym, 8dB
200 m ---> 149 Mbps / 141 Mbps
400 m ---> 116 Mbps / 115 Mbps
600m ---> 72Mbps / 70Mbps
800m ---> 45Mbps / 44Mbps
1000 m --> 26 Mbps / 16 Mbps
1200 m --> 26 Mbps / 12 Mbps
1400 m --> 29 Mbps / 12 Mbps
G.INP, Asymmetric, 8dB
200m ---> 192Mbps / 93Mbps
400m ---> 159Mbps / 64Mbps
600m ---> 106Mbps / 37Mbps
800m ---> 68Mbps / 19Mbps
1000 m --> 49 Mbps / 8 Mbps
1200 m --> 29 Mbps / 8 Mbps
1400 m --> 26 Mbps / 6 Mbps
G.INP, Sym, 8dB
200 m ---> 150 Mbps / 150 Mbps
400 m ---> 114 Mbps / 113 Mbps
600m ---> 69Mbps / 69Mbps
800m ---> 49Mbps / 39Mbps
1000 m --> 27 Mbps / 24 Mbps
1200 m --> 26 Mbps / 12 Mbps
1400 m --> 21 Mbps / 11 Mbps
Interleave, Asymmetric, 12dB
200m ---> 177Mbps / 83Mbps
400m ---> 145Mbps / 57Mbps
600m ---> 92Mbps / 31Mbps
800m ---> 59Mbps / 15Mbps
1000 m --> 44 Mbps / 10 Mbps
1200 m --> 32 Mbps / 6 Mbps
1400 m --> 22 Mbps / 3 Mbps
Interleave, Sym, 12dB
200 m ---> 136 Mbps / 129 Mbps
400 m ---> 100 Mbps / 101 Mbps
600m ---> 58Mbps / 57Mbps
800m ---> 42Mbps / 36Mbps
1000 m --> 23 Mbps / 12 Mbps
1200 m --> 23 Mbps / 10 Mbps
1400 m --> 17 Mbps / 11 Mbps
G.INP, Asymmetric, 12dB
200m ---> 177Mbps / 85Mbps
400m ---> 144Mbps / 51Mbps
600m ---> 87Mbps / 29Mbps
800m ---> 55Mbps / 15Mbps
1000 m --> 40 Mbps / 8 Mbps
1200 m --> 38 Mbps / 8 Mbps
1400 m --> 26 Mbps / 4 Mbps
G.INP, Sym, 12dB
200 m ----> 136 Mbps / 133 Mbps
400m ----> 97Mbps / 102Mbps
600m ----> 54Mbps / 56Mbps
800m ----> 40Mbps / 35Mbps
1000 m --> 24 Mbps / 22 Mbps
1200 m --> 24 Mbps / 9 Mbps
1400 m --> 18 Mbps / 12 Mbps
