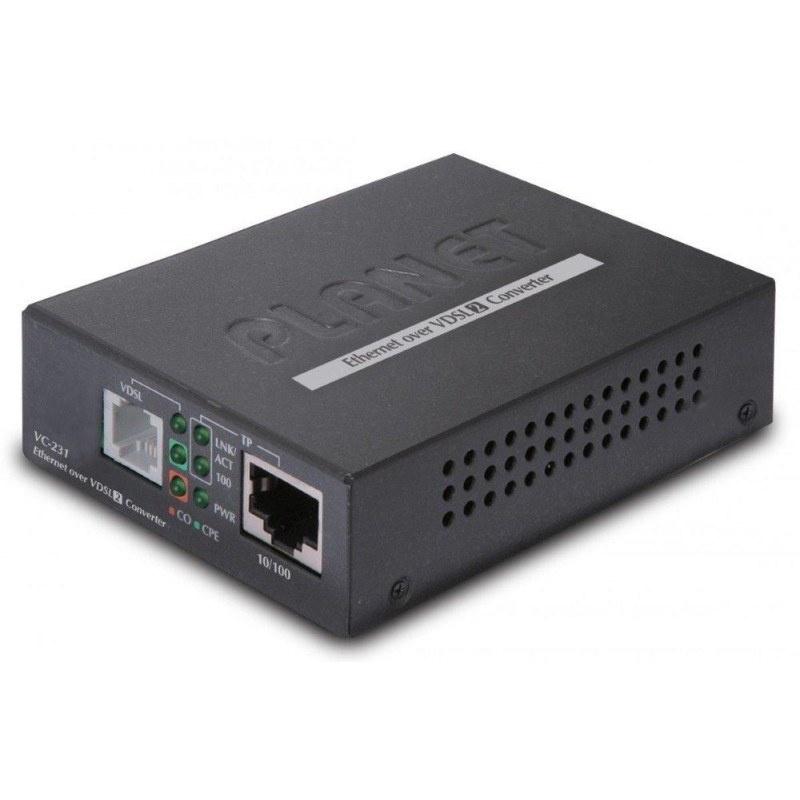

PLANET VC-231
Ethernet over telephone line (VDSL2 technology). 1× LAN RJ-45, 1× VDSL2 RJ-11 connector. 100/100 Mbps at 300 m. Power supply DC 5 V/ 2 A (power supply included).
Transparent bridge. Range up to 1.4 km. DIP switch settings. Optional Master (CO) / Slave (CPE). Possible operation on VDSL O2 line.
The powerful LRE (Long Reach Ethernet) converter from Ethernet to VDSL2 (Very-high-data-rate Digital Subscriber Line 2) allows data to be transmitted over a symmetrical pair of wires at speeds of up to 100 Mbit/s over 300 m or 50/2 Mbps over distances of up to 1.4 km. The device is universal as a master (CO) / slave (CPE) unit, mode setting via a switch. The unit supports VDSL2 operating modes 17a, 30a and also "band Plan997" affecting symmetrical data transmission at higher speeds.
With the help of an external splitter, voice service can be maintained on the telephone line without further wiring modifications, data traffic is simply associated with the existing voice traffic. This allows the use of telephone cable lines originally intended for connections not only to subscribers but also between analog exchanges.
This allows the ISP (internet service provider) to offer multimedia services, VOD (video on demand), VoIP (voice over IP), Video phone, IPTV, etc. The router can be successfully operated over O2's VDSL lines.
This product is not compatible with the PLANET VC-201A converter.
BASIC SPECIFICATIONS
Ports:
1× 10/100Base-TX, RJ-45
1× VDSL, RJ-11
Transmission support: JumboFrame 1K MAC addresses
Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Transparent for: IEEE 802.1Q VLAN tag
Standard: ITU-T G.993.1, ITU-T G.997.1, ITU-T G.993.2
DIP switching: CPE/CO selection, modulation selection, communication limit selection, SNR selection
Power supply: from external adapter, 5 V/2 A (power supply included)
Operating temperature: 0 to 50°C, humidity <90%
Dimensions: 97 × 70 × 26 mm
Weight: 199g
Can be installed in chassis: MC-700, MC-1500, MC-1500R
Ranges and speeds on lines with AWG24 and better conductors: 17a profile (Downstream / Upstream) - 200m -> 86/65Mbps
- 400m -> 86/52Mbps
- 600m -> 81/36Mbps
- 800m -> 72/19Mbps
- 1000m -> 60/9Mbps
- 1200m -> 59/6Mbps
- 1400m -> 49/2Mbps
30a profile (Downstream / Upstream) - 300m -> 100/100Mbps
- 400m -> 90/90Mbps
- 600m -> 61/40Mbps
- 800m -> 54/8Mbps
Settings for O2 VDSL connection
modem in CPE mode; additional DIP switches FEC, VDSL profile, SNR according to line quality (standard FEC=Fast, VDSL=30a, SNR=9dB)
in the router on the WAN interface apply VLAN ID:848
set PPPoE client over WAN, Login: O2/O2
Also pay attention to the settings of your router, its firewall, access rights, UPnP, etc.
