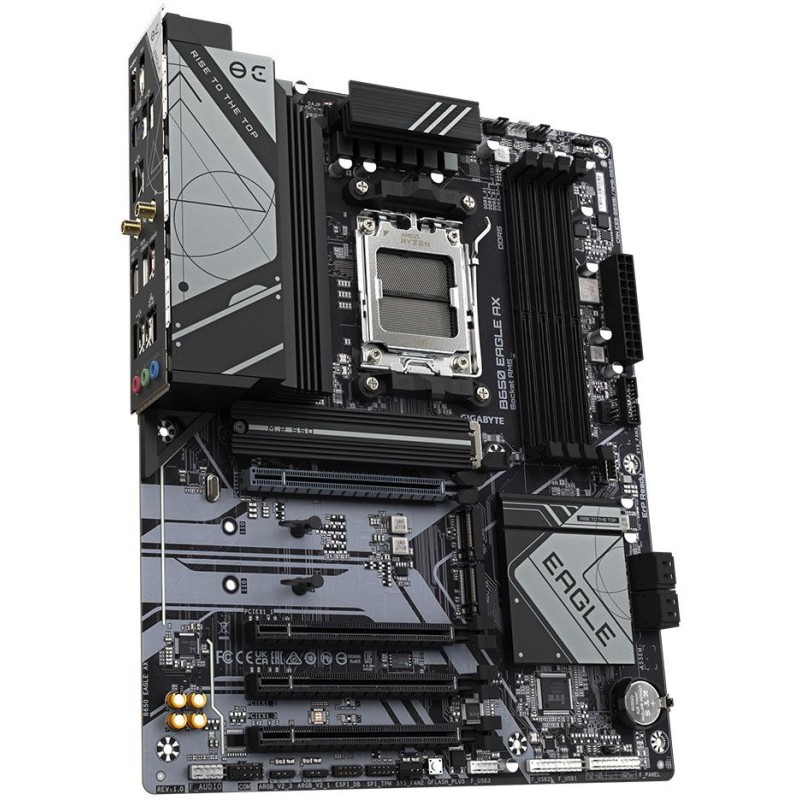

GIGABYTE B650 EAGLE AX
The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.
CPU
Support for AMD Ryzen 9000/8000/7000 series processors (Socket AM5)
Chipset
AMD B650
Memory
4× DDR5 memory slots, support up to 256 GB
Support DDR5 8000 (OC)/ 7800 (OC)/ 7600 (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5600 (OC)/ 5200/ 4800 MT/s
Dual-channel memory architecture
Support non-ECC, unbuffered (1Rx8/ 2Rx8/ 1Rx16)
Support for AMD EXtended Profiles for Overclocking (EXPO)
Extreme Memory Profile (XMP) support
Slots
AMD CPU
1× PCIe 4.0 x16 slot
The Ryzen 8000 Phoenix 1 series CPU supports PCIe 4.0 x8 mode
The Ryzen 8000 Phoenix 2 series CPU supports PCIe 4.0 x4 mode
2× PCIe 3.0 x16 slot (supports x1 mode)
AMD B650 chipset
1× PCIe 3.0 x16 slot (supports x1 mode)
Graphic arts
1× HDMI 2.1 port, supporting max. resolution 4096 × 2160 at 60 Hz
1× DisplayPort 1.4 port, supporting max. resolution 3840 × 2160 at 144 Hz
Storage
AMD CPU
1× M.2 slot, M Key, for units of type 25110/22110/2580/2280 (PCIe 5.0 x4/x2 mode)
Ryzen 8000 series CPU supports PCIe 4.0 x4/x2 mode
1× M.2 slot, M Key, for 22110/2280 type units (PCIe 4.0 x2 mode)
AMD B650 chipset
1× M.2 slot, M Key, for 22110/2280 type units (PCIe 4.0 x4/x2 mode)
4× SATA 6Gb/s ports
RAID 0, RAID 1, and RAID 10 support for SATA and M.2 NVMe drives
USB
AMD CPU
2× USB 3.2 Gen2 (USB 3.1) ports on the back panel
1× USB-C 3.2 Gen1 (USB 3.0) port on the back panel
4× USB 2.0 ports on the rear panel
AMD B650 chipset
2× USB 3.2 Gen1 (USB 3.0) ports available via internal USB connector
1× USB-C 3.2 Gen1 (USB 3.0) port available via internal USB connector
8× USB 2.0 ports (2 ports on the back panel, 6 ports available via internal USB connectors)
Audio
Realtek Audio Codec
2/4/5.1/7.1 channel High Definition Audio
HIND
1× Realtek Gigabit LAN controller
WLAN/Bluetooth
Wi-Fi 802.11a/b/g/n/ac/ax
Triple Band (2.4 GHz, 5 GHz, 6 GHz)
Bluetooth 5.3
Internal connectors
1× 24pin ATX main power connector
1× 8pin ATX 12V power connector
1× CPU fan connector
1× CPU fan/water cooling pump connector
2× system fan connector
1× system fan/water cooling pump connector
3× addressable RGB Gen2 LED strip connector
1× RGB LED strip connector
3× M.2 slots, M Key
4× SATA 6Gb/s connector
1× front panel connector
1× front panel audio connector
1× USB-C 3.2 Gen1 (USB 3.0) connector
1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)
3× USB 2.0 connector (supports 6× USB 2.0 port)
1× TPM connector (supports GC-TPM2.0 SPI/ GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI v2 module)
1× Q button-Flash
1× serial port connector
1× Clear CMOS jumper
Rear panel connectors
2× Wi-Fi antenna connector
1× DisplayPort
1× HDMI
1× PS/2 keyboard and mouse combo port
1× USB-C 3.2 Gen1(USB 3.0)
2× USB 3.2 Gen2 (USB 3.1)
6× USB 2.0
1× RJ-45
3× audio jacks
Dimensions
30.5 × 24.4 cm
ATX format
