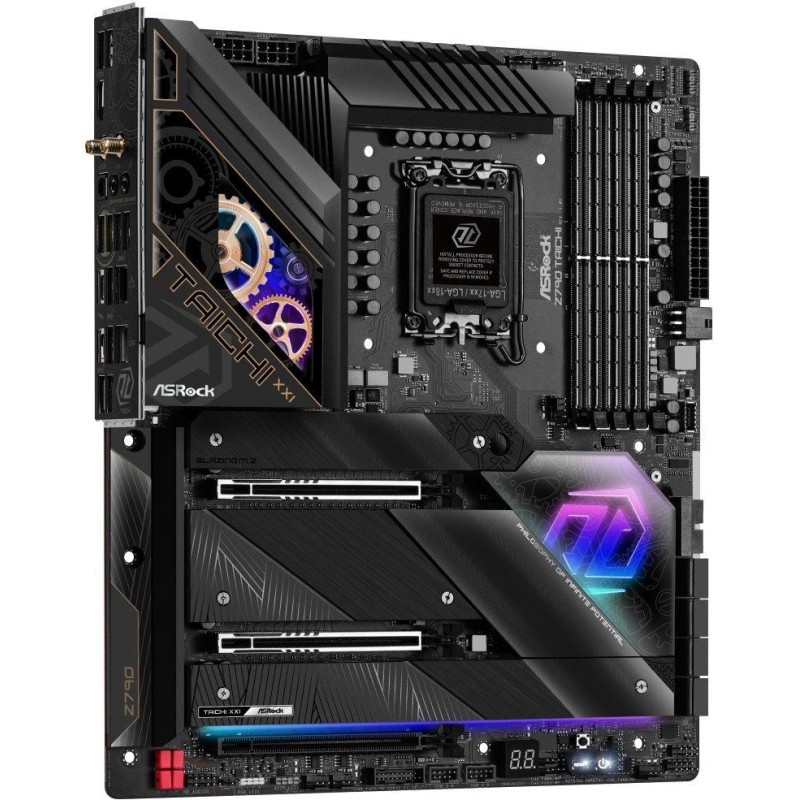

ASRock Z790 Taichi
The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.
CPU
Support for 13th and 12th generation Intel Core/ Pentium Gold/ Celeron processors
LGA1700 socket
Chipset
Intel Z790
Memory
4× DDR5 memory slots, support up to 192 GB
DDR5 support up to 7000+ (OC) MHz
Dual-channel memory architecture
Support non-ECC, unbuffered memory
Intel Extreme Memory Profile (XMP) 3.0 support
Slots
Intel CPU
2× PCIe 5.0 x16 slot (supports x16 or x8/x8 mode)
Intel Z790 chipset
1× PCIe 4.0 x16 slot (supports x4 mode)
Graphic arts
1× HDMI port, supporting max. resolution 4K at 60 Hz
2× Thunderbolt 4 (USB-C) ports, supporting max. resolution 8K at 60 Hz
Multi-GPU
AMD CrossFire technology support
Storage
Intel CPU
1× Blazing M.2 slot, M Key, for 2280 type units (PCIe 5.0 x4 mode)
1× Hyper M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4 mode)
Intel Z790 chipset
3× Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
8× SATA 6Gb/s ports
Intel Volume Management Device (VMD) support
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives
RAID 0, RAID 1, and RAID 5 support for M.2 NVMe drives
USB
2× Thunderbolt 4 (USB-C) ports on the back panel
1× USB-C 3.2 Gen2×2 port available via internal USB connector
2× USB 3.2 Gen2 (USB 3.1) ports on the back panel
10× USB 3.2 Gen1 (USB 3.0) ports (6 ports on the back panel, 4 ports available via internal USB connectors)
6× USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)
Audio
Realtek ALC4082 Codec
5.1 channel High Definition Audio
ESS SABRE9218 DAC for front panel (130 dB SNR)
Nahimic audio
HIND
1× Killer E3100G 2.5Gigabit LAN controller
Killer DoubleShot Pro support
1× Intel I219V Gigabit LAN controller
WLAN/Bluetooth
Killer Wi-Fi 6E
Wi-Fi 802.11a/b/g/n/ac/ax
Dual-Band 2×2 160 MHz (2.4 GHz, 5 GHz, 6 GHz)
MU-MIMO support
Killer DoubleShot Pro support
Bluetooth 5.3
Internal connectors
1× SPI TPM connector
1× speaker connector and Power LED
1× RGB LED strip connector
3× addressable LED strip connector
1× 4pin CPU fan connector
1× 4pin CPU/water cooling fan connector
6× 4pin chassis/water cooling fan connector
1× 24pin ATX main power connector
2× 8pin 12V power connector
1× 6pin 12V power connector
1× front panel audio connector
2x USB 2.0 connector (supports 4x USB 2.0 port)
2× USB 3.2 Gen1 (USB 3.0) connector (supports 4× USB 3.2 Gen1 ports)
1× USB-C 3.2 Gen2×2 front panel connector
1× Clear CMOS button
1× Dr. Debug with LED
1× Power button with LED
1× Reset button with LED
Ports on the backno
2× Wi-Fi antenna connector
1× HDMI
1× optical S/PDIF output
2× Thunderbolt 4 (USB-C)
2x USB 3.2 Gen2 (USB 3.1 Gen2)
6× USB 3.2 Gen1 (USB 3.0)
2× USB 2.0
2× RJ-45
2× audio jacks
Dimensions
30.5 × 26.7 cm
E-ATX format
