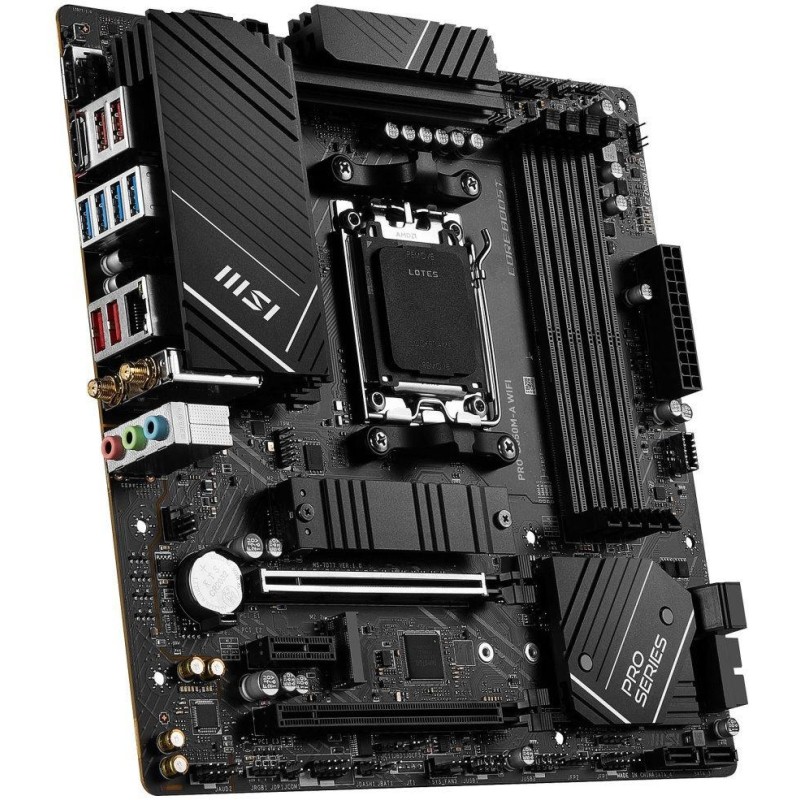

MSI PRO B650M-A WIFI
The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.
CPU
Support for AMD Ryzen 7000 series processors (Socket AM5)
Chipset
AMD B650
Memory
4× DDR5 memory slots, support up to 192 GB
Support DDR5 6400+ (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200 (OC)/ 5000 (OC)/ 4800 MHz (JEDEC)
Dual-channel memory architecture
Support non-ECC, unbuffered memory
Support for AMD EXtended Profiles for Overclocking (EXPO)
Slots
AMD CPU
1× PCIe 4.0 x16 slot
AMD B650 chipset
1× PCIe 4.0 x16 slot (supports x4 mode)
1× PCIe 3.0 x1 slot
Graphic arts
1× HDMI port, supporting max. resolution 4K at 60 Hz
1× DisplayPort port, supporting max. resolution 4K at 60 Hz
Storage
AMD CPU
2× M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
AMD B650 chipset
4× SATA 6Gb/s ports
RAID 0, RAID 1 and RAID 10 support for SATA drives
RAID 0 and RAID 1 support for M.2 NVMe drives
USB
1× USB-C 3.2 Gen2 port available via internal USB connector
4× USB 3.2 Gen2 ports on the back panel
6× USB 3.2 Gen1 (USB 3.0) ports (4 ports on the back panel, 2 ports available via internal USB connector)
4× USB 2.0 ports available via internal USB connectors
Audio
Realtek ALC897 Codec
7.1 channel High Definition Audio
HIND
1× Realtek 8125BG 2.5Gigabit LAN controller
WLAN/Bluetooth
AMD Wi-Fi 6E
Wi-Fi 802.11a/b/g/n/ac/ax
Triple Band (2.4 GHz, 5 GHz, 6 GHz)
MU-MIMO TX/RX support
Bluetooth 5.2
Internal connectors
1× 24pin ATX main power connector
1× 8pin 12V power connector
1× 4-pin ATX 12V power connector
4× SATA 6Gb/s connector
2× M.2 slot, M Key
1× USB-C 3.2 Gen2 connector
1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)
2x USB 2.0 connector (supports 4x USB 2.0 port)
1× 4pin CPU fan connector
1× 4pin water cooling fan connector
3× 4-pin system fan connector
1× front panel audio connector
2x system panel connector
1× chassis opening detection connector
1× connector for TPM module
1× serial port connector
1× Tuning controller connector
1× Clear CMOS jumper
1× Safe Boot jumper
2× 4-pin RGB LED connector
2× 3-pin connector ARGB_V2 LED
4× EZ Debug LEDs
Rear panel connectors
1× DisplayPort
1× HDMI
4× USB 3.2 Gen1 (USB 3.0)
4x USB 3.2 Gen2 (USB 3.1 Gen2)
1× RJ-45
1× Flash BIOS button
2× Wi-Fi antenna connector
3× audio jacks
Dimensions
24.3 × 24.3 cm
Micro ATX format
