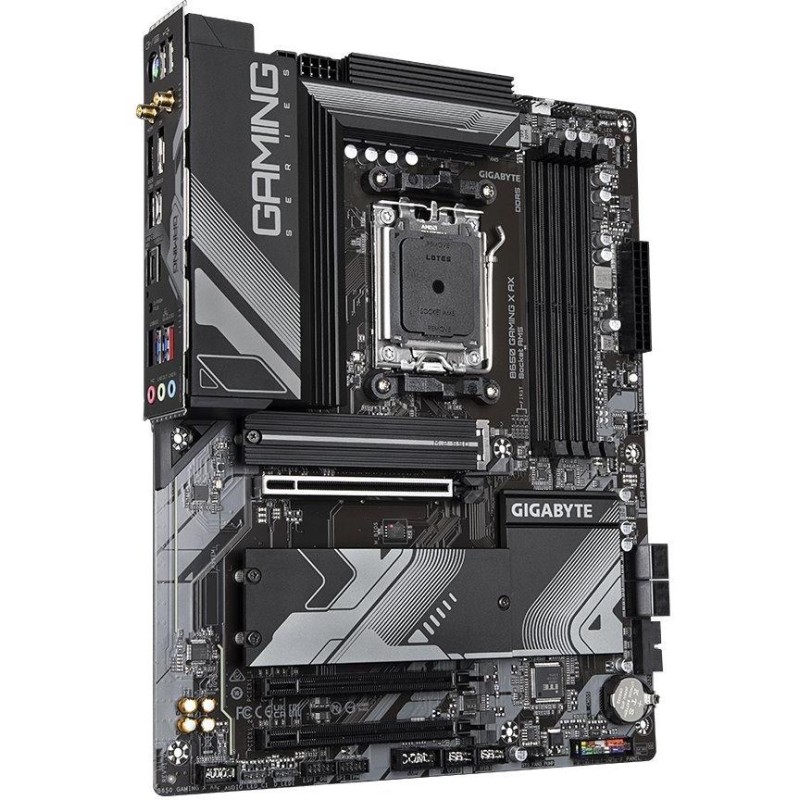

GIGABYTE B650 GAMING X AX
The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.
CPU
Support for AMD Ryzen 7000 series processors (Socket AM5)
Chipset
AMD B650
Memory
4× DDR5 memory slots, support up to 192 GB
Support DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400MHz
Dual-channel memory architecture
Support non-ECC, unbuffered, 1Rx8/2Rx8/1Rx16
Support for AMD EXtended Profiles for Overclocking (EXPO)
Extreme Memory Profile (XMP) support
Slots
AMD CPU
1× PCIe 4.0 x16 slot
AMD B650 chipset
2× PCIe 3.0 x16 slot (supports x1 mode)
Graphic arts
1× HDMI port, supporting max. resolution 4096 × 2160 at 60 Hz
1× DisplayPort port, supporting max. resolution 3840 × 2160 at 144 Hz
Storage
AMD CPU
2× M.2 slot, M Key, for 2280/25110 type units (PCIe 4.0 x4/x2 mode)
AMD B650 chipset
1× M.2 slot, M Key, for 2280/25110 type units (PCIe 4.0 x4/x2 mode)
4× SATA 6Gb/s ports
RAID 0, RAID 1 and RAID 10 support for SATA drives
RAID 0, RAID 1 and RAID 10 support for PCIe drives
USB
AMD B650 chipset
1× USB-C 3.2 Gen2×2 port available via internal USB connector
4× USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 2 ports available via internal USB connector)
4× USB 2.0 ports available via internal USB connectors
AMD CPU
1× USB 3.2-C Gen2 port on the back panel
1× USB 3.2 Gen2 Type A port on the back panel
1× USB 3.2 Gen1 (USB 3.0) port on the back panel
3× USB 2.0 ports on the rear panel
Audio
Realtek Audio Codec
2/4/5.1/7.1 channel High Definition Audio
HIND
1× Realtek 2.5Gigabit LAN controller
WLAN/Bluetooth
The board comes with one of the following Wi-Fi modules:
AMD Wi-Fi 6E RZ616 (MT7922A22M)
Wi-Fi 802.11a/b/g/n/ac/ax
Dual Band (2.4GHz, 5GHz)
Data transfer speed up to 2.4 Gbps
Bluetooth 5.2
Intel Wi-Fi 6E AX210
Wi-Fi 802.11a/b/g/n/ac/ax
Triple Band (2.4 GHz, 5 GHz, 6 GHz)
Data transfer speed up to 2.4 Gbps
Bluetooth 5.3
Internal connectors
1× 24pin ATX main power connector
1× 8pin ATX 12V power connector
1× 4pin ATX 12V power connector
1× CPU fan connector
1× CPU water cooling fan connector
2× system fan connector
1× system fan/water cooling pump connector
2× addressable LED strip connector
2× RGB LED strip connector
1× CPU cooler LED strip/RGB LED strip connector
3× M.2 slots, M Key
4× SATA 6Gb/s connector
1× front panel connector
1× front panel audio connector
1× USB-C 3.2 Gen2×2 connector
1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)
2x USB 2.0 connector (supports 4x USB 2.0 port)
1× TPM connector (supports(only supports GC-TPM2.0 SPI and GC-TPM2.0 SPI 2.0 modules)
1× serial port connector
1× Reset button
1× Reset jumper
1× Clear CMOS jumper
Rear panel ports
1× PS/2 keyboard and mouse combo port
2× Wi-Fi antenna connector
1× Q-Flash Plus button
1× DisplayPort
1× HDMI
1× USB-C 3.2 Gen2
1× USB 3.2 Gen2 (USB 3.1 Gen2)
3× USB 3.2 Gen1 (USB 3.0)
3× USB 2.0
1× RJ-45
3× audio jacks
Dimensions
30.5 × 24.4 cm
ATX format
