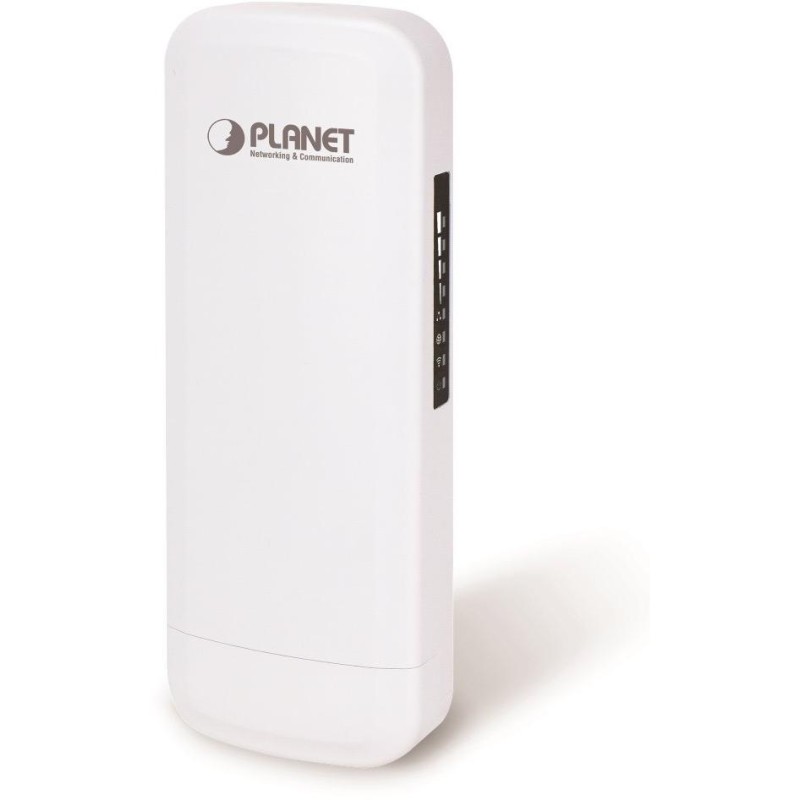

PLANET WBS-502N
Outdoor wireless access point with integrated router . It has a 15 dBi integrated dual-polarized antenna for stable reception.
The access point is based on 5 GHz radio technology of the 802.11a/n standard and thus achieves transfer speeds of up to 300 Mbps . In addition, there is a single button to switch the unit to WDS mode, which significantly reduces the time required to set up the unit.
There are also two RJ-45 ports with a speed of 10/100 Mbps , one of which is equipped with PoE+ technology of the 802.3af/at standard , through which the entire unit is effectively powered.
WAN connection support DHCP, static IP and PPPoE.
The unit is resistant to adverse environmental influences according to IP55 certification.
BASIC SPECIFICATIONS
Wi-Fi and connectivity specifications:
Wi-Fi standard and transmission support: IEEE 802.11a/ns with transmission speeds up to 300Mb/
Number of antennas and their power: 15 dBi integrated dual polarized
Transmitting power: 20 dBm
Interface: 2x 10/100Mbps RJ-45 ethernet (WAN and LAN)
Spanning Tree Protocol support: no
Wireless transmission encryption: WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X
Wireless modes: Access Point, Gateway, Repeater, WDS (AP/Bridge/Station), WISP
Max. connected clients: up to 64 wirelessly (50 recommended)
Multiple SSIDs: up to 4 networks
IAPP: no
Integrated DHCP server: yes
Client isolation support: yes
MAC address filtering: yes
Management: yes, web-based device management, management via PLANET DDNS/Easy DDNS, UPnP support, IGMP Proxy, PPTP/L2TP/IPSec VPN Pass-through, SNMP v1/v2c/v3, MIB I/II, Private MIB
Physical properties:
Operating temperature: -20 to 70°C
Power supply: 12 V/1 A DC jack, or 48 V/0.5 A DC for IEEE 802.3af/at PoE+, power consumption <13 W
Dimensions: 260 x 87 x 38 mm
Weight: 405g
The devices are supplied in accordance with the operating conditions of technologies in the Czech Republic in the 5GHz band and are subject to General Authorization No. VO-R/12/09.2010-12 and the Telecommunications Act.
The device is equipped with automatic regulation, which the user can turn off. The user can also change the frequency profile settings. The user can do this via a special URL in the device's web interface (hw_domain_reg.htm). Typically, this involves changing the list of available frequencies according to the ETSI and FCC standards.
However, this does not relieve the user of the obligation to set the device to comply with VO-R:
- 5.2GHz band: 5150~5250MHz with automatic regulation: max 200 mW (23 dBm) without regulation: max 100 mW (20 dBm);
- 5.3GHz band: 5250~5350MHz with automatic regulation: max 200 mW (23 dBm) without regulation: max 100 mW (20 dBm);
- 5.4GHz band: 5450~5725MHz with automatic regulation: max 1 W (30 dBm) without regulation: max 500 mW (27 dBm);
- 5.8GHz band: 5725~5875MHz, max. power 25 mW with built-in antenna or antenna specified by the manufacturer.
According to the wording of the VO, it is specified under letter g) that automatic regulation must regulate by at least -3 dB. Automatic regulation is not mandatory; if the device does not have regulation, then it is sufficient to calculate the radiated power by 3 dB lower for use.
