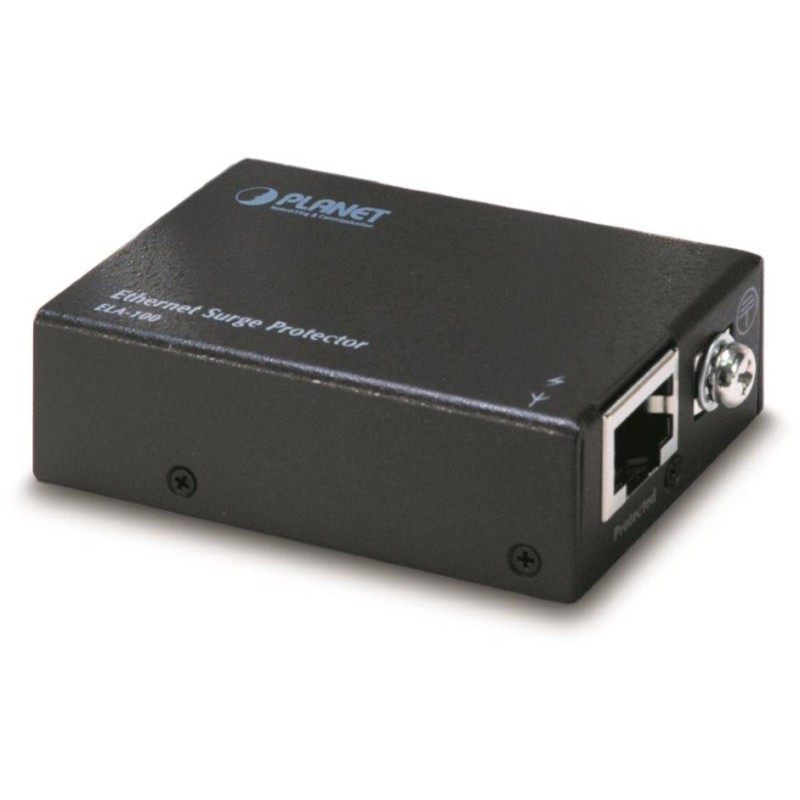

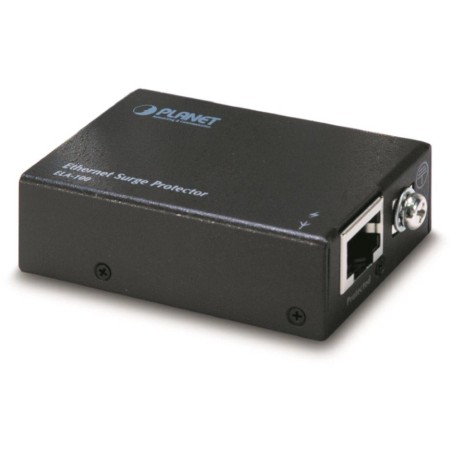

Planet Surge protector for UTP/FTP lines, ground wire, 100/1000Mbit, protects all four pairs, supports PoE

PLANET ELA-100

Protects UTP/FTP cables against surges, can also transmit power including PoE (IEEE 802.3af/at). Supports 100/1000Mbit. Protects all four pairs.

Surge protection with four gas discharge arresters (each protecting one pair).

BASIC SPECIFICATIONS:

Interface: 2 x RJ-45, 1 x grounding screw

Insulation resistance: greater than 10 MOhm

Line resistance: ~0 Ohm

Dimensions: 64 x 42 x 20 mm

Weight: 80g

Features:

•

• voltage for starting discharge: 230 V +/- 20% (start-up 100 V/s), at 100 V/us impulse 400 V, at 1 kV/us impulse 500 V

• can be used with PoE

• voltage can be transmitted, voltage over 60 V is not recommended and voltage over 180 V cannot be transmitted


Surge protection only works with good grounding! Pay attention to the transition resistance and the condition of the building's grounding conductors!

Lifespan:

•

• for electrostatic discharges at least 10000x (wave 1/60 ns up to 5 A)

• 300x at discharge current 10/1000 µs 1 A

• 10x 50 Hz for 1s at a current of 10 A (e.g. accidentally connected to a 230 V power supply network)

• 10x at discharge current 8/20 µs at 20 kA (typically atmospheric lightning discharge or its indirect effect)

• 2x at a discharge current of 10/350 µs at 5 kA (typically when the arrester is directly hit by an atmospheric lightning discharge)
