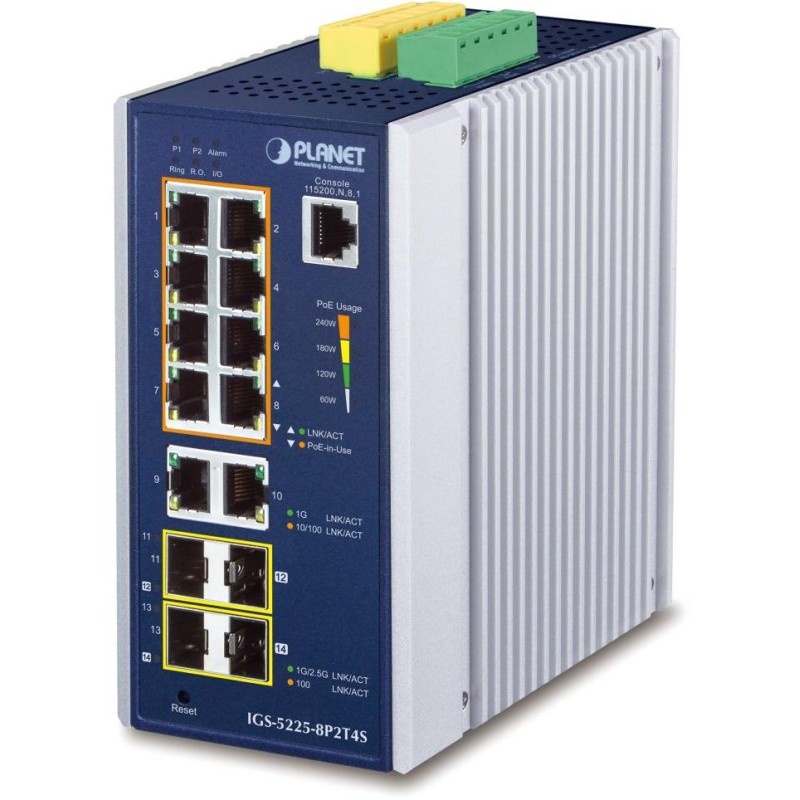

PLANET IGS-5225-8P2T4S
Manageable IPv4/IPv6 switch with security features and PoE+ support 8x 802.3at/af (36 W/port max., budget up to 240 W). 2x 1G SFP, 2x 2.5G SFP (1000/2500 Base-X, compatible with 100 Base-X), 10x RJ-45 10/100/1000 Base-T, 1x RJ-45 serial port (RS-232 console)
Dual power supply in the range of DC 48-56 V (at least 51 V recommended when using PoE), IP30 protection, aluminum housing, operating temperature -40 to +75 °C , ESD surge protection up to 6 kV , DI/DO (2x digital input, 2x digital output), 1x alarm (power supply), mounting on a DIN rail or directly on the wall.
Web/Telnet/SNMP(v1/v2c)/console management,
SSH v2, TLS v1.2, SNMP v3 , L3 static routing (L2+), VLAN, 802.1Q, ACL filter, QoS, bandwidth manager, control by IP/MAC/Ethertype/protocol/VLAN/DSCP/802.1p filters, LACP line aggregation, IGMP v1/v2/v3, 802.1x, RADIUS, TACACS+,
Modbus TCP, ERPS Ring Data Recovery time <10ms (ITU-T G.8032), support for 1588 PTP v2 Transparent Clock , support
for ONVIF for cooperation with video IP surveillance devices.
The latest version of the switch offers new cybersecurity features and, thanks to the support of Modbus TCP/IP, the switch can be easily integrated into SCADA, HMI and other systems. Other new features include DHCP server, Unidirectional Link Detection (UDLD), GARP VLAN Registration Protocol (GVRP), Remote Mirroring and more.
Industrial Ethernet switches are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply, and frequent shocks.
The IGS series switches are easily installed on a standard DIN rail or directly on the wall, enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 10x GbE RJ-45, 2x 1G SFP, 2x 2.5G SFP, 1x RJ-45 console serial port
Memory: 8k MAC addresses, 4 Mb buffer
Throughput: 34 Gbps bus, operational 25.3 Mpps (64B)
Transmission support: JumboFrame 9kB
IP protocol version: IPv4, IPv6
Design: DIN rail, wall-mounted
Power supply: redundant, DC 48-56 V, power consumption up to 7 W without PoE (power supply not included)
Protection: ESD up to 6 kV DC
Operating temperature: -40 to +75 °C, humidity up to 95%
Dimensions: 152 x 107.3 x 76.8 mm
Weight: 1.1 kg
Administration functions:
Management: Console, Web, Telnet, SNMP v1/v2c + support SSH v2, TLS v1.2, SNMP v3
Access Control: ACL based on IP/MAC/Ethertype/protocol/VLAN/DSCP/802.1p, up to 256 rules
L3 static routing: 32 rules, 8 VLAN interfaces
ACL filter and bonding:
IP ACL, traffic filtering by IP address and other attributes
MAC ACL, filtertraffic control by MAC address and other attributes
ACL according to Ethertype/protocol/VLAN/DSCP/802.1p
QoS traffic prioritization: 8 levels, traffic prioritization by port, DSCP/ToS in IP packet, 802.1p or 802.1Q tags (VLAN tag)
VLAN support:
IEEE 802.1Q
up to 4k VLAN groups, up to 4094 VLAN IDs
Q-in-Q tunneling (802.1ad)
Private VLAN Edge (PVE)
Protocol-based VLAN
MAC-based VLAN
VLAN Translation
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Spanning Tree Protocol:
STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring: RX, TX, RX+TX, many to one
Link aggregation: IEEE 802.3ad LACP/Static Trunk, 6 groups of 4 ports per group
IGMP multicast: IGMP v1/v2/v3, up to 255 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x, RADIUS, MAC
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes (SFP-DDM - Digital Diagnostic Monitor)
PoE function:
Total power output: max. 240 W (depending on power supply), IEEE 802.3at/af
Power: DC 52-56V (802.3at), max. 36W/port; DC 48-51V (802.3af), max. 15.4W/port
Number of injectors: 8
Power supply type: End-span
Advanced features:
PD Alive Check
automatic detection of powered device
integrated scheduler for planned shutdown of powered end elements
PoE monitoring and management
PoE Extend mode
