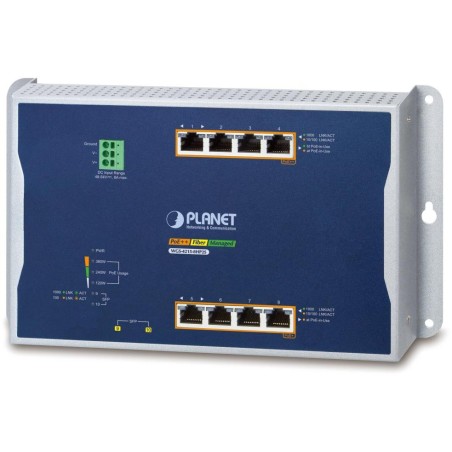

PLANET WGS-4215-8HP2S
Manageable industrial PoE++ switch with advanced L2+/L4 switching and security .
8x 10/100/1000 Base-T RJ-45 with PoE power supply 802.3af/at/bt (4x 802.3af/at + 4x 802.3bt), 2x 100/1000 Base-X SFP , dual mode and DDM support, switch capacity 20 Gbps, throughput 14.88 Mpps (64 byte packets), 8k MAC addresses, 4.1 Mb buffer, 10 K JumboFrame support, PoE++ power supply 802.3bt/at/af, up to 95 W/port (UPoE mode), total PoE budget 360 W , support for extend power mode up to 160 m.
Wall installation, metal design IP30 , ESD protection up to 8 kV, fanless, DC 48-56 V power supply (max. 8 A) .
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 8x 10/100/1000 Base-T RJ-45, 2x 100/1000 Base-X SFP
Memory: 8k MAC addresses, 4.1 Mb buffer
Throughput: 20 Gbps bus, operational 14.88 Mpps
Transmission support: JumboFrame 10 KB
IP protocol version: IPv4, IPv6
Design: wall-mounted
Power supply: DC 48-56 V, total power consumption up to 382 W (4 W without PoE) (power supply not included)
Protection: ESD up to 8 kV
Operating temperature: -40 to +75 °C, humidity up to 95%
Dimensions: 245 x 140 x 36 mm
Weight: 853g
PoE function: Total power output: 360 W, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, UPoE mode, Force mode
Number of injectors: 4x up to 95 W, 4x up to 36 W
Power type: End-span, Mid-span, UPoE mode, Force mode
Advanced features:
integrated scheduler for scheduled shutdown of powered end elements (PoE schedule)
detection of activity of powered devices using ICMP
power control for each PoE port
possibility of defining priority and power limit
automatic detection of powered device (PD)
Administration functions:
Management: Telnet, Web, SSH, TLS, SNMP v1/v2c/v3
Access Control: IP and MAC based ACL protocol
QoS traffic prioritization: 8 levels, traffic prioritization by port, DSCP in IP packet, 802.1p or 802.1Q VLAN tag
VLAN support:
IEEE 802.1Q
up to 256 VLAN groups, 4094 VLAN IDs
Q-in-Q tunneling (802.1ad)
VLAN protocol
Private VLAN
Voice VLAN
GVRP
Spanning Tree Protocol:
STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
STP BPDU Guard, BPDU Filtering, and BPDU Forwarding
ERPS (Ethernet Ring Protection Switching): yes, ITU-T G.8032 ERPS, for critical network applications
Port mirroring: RX, TX, both, many-to-one, up to four sessions
Link aggregation: IEEE 802.3ad LACP/Static Trunk, 1 trunk group with 2 ports per group
IGMP multicast: IGMP v2/v3, up to 256 groups, support mode IGMP Querier mode
MLD Snooping: MLD v1/v2, up to 256 groups
DHCP Snooping: yes (blocking foreign DHCP servers), support for DHCP Option82
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes, SFP-DDM (Digital Diagnostic Monitor)
