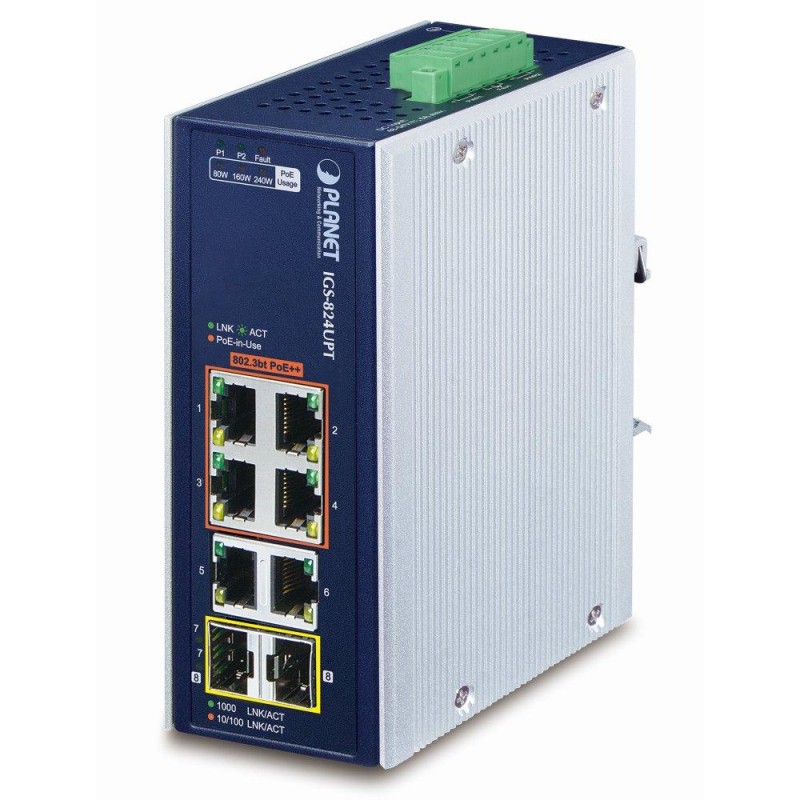

PLANET IGS-824UPT
The industrial switch offers 6x RJ-45 10/100/1000Base-T ports, four of which support PoE++ 802.3bt power supply up to 90 W per port and 2x SFP slot (1000Base-SX/LX/BX) compatible with 100Base-FX. The switch also supports PoH power supply up to 95 W (Power over HDBASE-T)
Thanks to its metal housing with IP30 certification, it withstands high temperatures from -40 to +75 °C , making it suitable for heavy-duty operations. The switch's switching capacity is 16 Gbps and its throughput is 11.9 Mpps .
BASIC SPECIFICATIONS
Physical properties:
Ports: 6 x RJ-45 10/100/1000Base-T, 2 x SFP slot (1000Base-SX/LX/BX)
Memory: 4k MAC addresses, 1 Mb buffer
Throughput: 16 Gbps bus, operational 11.9 Mpps (64B) non-blocking
Transmission support: JumboFrame 9 KB
Design: DIN rail, wall-mounted
Power supply: DC 48-54 V (max. 5 A) redundant, with reverse polarity protection function (power supply not included)
Protection: ESD up to 6 kV DC
Operating temperature: -40 to +75 °C
Dimensions: 135 x 86.1 x 56 mm
Weight: 777g
PoE function:
Total power output: 240 W, 802.3bt, 802.3af, 802.3at, PoH (Power over HDBASE-T)
Number of injectors: 4 x up to 90 W (95 W for PoH power supply)
Power supply type: End-span / Mid-span
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
