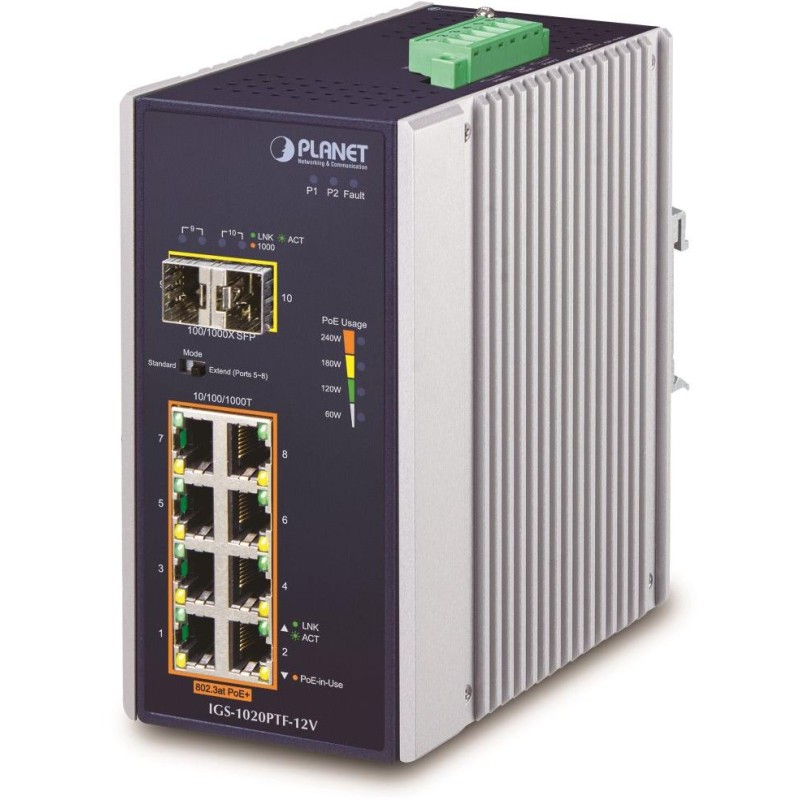

PLANET IGS-1020PTF-12V
The industrial L2 PoE switch offers eight RJ-45 10/100/1000Base-T ports with PoE+ 802.3af/at power support and two SFP slots (1000Base-SX/LX/BX) compatible with 100Base-FX, standard/extend mode (ports 5 to 8).
Thanks to its aluminum housing with IP30 certification, it withstands high temperatures from -40 to +75 °C , making it suitable for industrial operations . The switch's switching capacity is 20 Gbps and its throughput is 14.8 Mpps .
BASIC SPECIFICATIONS
Physical properties:
Ports: 8 x RJ-45 10/100/1000Base-T, 2 x SFP slot (1000Base-SX/LX/BX)
Memory: 8k MAC addresses, 4 Mb buffer
Throughput: 20 Gbps bus, operational 14.8 Mpps (64B) non-blocking
Transmission support: JumboFrame 9 KB
Design: DIN rail, wall-mounted
Power supply: DC 12 - 56 V (max. 6 A) redundant, with reverse polarity protection function (power supply not included)
Protection: ESD up to 6 kV
Operating temperature: -40 to +75 °C
Dimensions: 152 x 106 x 77 mm
Weight: 1164g
PoE function:
Total power output: 240 W IEEE 802.3at
Number of injectors: 8 x up to 30 W
Power supply type: End-span
Advanced features:
circuit protection (prevents power interference between ports)
extend mode (10Mb PoE up to 250 m)
automatic detection of powered devices
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
