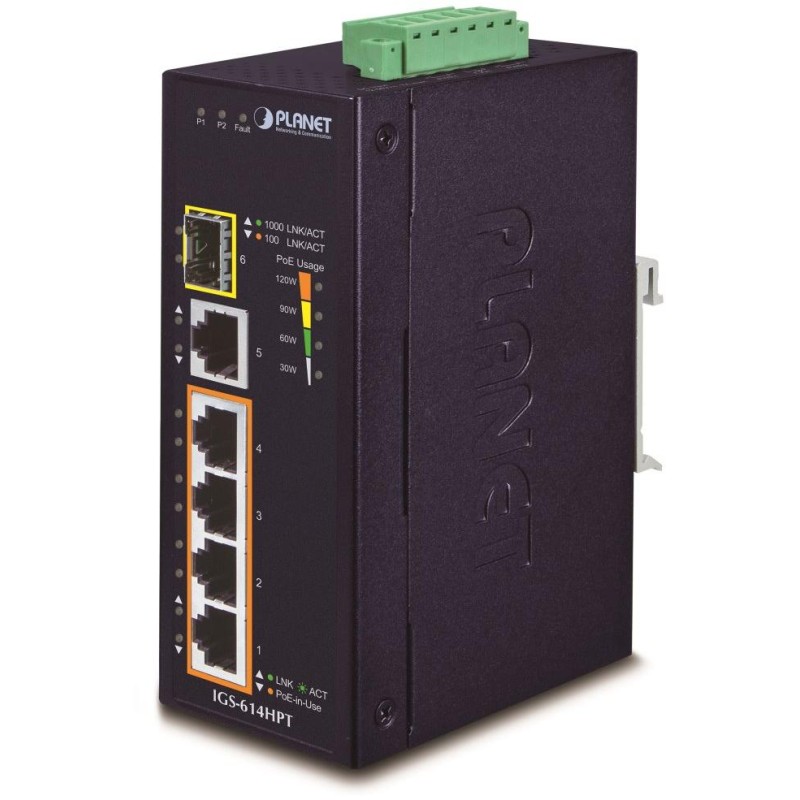

PLANET IGS-614HPT
The industrial switch offers five RJ-45 10/100/1000Base-T ports, four of which support PoE+ power supply up to 36 W per port and 1x SFP slot (1000Base-SX/LX/BX) compatible with 100Base-FX.
Thanks to its metal housing with IP40 certification, it withstands high temperatures from -40 °C to 75 °C, making it suitable for heavy-duty operations. The switch's switching capacity is 12 Gbps and its throughput is 8.93 Mpps .
BASIC SPECIFICATIONS
Physical properties:
Ports: 5 x RJ-45 10/100/1000Base-T, 1 x SFP slot (1000Base-SX/LX/BX)
Memory: 4k MAC addresses, 1 Mb buffer
Throughput: 12 Gbps bus, operational 8.93 Mpps (64B) non-blocking
Transmission support: JumboFrame 9 KB
Design: DIN rail, wall-mounted
Power supply: 12 - 56 V DC (max. 7 A) redundant, with reverse polarity protection function (power supply not included)
Protection: ESD up to 6kV DC
Operating temperature: -40°C - 75°C
Dimensions: 135 x 87 x 50 mm
Weight: 605g
POE function:
Total power output: 120 W IEEE 802.3at
Number of injectors: 4 x up to 36 W
Power supply type: End-span
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by high-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
