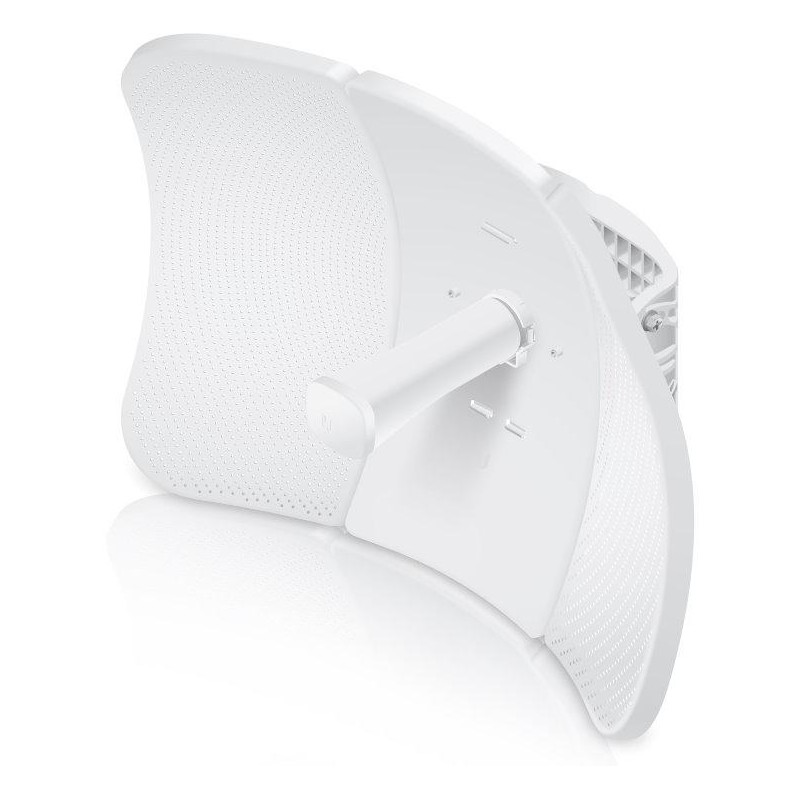

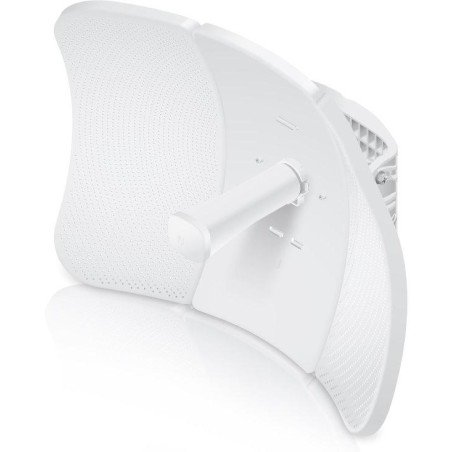

Ubiquiti LiteBeam 5AC Long Range
The antenna system consists of two 26 dBi antennas with vertical and horizontal polarization. The patented InnerFeed technology integrates the entire radio part directly into the radiator, which is covered with highly durable UV stabilized plastic.
LiteBeam 5AC Long Range has a dedicated radio for wireless access to the unit and the ability to configure it in the UNMS app for mobile devices . The UNMS app ( Android , iOS ) also helps with alignment, significantly speeding up installation.
The package contains a gigabit POE injector 24 V/0.3 A.
BASIC SPECIFICATIONS
Ports: 1× GbE RJ-45
Frequency range: 5150–5875 MHz
Gain: 26 dBi
Memory: 64MB
PoE: yes, passive PoE
Dimensions: 512.5 x 385.8 x 258.3 mm
Weight: 1.4 kg
Important notice:
The airOS system is constantly being improved, so we recommend always using the latest version, which you can download from the Ubiquiti website in the Downloads section. At the same time, it is necessary to operate the device in accordance with the General Authorization for the 5 GHz band, use the DFS function and avoid using frequencies used by weather radars, i.e. 5630 and 5645 MHz.
