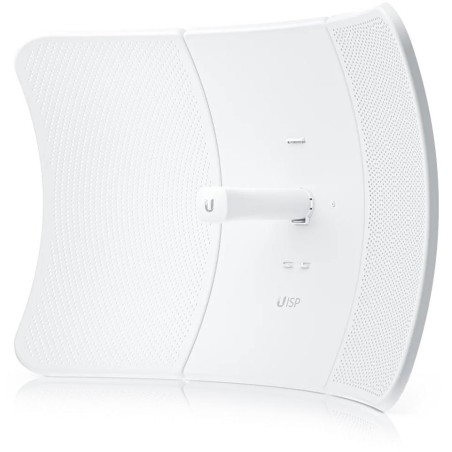

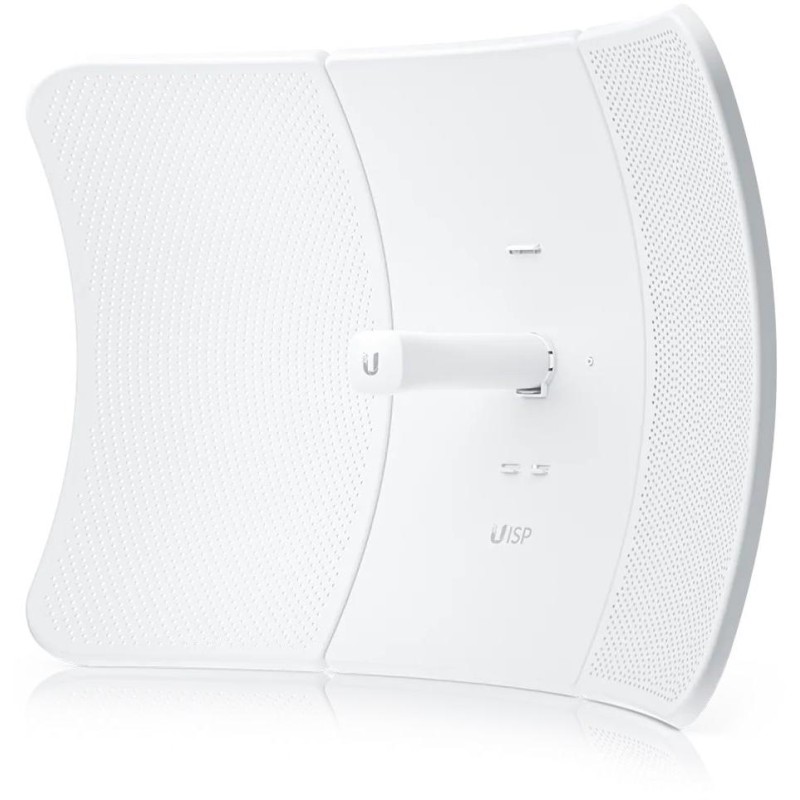

Ubiquiti UISP airMAX LiteBeam AC XR
The airMAX LiteBeam AC 5 GHz XR CPE (LBE 5AC XR) is an outdoor wireless unit designed to provide high-speed connections over extremely long distances , allowing multiple subscribers to be served from a single device. The unit is also equipped with its own high-gain antenna, capable of delivering more than 450 Mbps of throughput in the 5 GHz frequency band.
Function:
- Proprietary airMAX ac chipset
- Very lightweight aluminum construction and UV-resistant polycarbonate
- High gain antenna (29 dBi) with InnerFeed technology
- High-speed connections over extremely long distances
- Integrated GPS
- Connection planning support via ISP Design Center
- Dedicated radio management for quick device setup via UISP Mobile app
- PtMP and PtP modes, airOS operating system
- Management via UISP app: iOS 2.19.2, Android 2.20.2 and later
The package includes a Gigabit power PoE injector 24 V (0.5 A) .
BASIC SPECIFICATIONS
Frequency: 5 GHz (5.15 to 5.85 GHz)
Throughput: 450+ Mbps
Interface: 1x GbE RJ-45, airMAX ac
Gain: 29 dBi
Beam angle:
Horizontal polarization: 5.5° (3 dB) / 7.5° (6 dB)
Vertical polarization: 5.5° (3 dB) / 7.5° (6 dB)
Elevation: 5.5° (3 dB) / 7.5° (6 dB)
PoE: yes, passive (24 V)
Weather resistance: IPX6
Weight: 3.2 kg
Dimensions: 747 x 525 x 347 mm
Important notice:
The system is constantly being improved, so we recommend always using the current version, which you can download from the Ubiquiti website in the Downloads section. At the same time, it is necessary to operate the device in accordance with the General Authorization for the 5 GHz band, use the DFS function and avoid using frequencies used by meteorological radars, i.e. 5630 and 5645 MHz.
Manual (assembly instructions):
https://dl.ubnt.com/qig/lbe-5ac-xr
Datasheet:
https://dl.ui.com/ds/lbe-5ac-xr_ds.pdf
