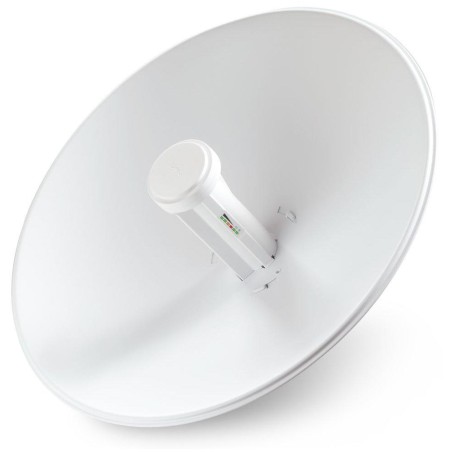

Ubiquiti PowerBeam M2 400
PowerBeam (PBE-M2-400) is a high- performance complete outdoor unit including 18 dBi MIMO 2x2 antenna for the 2.4 GHz band. It is suitable as a client unit or PtP connection . The unit supports throughput up to 150 Mbps .
The PowerBeam 400 uses a new antenna design for greater resistance to interference, has an improved design for easy installation, and the unit material uses GEOMET technology for high corrosion resistance.
For high transmission speeds, the unit uses the 802.11 standard with AirMAX (TDMA) technology to achieve low latencies .
The antenna system consists of two antennas with horizontal and vertical polarization, which use patented InnerFeed technology to achieve the best performance while maintaining a good price.
A big advantage is the ESD/EMP surge protection on both wireless and Ethernet parts up to 24 kV!
The web administration is very simple and clear. You can set, for example:
- AP, client or WDS mode
- Traffic shaping
- Quality of Service
- Transparent bridge or routing between WAN and LAN, without NAT or with NAT
- Signal strength (what should a specific signaling LED correspond to)
- Output power up to 28 dBi
In bridge and WDS mode, the device supports IPv6 transmissions transparently.
The package also includes a 24 V/0.5 A PoE power supply .
BASIC SPECIFICATIONS
Wi-Fi standard: 802.11g/n + airMAX
Antenna: 18 dBi
Ports: 1x 10/100 Ethernet port
Frequency band: 2405 - 2475 MHz
PoE support: yes
Dimensions: 420 x 420 x 289 mm
Important notice:
The AirOS system is constantly being improved, so we recommend always using the latest version, which can be downloaded from the Ubiquiti website in the Downloads section. At the same time, it is necessary to operate the device in accordance with the General Authorization for the 2.4GHz band.
