Ubiquiti CWDM Mux Demux 8 - 8-channel CWDM Mux/Demux, 1450 to 1590 nm, LC connectors

Ubiquiti CWDM Mux Demux 8

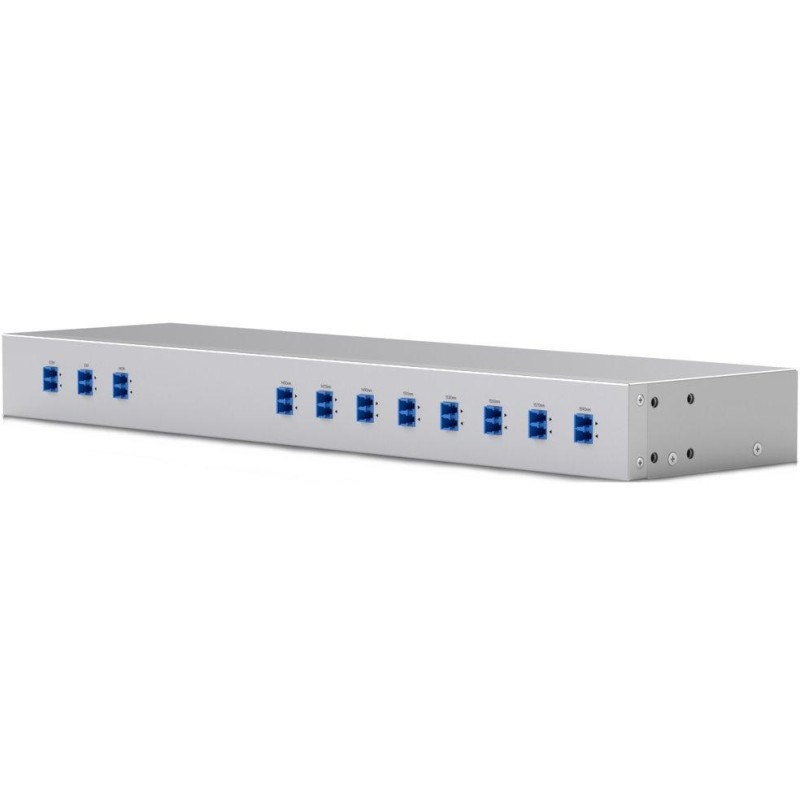

The 8-channel CWDM Mux Demux with a wavelength of 1450 to 1590 nm , designed for rack mounting, increases the capacity of the existing optical infrastructure. There is a duplex LC UPC communication port for connection to another CWDM Mux Demux 8 using a pair of single-mode fiber cables. There is also a duplex LC UPC monitoring port for trouble-free observation with a power meter or optical spectrum analyzer and a Duplex LC UPC expansion port for connection to CWDM Mux Demux 4 to add additional channels.

Key features:

•

• 8 channels with wavelength range 1450–1590 nm

• Compatible with SMF-28e fiber type

• Duplex LC UPC connector for connection to another Mux/Demux device

• Monitoring port for easy performance monitoring and spectrum analysis

• Expansion port for connection to CWDM Mux Demux 4 to add additional channels

• High isolation between channels ensures reliable operation

• Allows power transmission of up to 500 mW

• Durable metal case for rack mounting


BASIC SPECIFICATIONS

Compatibility: USW-Aggregation, USW-Pro-Aggregation

Ports: 8× LC/UPC (1450–1590 nm), 1× LC/UPC communication port, 1× LC/UPC for monitoring, 1× LC/UPC expansion port

Fiber: SMF-28e, length 0.5–1 m

Channel center wavelength: 1450/1470/1490/1510/1530/1550/1570/1590 nm

Min. channel bandwidth: ± 6.5 nm

Isolation: adjacent channel max. 30 dB, non-adjacent channel min. 40 dB

Max. passband ripple: 0.3 dB

Min. directivity: 55 dB

Max. insertion loss: <2.5 dB

Min. return loss: 50 dB

Max. power: 500 mW

Operating temperature: –30 to +75 °C

Dimensions: 442 × 120 × 43.7 mm

Weight: 1400g

Manual (assembly instructions):

Ubiquiti CWDM Mux Demux 8
