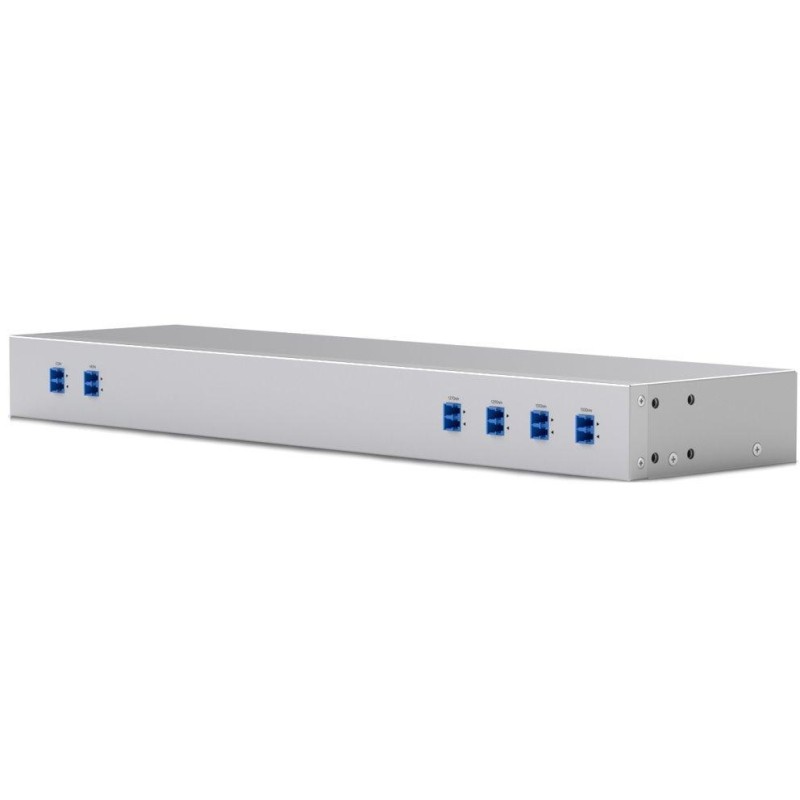

Ubiquiti CWDM Mux Demux 4 - 4-channel CWDM Mux/Demux, 1270 to 1330 nm, LC connectors

Ubiquiti CWDM Mux Demux 4

The 4-channel CWDM Mux Demux with a wavelength of 1270 to 1330 nm , designed for rack mounting, increases the capacity of the existing optical infrastructure. There is a duplex LC UPC communication port for connecting to another CWDM Mux Demux 4 using a pair of single-mode fiber cables. There is also a duplex LC UPC monitoring port for trouble-free observation using a power meter or optical spectrum analyzer.

Key features:

•

• 4 channels with wavelength range 1270–1330 nm

• Compatible with SMF-28e fiber type

• Duplex LC UPC connector for connection to another Mux/Demux device

• Monitoring port for easy performance monitoring and spectrum analysis

• High isolation between channels ensures reliable operation

• Allows power transmission of up to 500 mW

• Durable metal case for rack mounting


BASIC SPECIFICATIONS

Compatibility: USW-Aggregation, USW-Pro-Aggregation

Ports: 4× LC/UPC (1270–1330 nm), 1× LC/UPC communication port, 1× LC/UPC for monitoring

Fiber: SMF-28e, length 0.5–1 m

Channel center wavelength: 1270/1290/1310/1330 nm

Min. channel bandwidth: ± 6.5 nm

Isolation: adjacent channel max. 30 dB, non-adjacent channel min. 40 dB

Max. passband ripple: 0.3 dB

Min. directivity: 55 dB

Max. insertion loss: <1.5 dB

Min. return loss: 50 dB

Max. power: 500 mW

Operating temperature: –30 to +75 °C

Dimensions: 442 × 120 × 43.7 mm

Weight: 1400g

Manual (assembly instructions):
