TINYCONTROL expansion module for LAN controllers, 4x 10A relays for LK3 and LK4

Tinycontrol LANKON-094

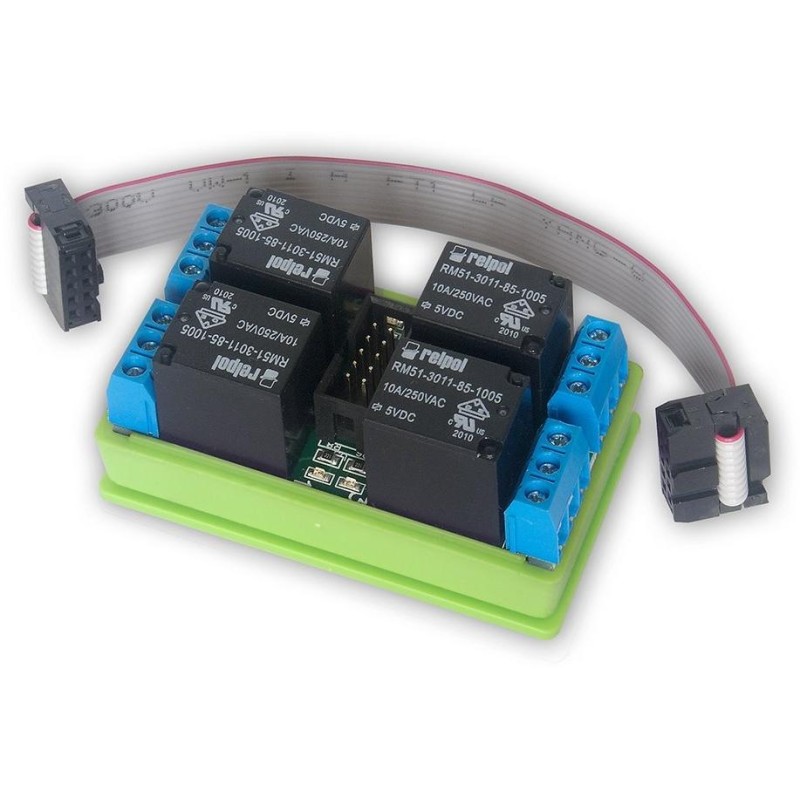

Expansion module for LAN controller containing 4× relays . When connected to the LAN controller, it has the ability to turn on, turn off and reset each of the relays. The main use is to control 4 electrical devices.

BASIC SPECIFICATIONS

Number of relays: 4

relay outputs: C, NO, NC

Contacts: AgSnO2

Rated load current in category AC1: 10 A / 250 V, 20 A / 125 V

Rated load current in category DC1: 10 A / 30 V

Dimensions: 71 × 41.5 × 18 mm

You can find the method of connecting to the LAN controller v3 in the manual .

The delivery includes a 10 cm long control cable with two IDC10 plugs . It also includes a handle with a holder , which allows mounting on a DIN rail .
