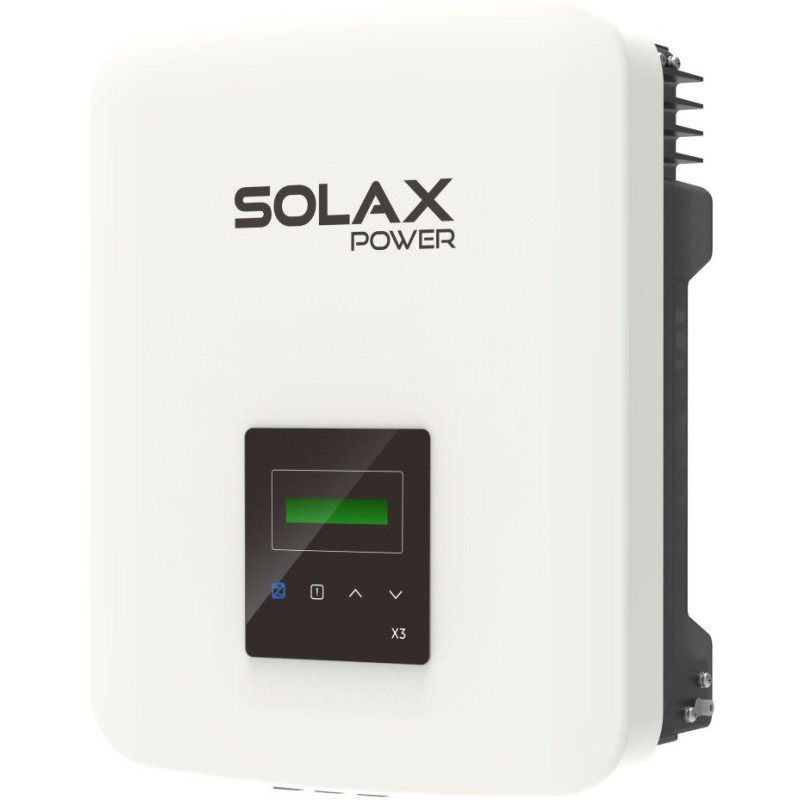

SOLAX X3-MIC-8K-G2 / 8kW / 3-Phase / Grid Inverter / 2x MPPT

SOLAX X3-MIC-8K-G2

3-phase 8 kW grid-tie inverter with dual MPP trackers and high efficiency and wide output voltage range. The X3 Mic G2 series inverter is a commercial or residential solar inverter, designed for homes with solar panels on different sides of the roof. With 2 MPPTs, it can be connected to two separate panel arrays. With IP66 protection , it can be installed outdoors.

High efficiency

•

• Maximum efficiency 98.3%

• Low starting voltage, wide MPPT voltage range

• 200% DC input oversizing, 110% AC output overload (except 15 kW model)

• Built-in MPP scanning for greater efficiency

• Maximum input current 16A DC per string, supporting high-performance solar panels


Safe

•

• SPD protection on both AC and DC

• IP66 protection


Smart

•

• Built-in power management

• Remote setup and upgrade

• 24-hour monitoring and maintenance (optional)

• Intelligent load control – heat pump (requires Adapter Box)

• Multiple monitoring methods, Pocket Wi-Fi/LAN (optional)/4G (optional)


BASIC SPECIFICATIONS

Input

Max. DC input power: 16 kW

Max. DC input voltage: 1000 V

Starting DC input voltage: 150 V

MPPT range: 120-980V

Max. input DC current: 16 A + 16 A

Max. short-circuit current: 20 A + 20 A

Number of MPPTs: 2

Number of strings per MPPT: 1/1

Exit

Rated power of AC output and UPS: 8 kW

Nominal AC mains voltage: 220/380 V, 230/400 V

AC mains output current: 12.2/11.6 A (max. 12.8 A)

Efficiency: 97.8% (98.3% max)

Protection level: IP66

Dimensions: 434 × 342 × 156 mm

Weight: 17 kg
