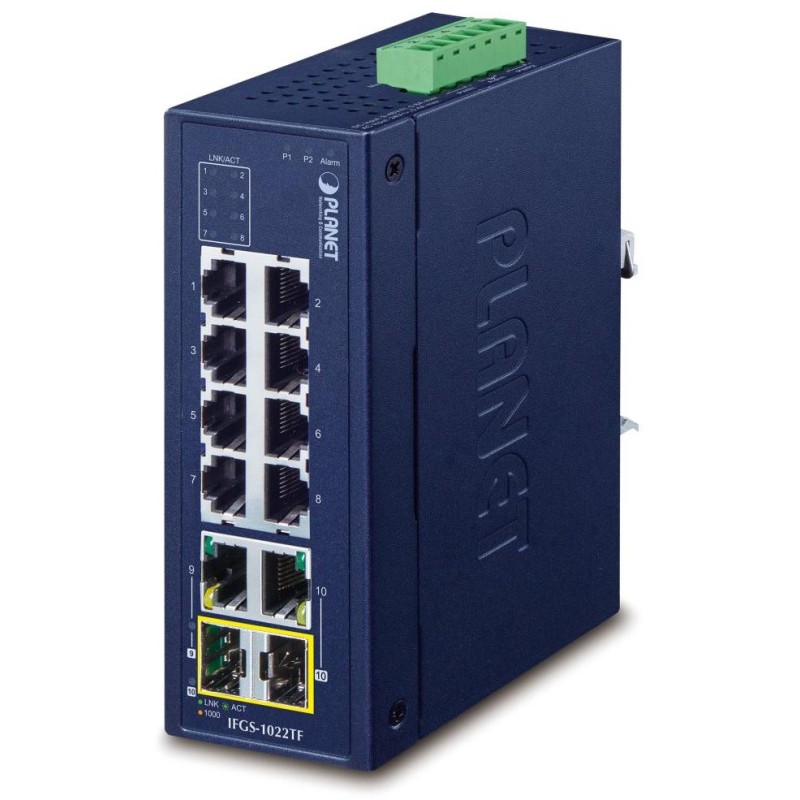

PLANET IFGS-1022TF
Highly durable industrial switch, 8x RJ-45 10/100Base-TX auto-MDI/MDI-X, 2x RJ-45 10/100/1000 Base-T auto-MDI/MDI-X, 2x SFP 1000 Base-SX/LX/BX
Possibility of redundant power supply in the range of DC 9-48 V DC or AC 24 V , IP30 protection, metal design, ESD up to 6 kV, operating temperature -40 to +75 °C , mounting on a DIN rail or directly on the wall.
Industrial Ethernet switches are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply, and frequent shocks.
The IFGS series switches are easily installed on a standard DIN rail or directly on the wall and enable the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
BASIC SPECIFICATIONS
Physical properties:
Ports: 8x RJ-45 10/100Base-TX, 2x RJ-45 10/100/1000 Base-T, 2x SFP 1000 Base-SX/LX/BX
Memory: 16k MAC addresses, 4 Mb buffer
Throughput: 5.6 Gbps bus, 4.16 Mpps operational (64 B)
Design: DIN rail, wall-mounted
Power supply: DC 9-48 V DC or AC 24 V (redundant), connection possible from two different sources (not included), total power consumption up to 7.2 W
Protection: ESD up to 6 kV, reverse polarity protection
Operating temperature: -40 to +75 °C
Dimensions: 135 x 87.8 x 50 mm
Weight: 536g
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
Automatic power adjustment using an algorithm based on cable length:
