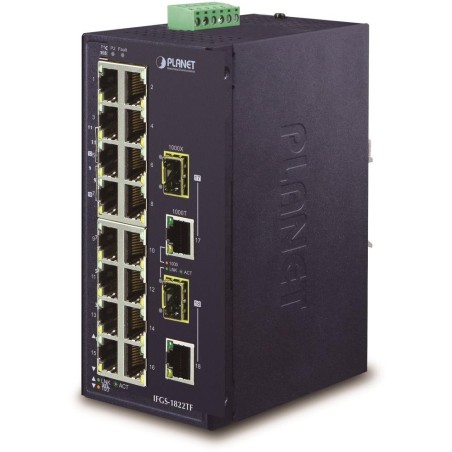

PLANET IFGS-1822TF
Highly durable industrial switch. 16x RJ-45 10/100Base-TX auto-MDI/MDI-X, 2x RJ-45 10/100/1000Base-T auto-MDI/MDI-X, 2x SFP 1000Base-SX/LX/BX
Redundant power supply option in the range of 12-48 V DC, IP30 protection, metal housing, operating temperature -40 to 75 °C.
Mounting on DIN rail or directly on the wall.
Industrial Ethernet switches are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply, and frequent shocks.
The IFGS series switches are easily installed on a standard DIN rail or directly on the wall and enable the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
BASIC SPECIFICATIONS
Physical properties:
Ports: 16 x RJ-45 10/100Base-TX, 2 x RJ-45 10/100/1000Base-T, 2 x SFP 1000Base-SX/LX/BX
Memory: 16k MAC addresses, 4 Mb buffer
Throughput: 7.2 Gbps bus, 5.36 Mpps operational (64B)
Design: DIN rail, wall-mounted
Power supply: 12-48 V DC or 24 V AC (redundant), connection possible from two different sources (not included), total power consumption up to 6.3 W
Protection: ESD up to 6 kV, reverse polarity protection, power connection on the terminal block
Operating temperature: -40 to 75 °C
Dimensions: 152 x 107 x 66 mm
Weight: 300g
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by high-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
Automatic power adjustment using an algorithm based on cable length
