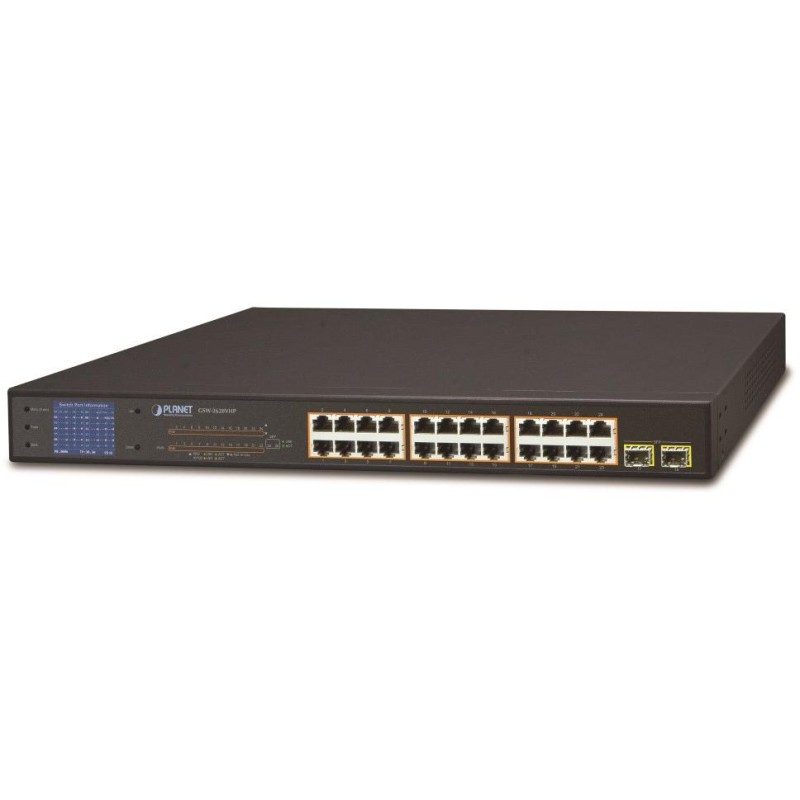

PLANET GSW-2620VHP
24 gigabit 1000Base-T ports with the ability to power other IEEE 802.3at devices, total power 300W; 2x SFP 1000Base-X ports for installing optical modules. Extend mode for connection at 10Mb/s up to 150-200m on UTP depending on the cable used, including PoE power supply. LCD display for power information, port VLAN. ESD protection, internal AC power supply.
This is a 24-port gigabit PoE switch with two optical SFP ports. It allows you to power other devices such as IP cameras, VoIP phones and WiFi access points. The device has a fully permeable 52Gbps fast internal backbone bus. Gigabit interfaces provide additional options for expandability, flexibility and network integration. The LCD display on the front panel informs about the current PoE utilization.
It allows you to connect and power Ethernet devices at a speed of 10Mb/s up to a distance of 250m on classic UTP cabling. 250m is a theoretical maximum depending on the quality of the cabling and connectors, in normal conditions the real distance is 150m. According to our tests, the real distance on a quality Cat 6 cable is 200 meters, on a Cat 5e cable 150 meters +- 10%.
BASIC SPECIFICATIONS
Physical properties:
Ports: 24 x RJ-45 10/100/1000BASE-T + 2 x SFP 1000BASE-X
Memory: 8k MAC addresses
Throughput: 52 Gbps bus, operational 38.7 Mpps (64B)
Transmission support: Frame 9KB
Design: rackmount 1U
Power supply: internal power supply 100-240 V/50-60 Hz AC, total power consumption up to 330 W
Protection: ESD up to 6kV
Operating temperature: 0 - 50 °C
Dimensions: 440 x 233 x 44 mm
Weight: 3500g
POE function:
Total power output: 300 W, IEEE 802.3af, IEEE 802.3at
Number of injectors: 24x up to 30 W
Power supply type: End-span
Advanced features: automatic detection of powered devices
Extended mode 10Mb/s with a range of up to 250m
