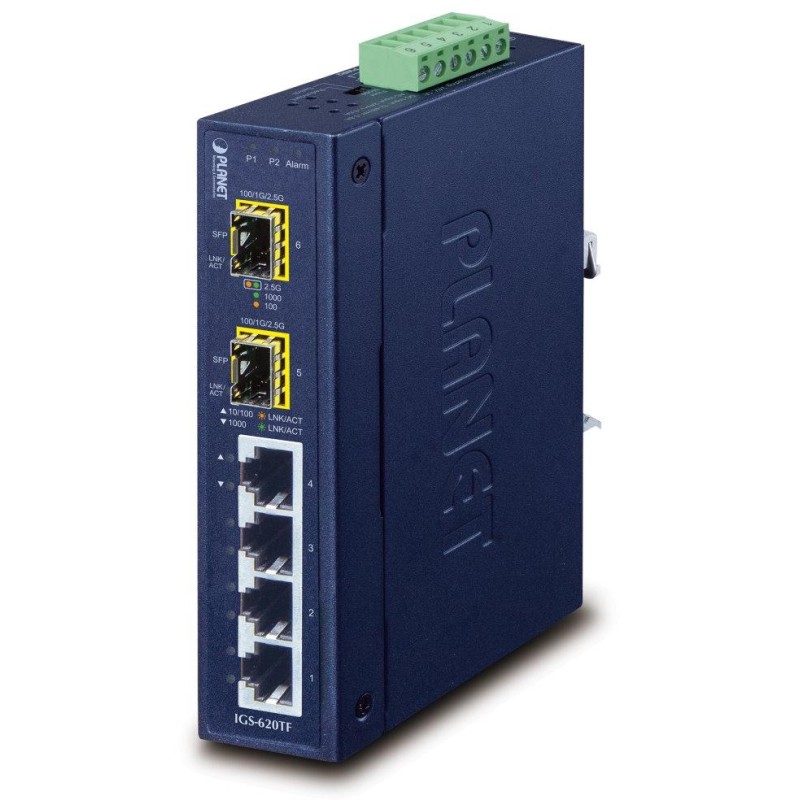

PLANET IGS-620TF
Flexible reliable industrial switch and converter, 4x RJ-45 10/100/1000 Base-T, 2x 2.5G SFP slot for 100/1G/2.5G Base-X modules, DIP switch for mode switching (Switch and Fiber Redundancy).
Surge ESD protection of LAN and power ports up to 6 kV, DIN rail mounting or directly on the wall, redundant power supply in the range of DC 12-48 V or AC 24 V , IP30 protection, metal chassis, operating temperature -40 to +75 °C , upgraded version V2 .
Industrial Ethernet switches are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply and frequent shocks. Extended temperature range version of the series switches.
The IGS series switches are easily installed on a standard DIN rail or directly on the wall, enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
BASIC SPECIFICATIONS
Physical properties:
Ports: 4x RJ-45 10/100/1000 Base-T, 2x 2.5G SFP slot 100/1G/2.5G Base-X
Memory: 4k MAC addresses
Throughput: 18 Gbps bus, operational 13.39 Mpps (64B)
Transmission support: JumboFrame 9kB
Design: DIN rail, wall-mounted
Power supply: redundant DC 12-48 V, AC 24 V AC, total power consumption up to 7.5 W (power supply not included)
Protection: ESD up to 6 kV DC, reverse polarity protection
Operating temperature: -40 to +75 °C
Dimensions: 135 x 87 x 32 mm
Weight: 425g
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
wnload.asm.cz/inshop/prod/Planet/IGS-620TF/IGS-620TF_v2_f.png" alt="IGS-620TF_v2_f.png" />
Presentation (ppsx), usage and changes compared to version 1
Manual
Other downloads
