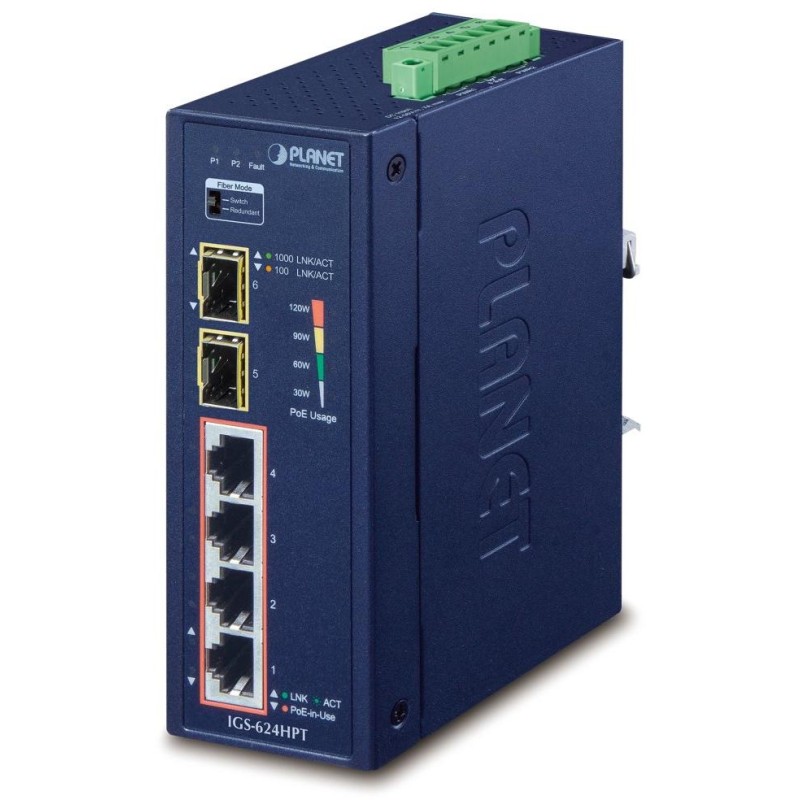

PLANET IGS-624HPT
Flexible industrial switch and converter with PoE+ (802.3af/at), 4x RJ-45 port 10/100/1000 Base-T , 2x 1G SFP Base-SX/LX/BX, 4x PoE+ injectors ( up to 36 W/port ) with a total power of 120 W (at DC 48-56 V power supply).
Unmanaged, support for 802.1Q VLAN and CSMA/CD protocol, redundant power supply DC 12-56 V, IP40 protection , metal housing, operating temperature -40 to +75 °C , fanless (without fans), LED indication of PoE usage, DIP switch (switch/redundant mode) , alarm output (power failure), overvoltage ESD protection up to 6 kV, mounting on DIN rail or directly on the wall, upgraded version V2 .
Using the integrated DIP switch, the IGS-624HPT can be configured as a 6-port Gigabit Ethernet switch or as a 4+2 redundant mode switch. In this mode, it provides fast link backup for highly critical applications and supports auto-recovery function. If the link on the destination port of a packet goes down/fails, the switch will forward the packet to the other port of the backup pair.
Version v2: Increased PoE output to 36 W/port, SFP 100/1000X autodetection, 4k MAC addresses, IP30 to IP40 protection, smaller dimensions and lower weight, 9k JumboFrame support, simplified DIP switch (2 states).
Industrial Ethernet switches are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply and frequent shocks . Extended temperature range version of the series switches.
The IGS series switches are easily installed on a standard DIN rail or directly on the wall , enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
As a PoE switch, it allows you to directly power up to 4 end devices according to the IEEE 802.3af/at standard, making it an ideal element for applications with reduced power options.
BASIC SPECIFICATIONS
Physical properties:
Ports: 4x RJ-45 port 10/100/1000 Base-T, 2x 1G SFP Base-SX/LX/BX
Memory: 4K MAC addresses, JumboFrame 9 kB
Throughput: 12 Gbps bus, operational 8.93 Mpps
Design: DIN rail, wall-mounted
Power supply: DC 12-56 V, redundant, power consumption up to 7.02 W (130.6 W at full PoE load), connection possible from two different sources (not included in the package)
Protection: ESD up to 6 kV contact, reverse polarity protection
Operating temperature: -40 to +75 °C, humidity up to 90%
Dimensions: 135 x 87 x 32 mm
Weight: 657g
PoE function:
Total power output: max. 120 W (depending on power supply), IEEE 802.3at/af
Number of injectors: 4x up to 36 W
Power supply type: End-span
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
