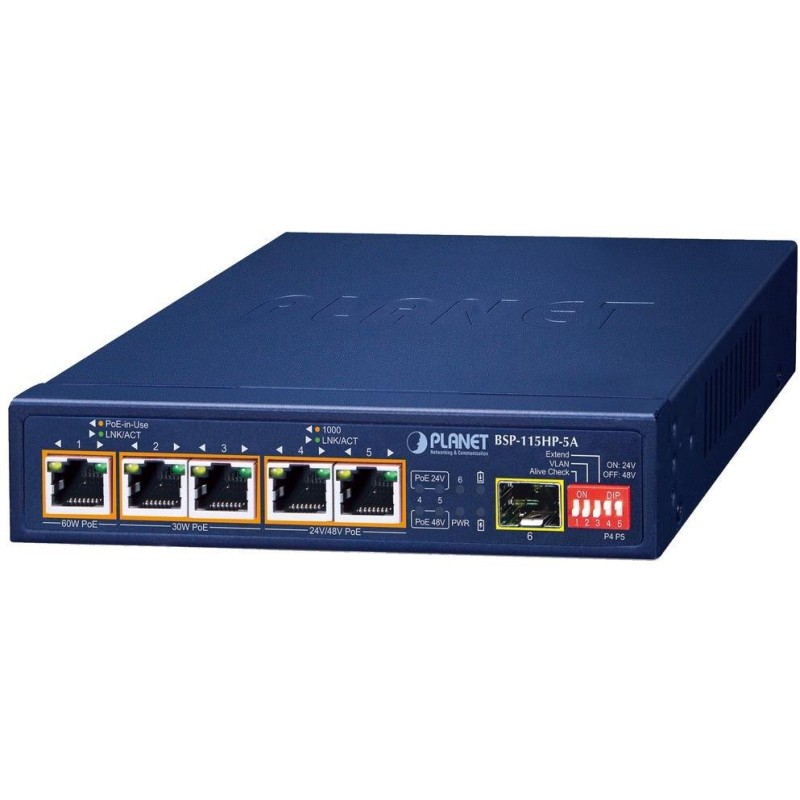

PLANET BSP-115HP-5A
Solar powered PoE switch with integrated MPPT controller offers 5× RJ-45 10/100/1000 Base-T with PoE power supply (1× PoE++ 802.3bt, 2× 802.3at, 2× 802.3at or passive 24 V) , 65 W PoE budget, DIP switch for mode switching and 1× SFP 100/1000 Base-X.
1/2 pins for PV (photovoltaic) panels + some types of generators (hydro or wind), pins 3/4 for DC power, pins 5/6 for battery charging/discharging . There is a DIP switch on the front to configure PoE and VLAN . The DIP switch on the back is used to set the battery type and voltage .
ESD protection up to 4 kV (contact), up to 8 kV (air), temperature sensor (detection -20 to +100 °C), IP30 protection (metal housing), fanless, wall or table mounting, operating temperature -20 to +65 °C .
Solar PoE switch that supports simultaneous use of solar (PV), DC and battery power. The energy obtained from the solar panel is stored in a 12 or 24 V battery. Then, when neither solar nor DC power is available, the battery is used to power the switch and connected devices.
This solution provides the ability to power connected active devices, such as IP cameras, switches, converters or Wi-Fi units, all the time and without dependence on the power grid. The application is therefore suitable for providing surveillance in the environment of parks, forests, cottages or large agricultural and industrial areas. Thanks to the uninterrupted power supply, it can also be used as a means of building telecommunication points for local Internet providers.
Battery management:
- Supports lithium (Lithium, Li-Fe) and lead-acid (Lead-acid, Pb) batteries, optional
- Input power (PV IN): min. voltage 15–27 V DC (12V battery), 32–45 V DC (24V battery), max. current 5 A, power up to 135 W (for 12V battery, 225 W for 24V battery), support DC power 15–24 V (12V battery) or 32–36 V (24V battery)
- MPPT (Maximum Power Point Tracking) charge controller
- Reverse current protection (prevents the backflow of electrical current into the photovoltaic panel)
- Overcurrent protection and reverse polarity protection (for battery and charging electrodes)
BASIC SPECIFICATIONS
Physical properties:
Ports: 1× RJ-45 10/100/1000 Base-T with PoE++, 2× RJ-45 10/100/1000 Base-T with PoE+, 2× RJ-45 10/100/1000 Base-T with PoE+ or 24 V (passive), 1× SFP Base-X
Memory: 2K MAC addresses, 2.5 Mb buffer
Throughput: 12 Gbps bus, operational 8.92 Mpps (64B)
Design: desktop, wall-mounted
Power supply (switches): via photovoltaic panels (DC 15–45 V), from battery (DC 12/24 V) or via DC power supply (pin 3/4) 15–24 V (12V battery) or 32–36 V (24V battery), total power consumption up to 75.6 W (full load with PoE power supply)
Power requirements:
Solar panel: 15-27V DC (12V battery), 32-45V DC (24V battery)
Batteries: 12/24 V, lithium (Li-Fe) and lead-acid (Pb) batteries
DC power supply: 15-24 V (12V battery) or 32-36 V (24V battery)
Output power: 1× PoE++ RJ-45, 2× PoE+ RJ-45, 2× passive PoE or PoE+ RJ-45, 6-pin terminal block (1× input for PV panel, 1× power input/output for 12/24V battery, 1× input for DC power supply )
Protection: ESD up to 4 kV contact, 8 kV air (ethernet)
Operating temperature: -20 to +65 °C
Dimensions: 159 × 142 × 34 mm
Weight: 690g
PoE function:
Total power output: up to 65W, 802.3af/at/bt, 802.3af/at, passive PoE (24V)
Number of injectors: 1× up to 60 W, 2× up to 35 W, 2× up to 25 W (at DC 24 V, passive PoE) or up to 35 W (at DC 48 V, active PoE)
Power supply type: End-span
Advanced features:
protection (of a circuit) against interference between ports
automatic detection of powered device
detection of activity of powered devices, if there is no response, it can be restarted by disconnecting the power supply (PD alive check)
Extended mode 10 Mbps with a range of up to 250 m
The Switch has a manual mode switch:
- Alive check - Monitors the status of connected devices in real time, once a device stops responding, restoring power will bring it back into operation.
- VLAN - Ports are logically separated from each other, in this mode unwanted multicast and broadcast storms can be prevented.
- Extend - The switch powers devices up to 250 m with reduced throughput of 10 Mbps per port.
- PoE 24/48 V - Switching voltage on ports 4 and 5. This is switching between 24V passive PoE and 48V active (PoE+ 802.3at).
