TINYCONTROL expansion module with 1wire, I2C and OLED display for LAN controller v3

Tinycontrol module for LAN controller v3

Expansion module with 1wire, I2C and 0.92" OLED display (separate product) for LAN controller v3.

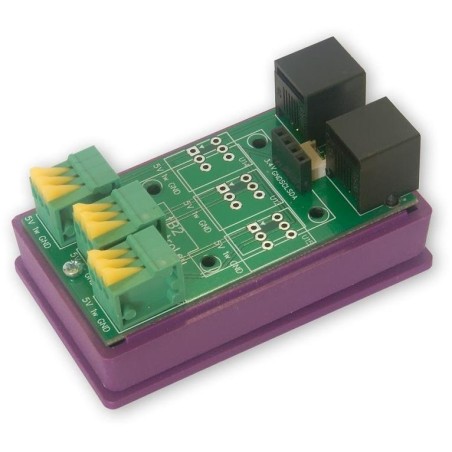

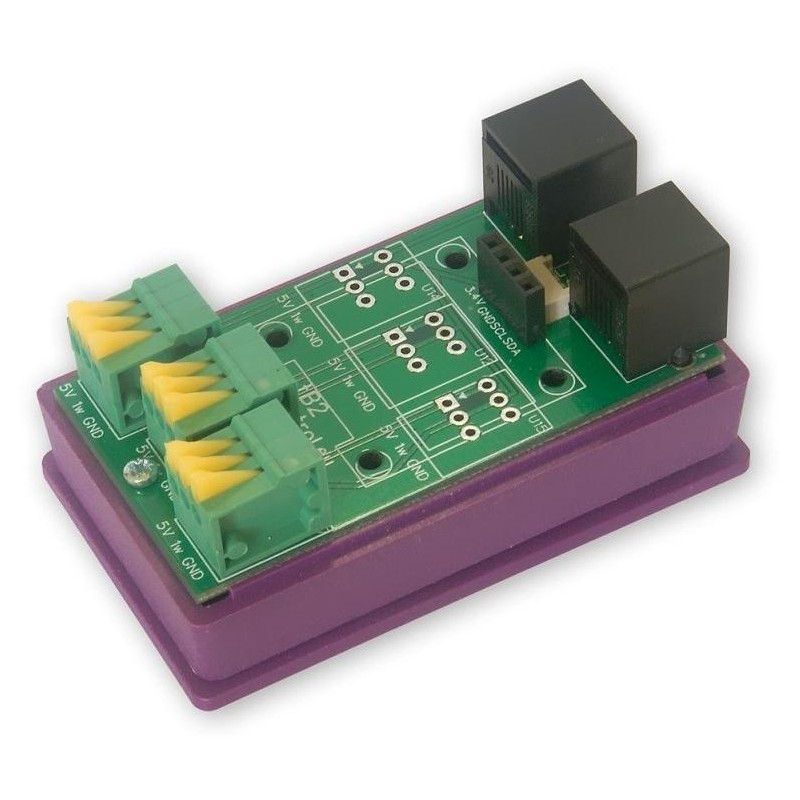

The board has spring terminals for convenient connection of DS18B20 sensors (wire cross-section 0.5 mm ² ) and a micro JST 1.25 mm connector for the I2C bus (e.g. for connecting a BME280 sensor).

Communication with the LAN controller via I2C or 1-Wire bus. For this purpose, the board should be connected to the INP6 connector in the LAN controller using a 6-wire cable with an RJ-12 plug, the second socket can be used to connect another 1-wire or I2C sensor. There is a marking on the board for connecting DS18B20 sensors to the 1-Wire bus.

Features:

•

• The display module is easy to install and replace.

• support for communication with Lan Controller v3 (I2C bus)

• optional DIN mounting

• the second connector can be used to connect additional sensors


BASIC SPECIFICATIONS

Interface: 2× RJ-12 (I2C/1-Wire), 1× I2C micro (1.25 mm), 3× 3pin connector, 1× 4pin connector for display

Power supply: from bus

Dimensions: 66 × 36 × 18 mm

The display is not included in the package! You can find it in related products under the code NJSGWL0032 .
